Description

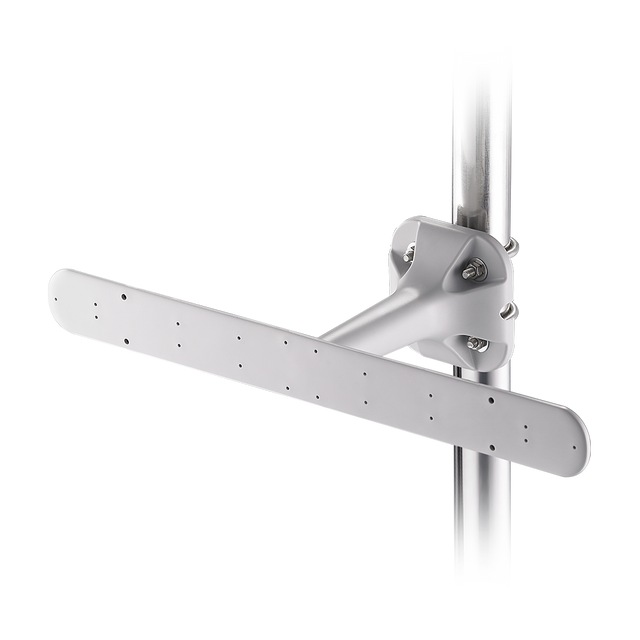

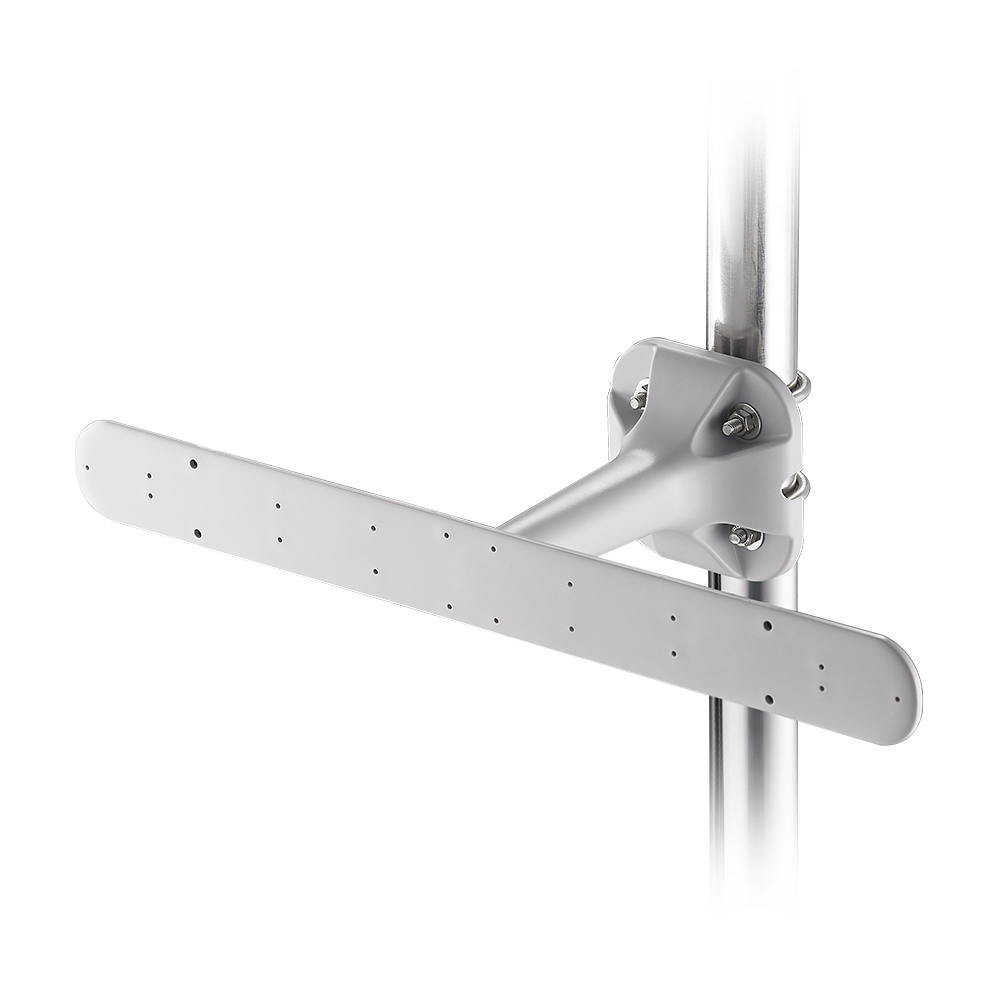

Omnidirectional outdoor 4G/LTE wideband performance in a flat, compact blade form factor, designed to deliver efficient, stable coverage across global cellular bands for demanding field deployments.
Built for telematics and cellular communication systems that require reliable uplink and downlink performance, especially where long cable runs and harsh environments are common. The rugged IP67 waterproof housing supports use in outdoor (and indoor) environments, and the bracketed design enables straightforward wall or pole mounting.
This antenna is also recommended for Non-Terrestrial Network (NTN) devices operating on Band 255 (Global), Band 256 (Europe), and Band 23 (North America).
Typical Applications
- Global telematics
- Transportation
- Remote monitoring applications
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 500cm
- Cable Type: CFD-200
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Cellular Technologies: 4G/LTE
Location: External
Mounting: Wall Mount, Pole Mount
Type: Single
Frequency: 698-960 MHz, 1710-2690 MHz (700-3000 MHz listed)
Impedance: 50Ω
Polarization: Linear
VSWR: 1.5
Gain (Max): 4 dBi
IP Rating: IP67
Dimensions: 425.5*45*157mm E x ternal Wall and Pole Mount Antenna Robust Design for All Weathe
Weight: 250g
Connector Type: SMA(M)
Cable Length: 5 Meter (5000mm)
Cable Type: CFD-200
