Description

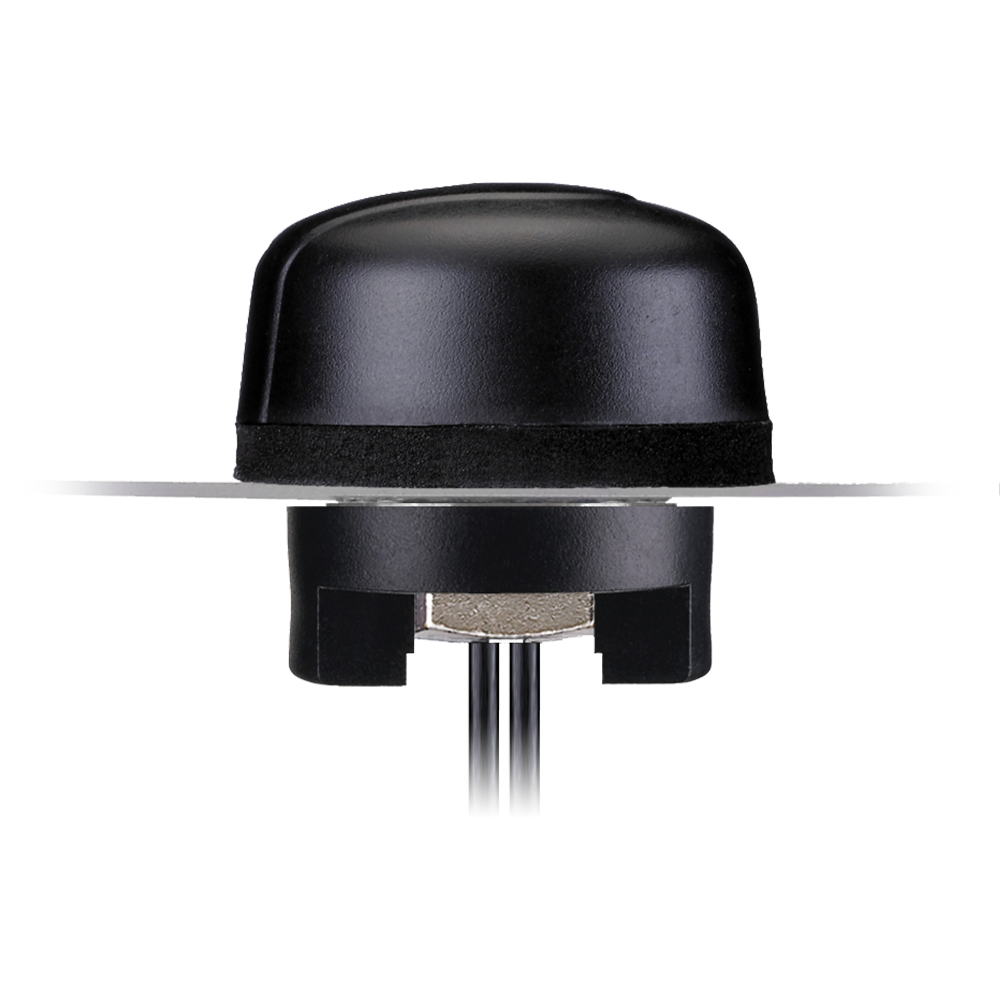

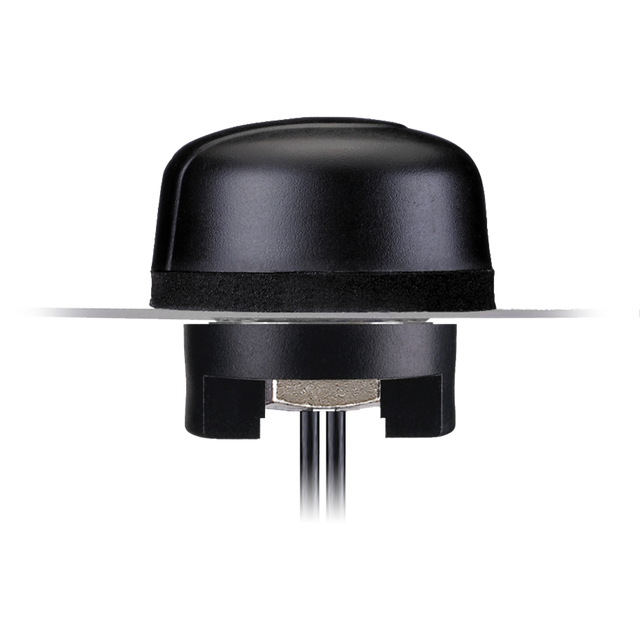

The Hercules MA104 is a compact, rugged combination antenna that integrates GPS/Galileo positioning and penta-band cellular connectivity in a single low-profile housing. Designed for reliable asset tracking and remote monitoring, it features a durable UV-resistant enclosure that helps withstand vandalism and direct impact while maintaining a streamlined roof-mount form factor.
- 2-in-1 design: Combined GNSS (GPS/Galileo) + cellular for simplified deployments
- Low-profile housing: 29mm height helps meet roof-mounted height restrictions and reduces snag risk
- Rugged enclosure: UV-resistant PC housing with IP65 protection
- Flexible mounting: Can be installed on metal or non-metal structures due to the integrated metal ground-plane base
Technical Specifications
Operating Temperature: -40°C to +85°C
Cellular Technologies: 3G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP65
Impedance: 50 Ohms
Dimensions: 49mm*49mm*29mm IP65 Rated Enclosure RoHS and REACH Compliant
Weight: 200g
Cellular (AMPS/GSM/PCS/DCS/3G)
Frequency: 824-896, 880-960, 1710-1880, 1850-1990, 1920-2170 MHz
Polarization: Linear
Impedance: 50 Ohms
VSWR: <3.5:1
Max. Input Power: 10 Watts max.
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
GNSS (GPS/Galileo Active)
Frequency: 1575.42MHz ± 1.023MHz
Polarization: RHCP
Impedance: 50 ohm
VSWR: 2.0 Max
GPS/GALILEO Patch Gain: 2.0dB Passive Gain @ Zenith; -1.0dBi Gain @ 10 degrees elevation
Axial ratio: 3.0 dB max
Input Voltage: Min:1.8V Typ. 3.0V Max: 5.5V
Total Gain @ Zenith: 25dBic, 30dBic, 32dBic
Current Consumption: 6mA, 12mA, 30mA
Noise Figure: 2.7dB, 3.0dB, 3.7dB
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
