Description

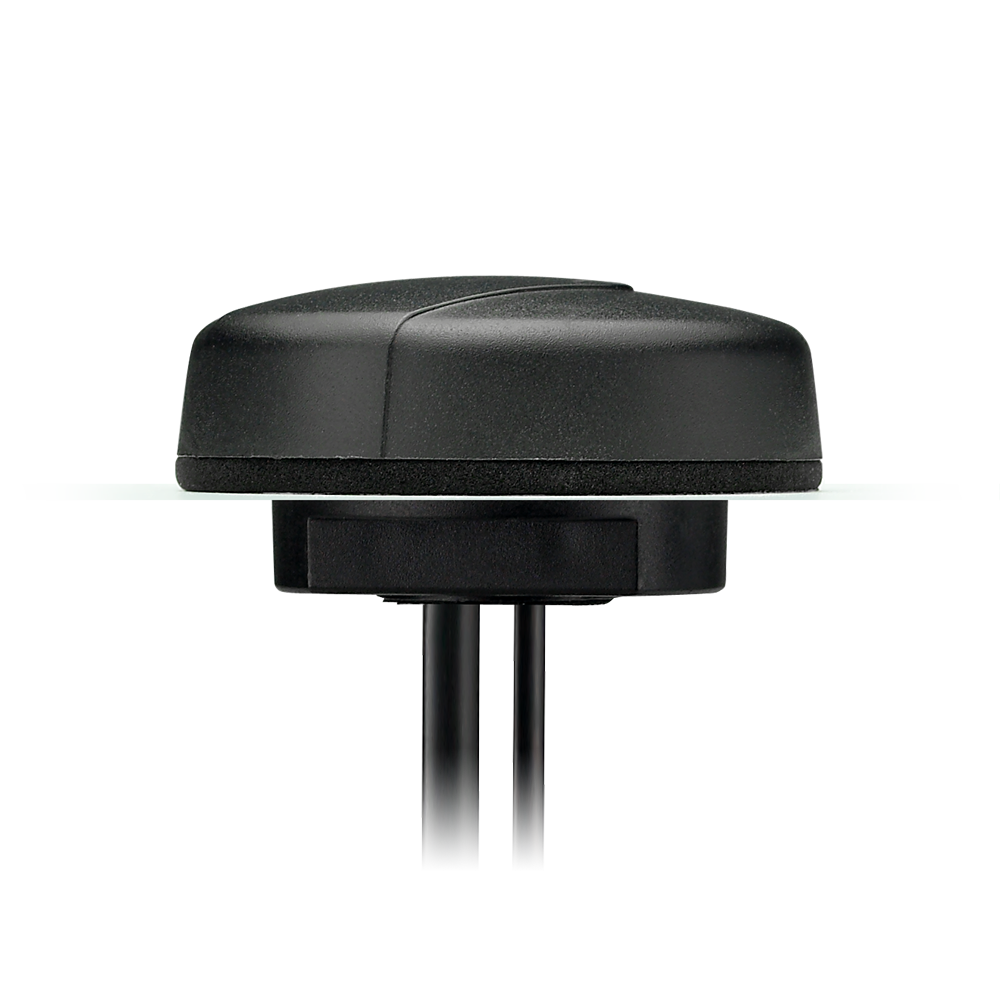

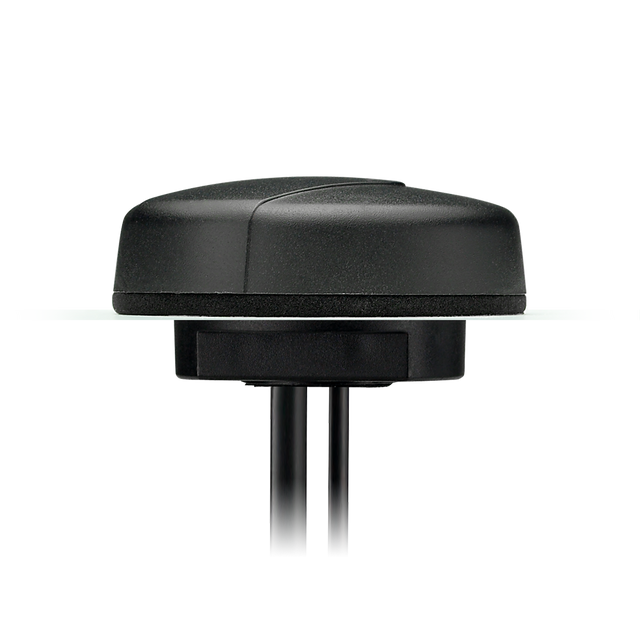

The Ultima MA111 is an extremely low-profile 2-in-1 combination antenna that integrates GNSS (GPS/GLONASS/Galileo/BeiDou) and cellular connectivity in a single rugged, permanent-mount housing for professional telematics deployments.
Designed to mount and couple to the metal structure it attaches to, it supports reliable performance in demanding environments. The robust waterproof enclosure helps protect against moisture and exposure, and the closed-cell foam with double-sided adhesive is designed to provide a long-lasting seal and accommodate slight surface curvature to reduce the risk of water ingress around the mounting hole.
- 2-in-1 combination design: GNSS + cellular in one low-profile package
- Rugged housing: UV and vandal resistant construction
- Waterproof enclosure: suited for humid or harsh environments
- Ideal use cases: asset tracking, smart metering, digital signage, and marine/humid installations
Connections
1x Multiband GNSS (GPS/GLONASS/BeiDou/Galileo)
1x 2G/3G Cellular 824MHz - 2170MHz
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 3G
Location: External
Mounting: Screw Mount, Permanent Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Impedance: 50Ω
VSWR: 2:1
Dimensions: 55*55*20mm Waterproof IP67 Rated RoHS and REACH Compliant
Weight: 210g
GNSS (GPS/GLONASS/BeiDou/Galileo)
Frequency: 1561-1602 MHz
Polarization: RHCP
Impedance: 50Ω
Return Loss: <-10dB
Total Gain: 27dB at 3.0V
Connector Type: SMA(M) Straight
Cable Length: 300cm
Cable Type: RG-174
Cellular (2G/3G)
Frequency: 824MHz - 2170MHz
Peak Gain: 2dBi
Gain (Max): 5.7
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
Connector Type: SMA(M) Straight
Cable Length: 300cm
Cable Type: CFD-200
