Description

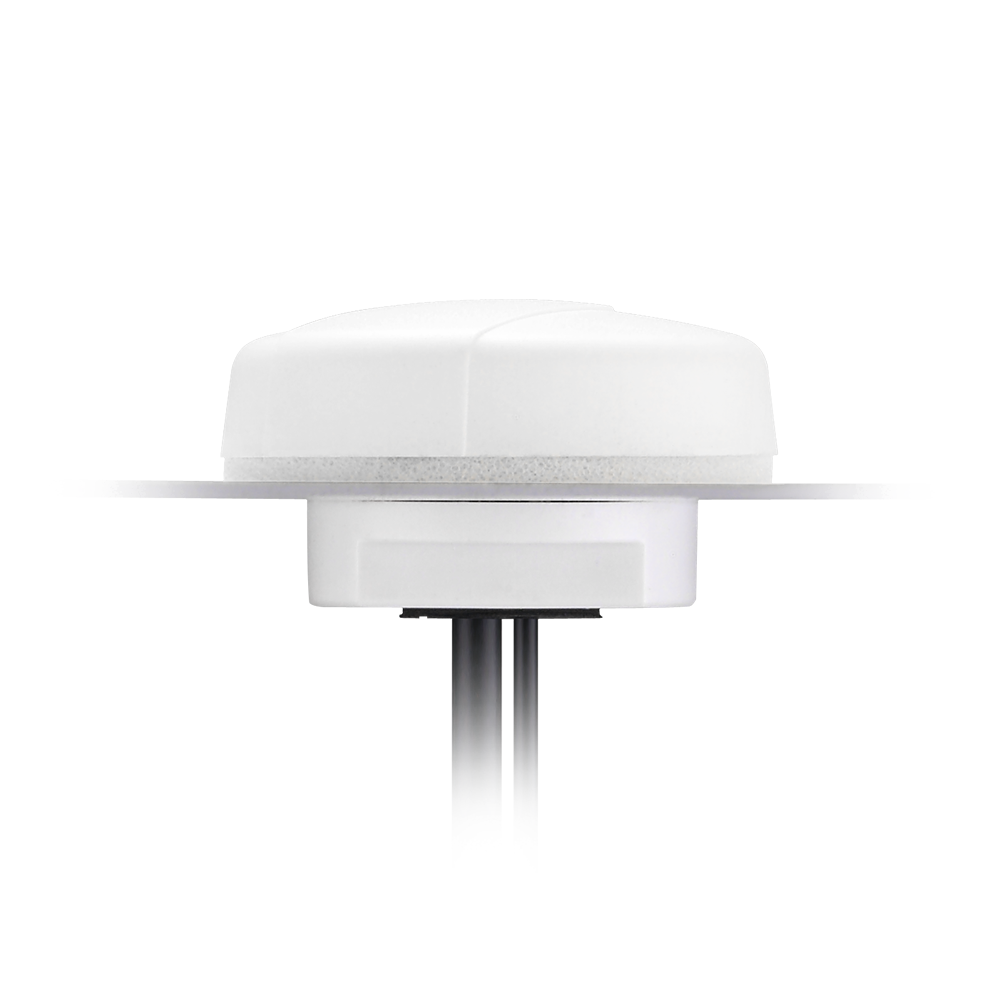

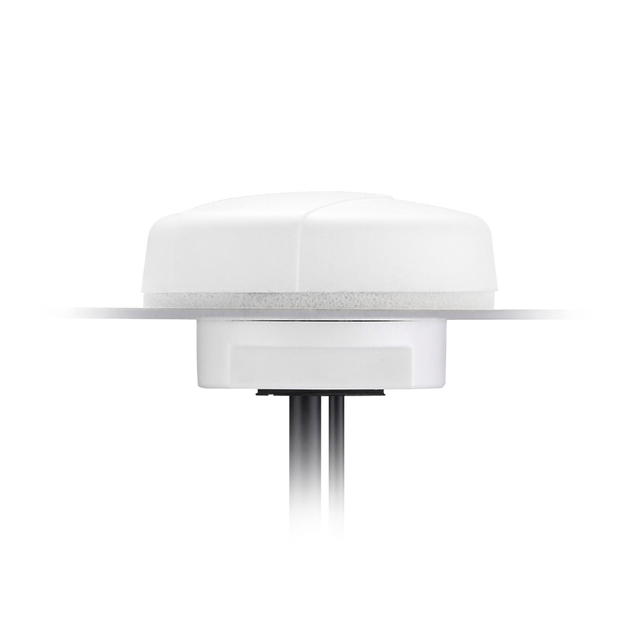

Ultima MA111 is a super low-profile, permanent-mount combination antenna that integrates GNSS and cellular connectivity in a single rugged housing. Designed for professional telematics deployments, it is built to couple to metal mounting surfaces for reliable performance while keeping a discreet footprint.
The robust ABS enclosure and hardware are UV and vandal resistant, and the waterproof sealed design helps protect installations exposed to moisture and harsh environments. Typical use cases include vehicle and asset tracking, smart metering, and other outdoor or industrial deployments where a durable permanent mount is required.
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 3G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Dimensions: Diameter: 55mm, Height: 30mm
Weight: 0.21Kg
GNSS (GPS/GLONASS/BeiDou/Galileo)
Frequency: 1561, 1575.42, 1602 MHz
Polarization: RHCP
Impedance: 50Ω
Return Loss: <-10dB
LNA Gain @3.0V (Typ.): 30.11dB (1561MHz), 32.39dB (1575.42MHz), 28.37dB (1602MHz)
Connector Type: SMA Male
Cable Length: 300cm
Cable Type: RG-174
Cellular (2G/3G)
Frequency: 824MHz - 2170MHz
Gain (Max): 2
VSWR: 2:1
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
Connector Type: SMA Male
Cable Length: 300cm
Cable Type: CFD-200
