Description

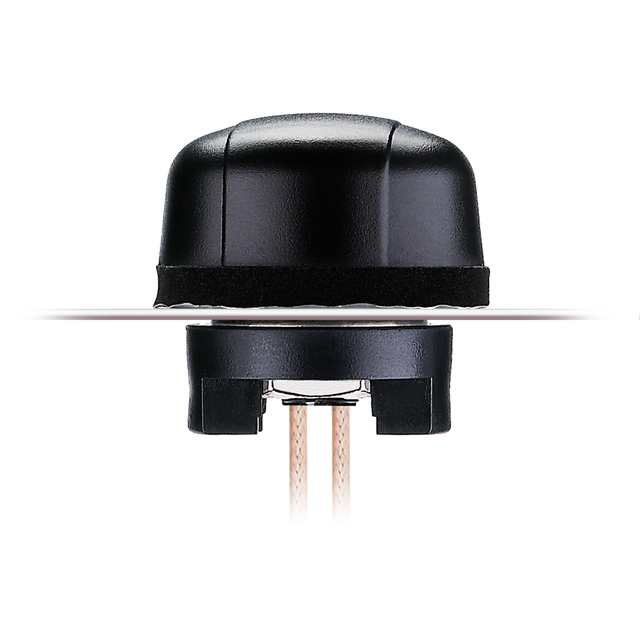

Hercules MA120 is a low-profile, heavy-duty permanent thread-mount antenna designed for external installations that need reliable short-range ISM-band connectivity. Its rugged polycarbonate housing is UV resistant and built to withstand harsh environments, making it well suited for utility and industrial deployments.
The sealed base helps protect against water ingress at the mounting point, and the compact form factor supports stable performance across a variety of mounting environments and ground-plane conditions.
- Rugged, low-profile enclosure for demanding installations
- Designed for external use on assets and equipment
- Optimized for smart metering and mesh network deployments
Connections
1x ISM 450 MHz
1x ISM 868 MHz
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: External
Mounting: Screw Mount
Type: Combination
IP Rating: IP65
Dimensions: 49mm*49mm*28.5mm
Weight: 140g
ISM450
Frequency: 450 MHz
Return Loss (min.): 10 dB
Peak Gain: 3.91 dBi
Average Gain: -3.27 dBi
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni-directional
VSWR: 2:1
Max Input Power: 5W
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: RG-316
ISM868
Frequency: 868 MHz
Return Loss (min.): 10 dB
Peak Gain: 1.11 dBi
Average Gain: -4.52 dBi
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni-directional
VSWR: 2:1
Max Input Power: 5W
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: RG-316
