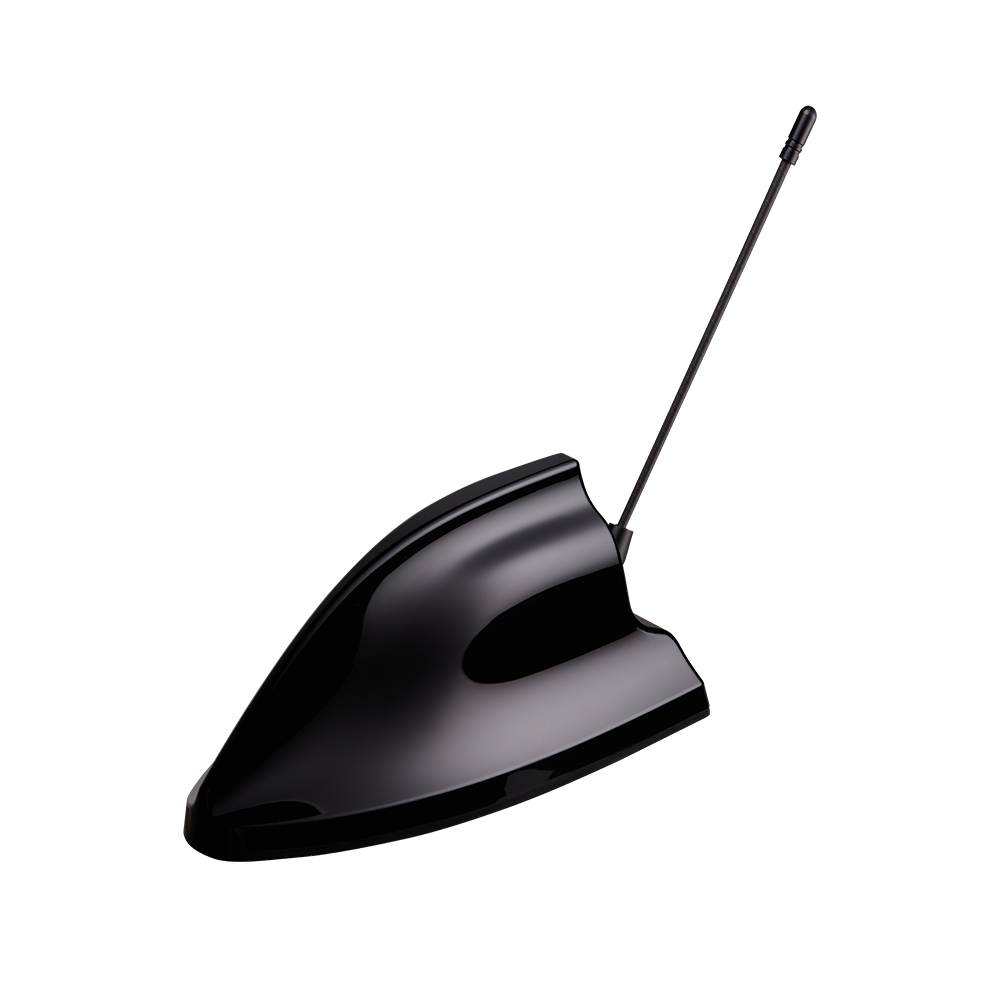

MA1290.K.LBICGRT.001 Antenna External MIMO 5G, GNSS, Wi-Fi, AM/FM, VHF/UHF screw mount 7-in-1 Raptor III Shark Fin for Transportation and Fleet Management, Autonomous Driving and Robotics, FirstNet, Emergency Services

This 7-in-1 shark-fin style combination antenna integrates multi-network connectivity into a single low-profile vehicle-roof solution. It supports active GNSS for positioning, multiple cellular elements for wide-area connectivity, dual-band Wi-Fi for local data links, broadcast AM/FM reception, and a whip-based VHF/UHF/LMR/TETRA path for specialist radio systems.

• All-in-one roof-mounted design: reduces the need for multiple separate antennas.
• Automotive-ready form factor: intended for direct vehicle-roof mounting with a single-hole installation approach.
• Multi-network coverage: designed for transportation, fleet systems, and connected vehicle platforms requiring cellular, GNSS, and Wi-Fi in one enclosure.

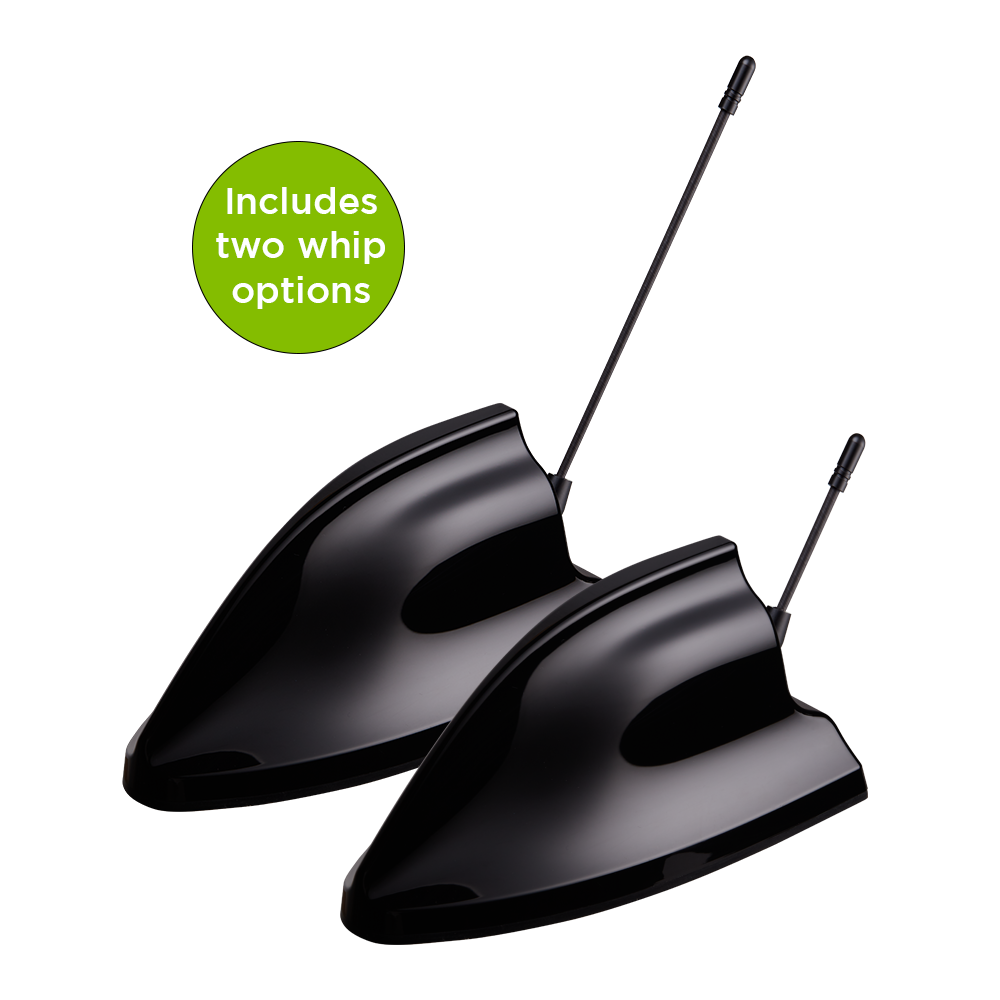

• Specialist communications support: includes a whip solution to address regional VHF/UHF/LMR/TETRA requirements depending on whip used.

Connections

1x Active GPS/GLONASS/BeiDou/Galileo L1/B1/E1
2x Worldwide 5G/4G MIMO
2x 2.4 GHz/5.8 GHz Dual-Band Wi-Fi MIMO
1x Active AM/FM
1x VHF/UHF/LMR/TETRA 700-900MHz (Depending on Whip used)

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO, Whip
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: 190 x 95 x 92mm Cable: 3m RG-174 Cable and TGC-1.5DS Connector: SMA(M), RP-SMA(M
Weight: 972g

GNSS (Active)

Standards: GPS/GLONASS/BeiDou/Galileo (L1/B1/E1)
Frequency: 1561-1602 MHz
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 2.0:1
Peak Gain (dBi): 2.8-3.7
Connector Type: SMA(M)
Cable Length: 300cm

5G/4G Cellular MIMO (2x)

Standards: 5GNR/4G (fallback 3G/2G possible where not accessible)
Frequency: 617-960, 1427-2690, 3300-5000 MHz
Impedance: 50Ω
Polarization: Linear
Max Input Power: 10W
Radiation Pattern: Omni directional
Connector Type: SMA(M)
Cable Length: 300cm

Wi-Fi Dual-Band MIMO (2x)

Standards: Wi-Fi (2.4GHz / 5.8GHz)
Frequency: 2400-2500, 5150-5850 MHz
Impedance: 50Ω
Polarization: Linear
Max Input Power: 10W
Radiation Pattern: Omni directional
Connector Type: RP-SMA(M)
Cable Length: 300cm

AM/FM (Active)

Frequency: 535-1605 kHz (AM), 88-108 MHz (FM)
FM LNA Gain @12V: 15dB
Connector Type: SMA(M)
Cable Length: 300cm

VHF/UHF/LMR/TETRA (Whip)

Frequency: 135-900 MHz (coverage depends on whip used)
Polarization: Linear - Vertical
Impedance: 50Ω
VSWR (max.): 3.8:1
Efficiency (typ.): 30%
Peak Gain (typ.): 1.6 dBi
Average Gain (typ.): -5 dB
Return Loss: -11.5 dB
Cable Type: TGC-200
Cable Length: 300cm
Connector Type: Mini UHF(M)
