Description

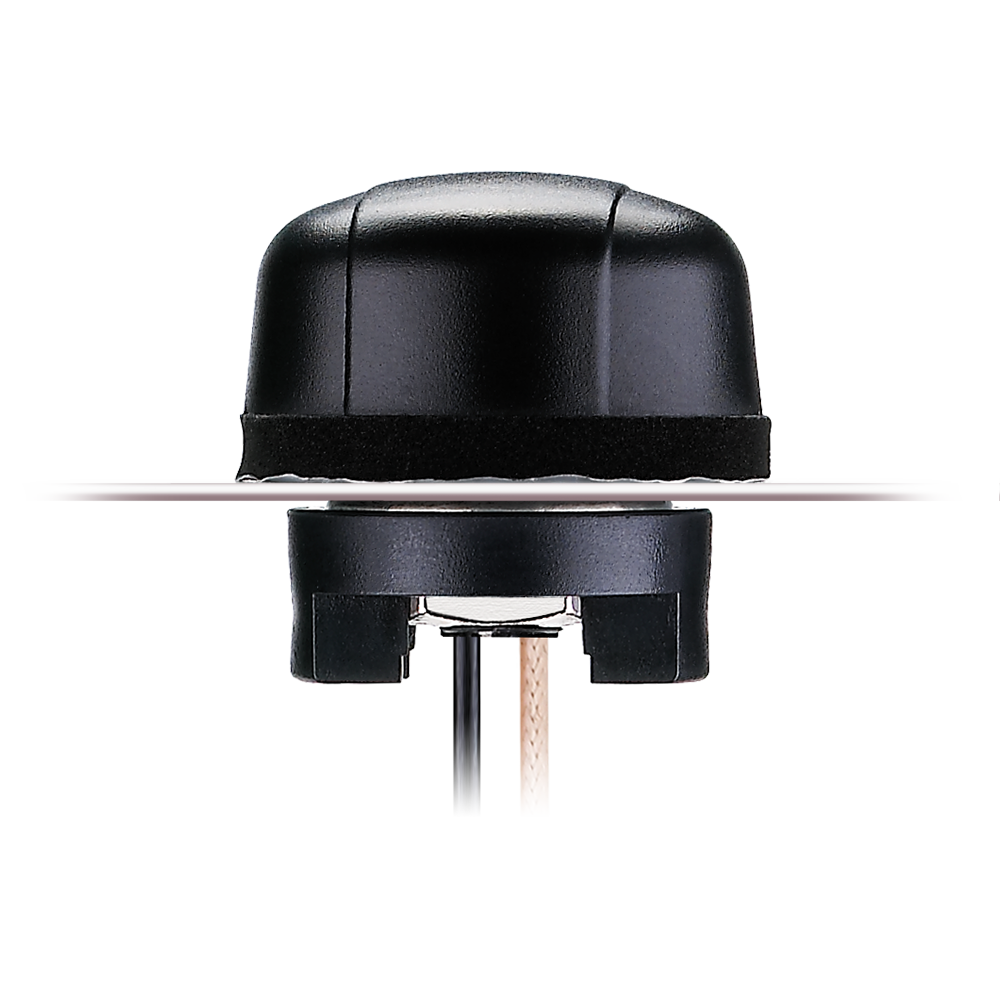

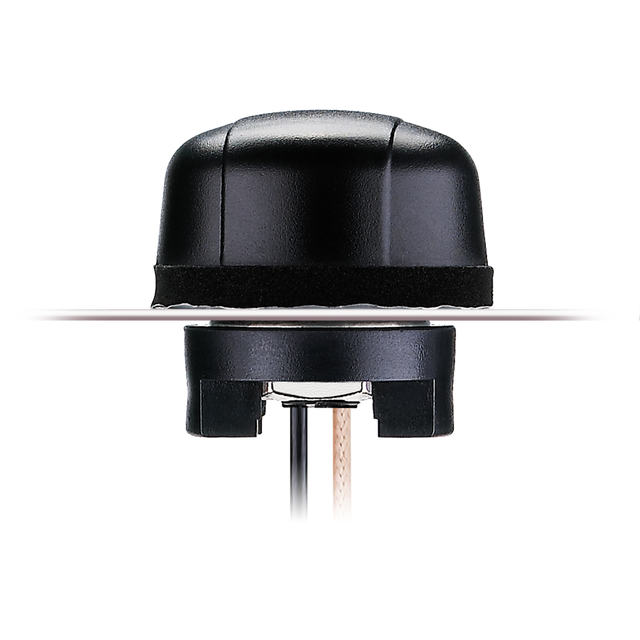

The Hercules MA130 is a compact, low-profile 2-in-1 solution that combines active GNSS (GPS/GLONASS/Galileo) with an 868MHz ISM-band antenna for reliable positioning and sub-GHz connectivity in remote monitoring deployments.
- Optimized GNSS performance: Designed to improve satellite visibility and tracking accuracy, particularly in challenging environments such as urban canyons.
- Stable 868MHz performance: Wide bandwidth design supports consistent operation across typical ISM allocations.
- Rugged external enclosure: UV and vandal resistant polycarbonate housing with an IP65-rated enclosure for demanding outdoor assets and vehicles.
Connections
1x GPS/GLONASS/Galileo 1574~1606MHz
1x ISM Band 868MHz (850-880MHz)
Installation / Environmental
Corrosion 5% NaCl for 48hrs - Nickel plated steel base and thread
Temperature Range -40°C to +85°C
Thermal Shock 100 cycles -40°C to +85°C
Humidity Non-condensing 65°C 95% RH
Shock (Drop Test) 1m drop on concrete 6 axes
Cable Pull 8 Kgf
Recommended Torque Setting for Mounting 24.5N·m
Maximum Torque Setting for Mounting 29.5N·m
Ingress Protection IP65
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: ISM
Type: Combination
IP Rating: IP65
Dimensions: 48*48*29mm
Impedance: 50 Ohms
Weight: 140g (200mm cable length)
GPS/GLONASS/Galileo (Active GNSS)
Frequency: 1574~1606MHz
Impedance: 50 ohm
VSWR: 2.0 Max
GPS/GALILEO Patch Gain @ Zenith: -1.4dBi Passive Gain @ Zenith
GLONASS Patch Gain @ Zenith: -1.3dBi Passive Gain @ Zenith
Out Band Rejection: fo = 1575.42MHz; fo ± 30 MHz 5dB Min.; fo ± 50 MHz 20dB Min.; fo ± 100 MHz 25dB Min.
Input Voltage: Typ. 2.5~5.5V
Total Gain @ Zenith: 27dB typical at 3.0V
Current Consumption: 10mA typical at 3.0V
Noise Figure: 1.3dB typical
Connector Type: SMA(M)
Cable Length: 20cm
Cable Type: RG-174
ISM Band 868MHz
Frequency: 868 MHz (minimum return loss of -10dB from 850MHz to 880MHz)
Max VSWR: 2:1
Max. Return Loss (dB): -10
Polarization: Linear
Impedance: 50 Ohms
Max Input Power: 5 Watts
Peak Gain: 3.98 (0.2m cable, in free space); 4.51 (0.2m cable, on 30x30cm ground plane)
Connector Type: SMA(M)
Cable Length: 20cm
Cable Type: RG316
