Description

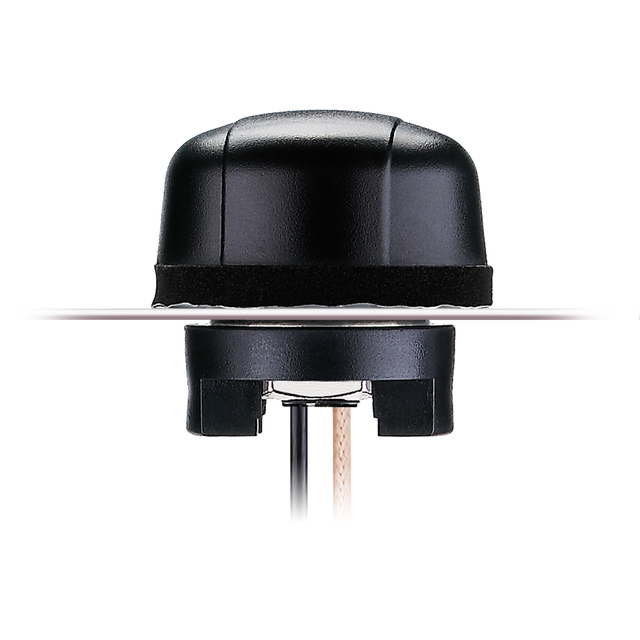

The Hercules MA131 is a rugged 2-in-1 external antenna solution that combines satellite navigation and 915 MHz ISM-band connectivity in a single low-profile housing. It is designed for reliable performance on vehicles and outdoor assets, supporting tracking and monitoring systems that need consistent positioning and robust wireless links.
- 2-in-1 combination design: Supports GNSS reception and 915 MHz ISM-band operation in one compact antenna.
- Built for harsh environments: Rugged polycarbonate enclosure designed to withstand impact and outdoor hazards.
- Improved GNSS reliability: Optimized to track multiple satellite constellations, helping maintain location performance in challenging environments such as dense urban areas.
- Interference resilience: Integrated front-end filtering helps protect GNSS performance near out-of-band transmissions.
Typical use cases: asset tracking, remote monitoring, vehicle telematics, and outdoor equipment connectivity.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: ISM
Type: Combination
IP Rating: IP65
Dimensions: 48*48*29mm
Weight: 140g (200mm cable length)
ISM Band 915MHz
Frequency: 902-928 MHz (915 MHz nominal)
Polarization: Linear
Impedance: 50 Ohms
Max VSWR: 2:1
Max. Return Loss (dB): -10
Max Input Power: 5 Watts
Peak Gain: 4.32 dBi (on the 30x30cm ground plane, 0.2m cable length)
Connector Type: SMA(M)ST
Cable Length: 20cm
Cable Type: RG316
GNSS (GPS/GLONASS/Galileo)
Frequency: 1574~1606MHz
Polarization: RHCP
Impedance: 50 ohm
VSWR: 2.0 Max
Total Gain @ Zenith: 27dB typical at 3.0V
Input Voltage: Typ. 2.5~5.5V
Current Consumption: 10mA typical at 3.0V
Noise Figure: 1.3dB typical
GPS Patch Gain @ Zenith: -1.4dBi Passive Gain @ Zenith
GLONASS Patch Gain @ Zenith: -1.3dBi Passive Gain @ Zenith
Connector Type: SMA(M)ST
Cable Length: 20cm
Cable Type: RG-174
