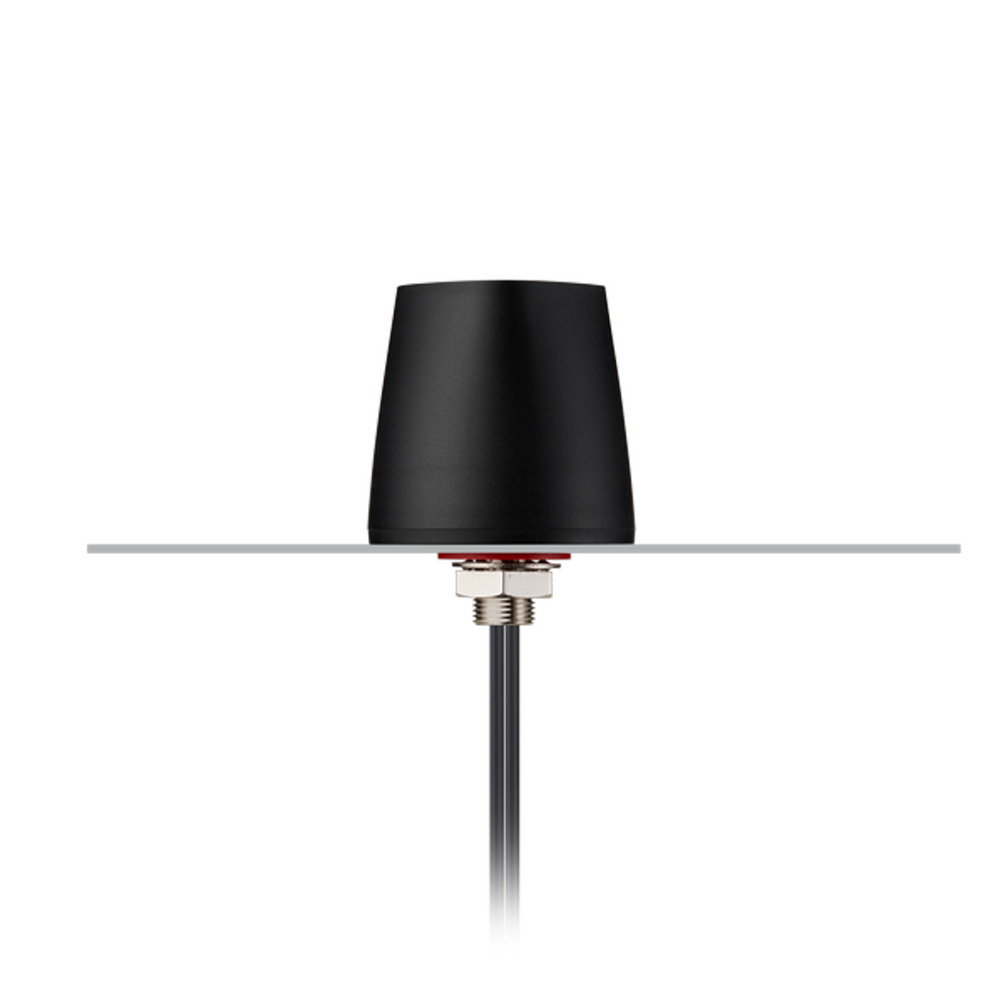

MA147.A.BC.006 Antenna Outdoor External 5G, Wi-Fi permanent mount Olympian II 2-in-1 for Smart Metering and Remote Monitoring, Digital Signage, Transportation and Telematics

Olympian II is a compact 2-in-1 permanent-mount antenna that combines wideband 5G/4G cellular coverage with dual-band Wi-Fi to help maintain dependable connectivity on vehicles and outdoor assets.

• 2-in-1 combination design: cellular + dual-band Wi-Fi in a single compact housing
• Rugged outdoor durability: IP67-rated enclosure with UV-resistant ABS for long service life
• Flexible mounting: designed for permanent installation where space is limited
• No ground plane required for installation flexibility

Connections

1x Cellular Antenna
1x Dual-band Wi-Fi® Antenna

Installation / Environmental

The Olympian II is ideal for external use on vehicles and outdoor assets requiring Cellular and Wi-Fi® connectivity.

The antenna can be mounted on metal and plastic structures but if the lower frequency bands are required, it functions best when mounted on a metal ground-plane. The antenna does work well with short cable lengths below 1m on plastic structures; a minimum of 1m cable lengths is recommended for stable antenna performance. When mounted on a ground-plane, it functions well at all frequencies with cables up to 3 meters in length.

The IP67 rated enclosure is made from a durable, UV resistant ABS material that makes it resistant to vandalism. An integrated rubber O-ring under the enclosure prevents water ingress under the antenna. It is mounted from the inside of the user device enclosure and the small thread allows for installation in situations where space is minimal.

Note: Compatible with mounting on a metal enclosure; however, it is not recommended for situations where the cable will be positioned inside of an enclosure.

Technical Specifications

Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: External
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Impact Rating: IK10
Dimensions: 50mm Diameter x 48.5mm Cables and Connectors Customizable RoHS & REACH Compliant
Weight: 100g

5G/4G Cellular

Frequency: 617~698, 698~806, 824~960, 1427~1518, 1710~2200, 2490~2690, 3300~4200 MHz
Impedance: 50Ω
Polarization: Linear
Max. Input Power: 10W
Radiation Pattern: Omni-Directional
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: TGC-1.5DS

Wi-Fi (Dual-Band)

Frequency: 2400~2500, 5150~5850 MHz
Impedance: 50Ω
Polarization: Linear
Max. Input Power: 10W
Radiation Pattern: Omni-Directional
Connector Type: RP-SMA(M)
Cable Length: 100cm
Cable Type: TGC-1.5DS
