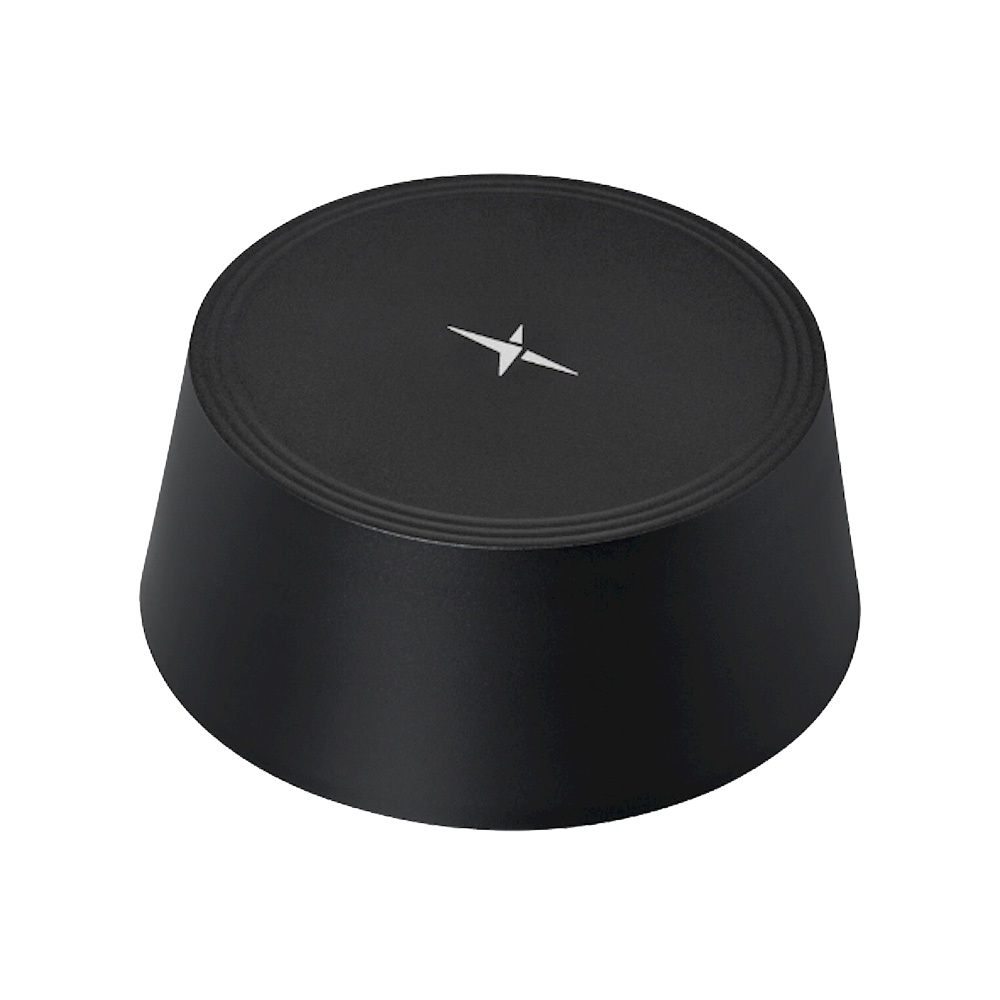

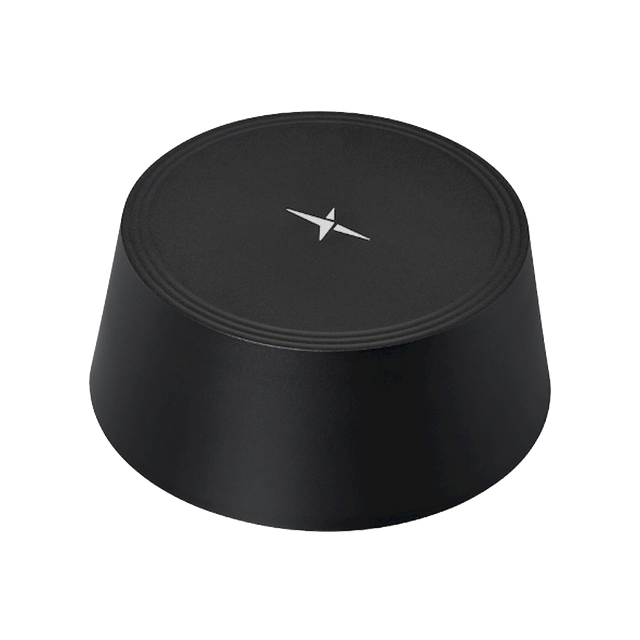

MA1555.A.001 Antenna External Router Low-Profile MIMO 5G, GNSS, Wi-Fi 6E/7 screw mount SynergyX 5-in-1 IP67 for Autonomous Driving, Precision Positioning for Robotics, Precision Agriculture, Inventory Management & Container tracking

The SynergyX 5-in-1 is a low-profile, permanent-mount antenna system built for high-performance router deployments where reliable cellular, Wi-Fi, and precise positioning are all required in a single rugged enclosure.

It integrates active multi-band GNSS for high-precision positioning and timing, plus dedicated MIMO elements for wideband 5G/4G and Wi-Fi to support robust, future-ready connectivity.

• 5-in-1 combination design: cellular + Wi-Fi + GNSS in one housing
• High-precision GNSS coverage: supports major global satellite constellations and augmentation systems
• Rugged outdoor-ready design: IP67 waterproof enclosure
• Designed for routers: optimized for next-generation router connectivity

Typical applications include: Autonomous Driving, Precision Positioning for Robotics, Precision Agriculture, Inventory Management & Container tracking, Telematics & Asset Tracking, Timing Accuracy Synchronization.

Connections

2x 5G/4G MIMO 600-6000MHz
2x Wi-Fi® MIMO 2.4/5.8/7.125 GHz (Including Wi-Fi® 6)
1x Multiband GNSS

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Impedance: 50Ω
VSWR: 2:1
Dimensions: Ø161.3mm * 67mm Staggered RG-174 with SMA(M) / RP-SMA(M) conn
Weight: 535g

5G/4G MIMO (2x)

Frequency: 600-6000 MHz
Standards: 5GNR / 4G / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Impedance: 50Ω
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 30cm
Cable Type: RG-174

Wi-Fi MIMO (2x)

Frequency: 2.4/5.8/7.125 GHz
Standards: Wi-Fi 6, Wi-Fi 7
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 30cm
Cable Type: RG-174

GNSS (Active, Multiband)

Frequency: 1176.45-1602 MHz
Standards: GPS/QZSS L1/L2/L5/L6, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2a/B2b/B3, NAVIC L5, SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS)
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 2:1
Gain (Max): 4.04 dBi
Input Voltage: +1.8 to +5 VDC
Current Draw (typical): < 20 mA
Connector Type: SMA(M) / RP-SMA(M)
Cable Length: 30cm
Cable Type: RG-174
