MA1555.W.001 Antenna External Low-Profile Router 5G, GNSS screw mount SynergyX 5-in-1 for Autonomous Driving, Precision Positioning for Robotics, Precision Agriculture, Inventory Management & Container tracking

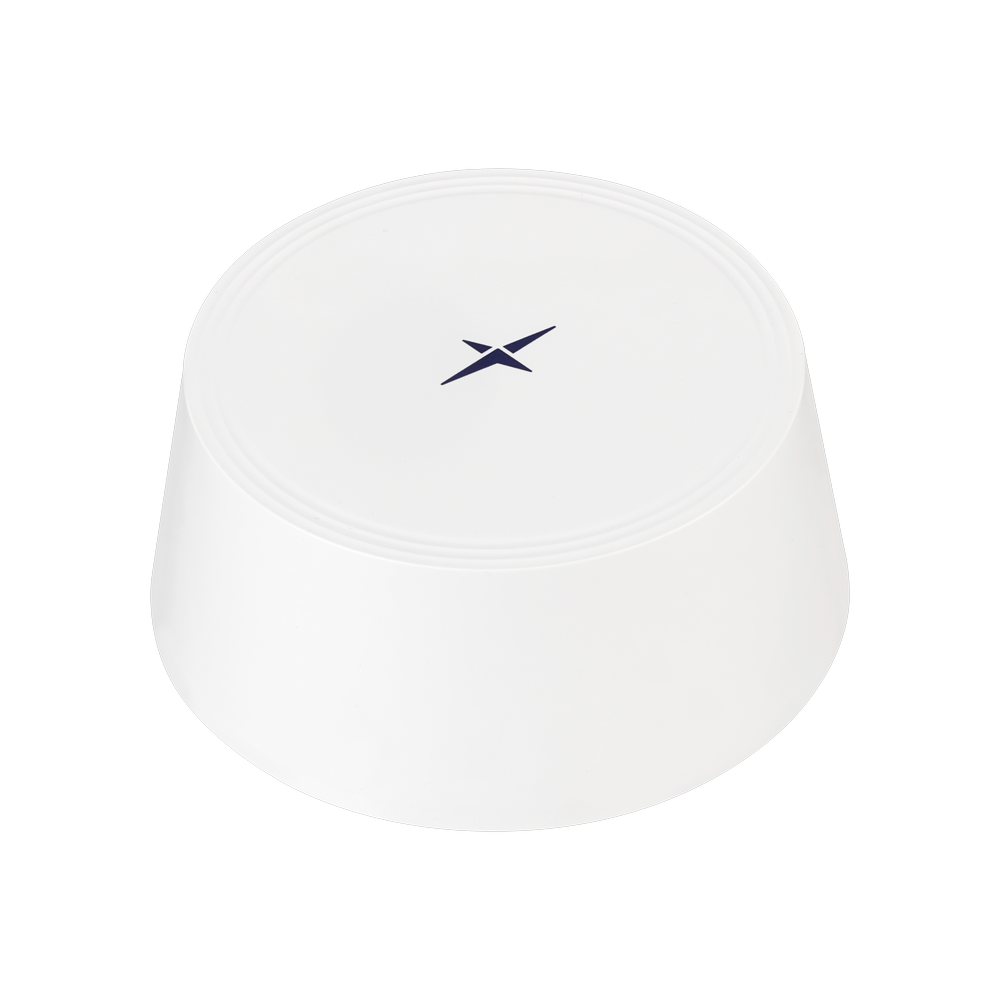

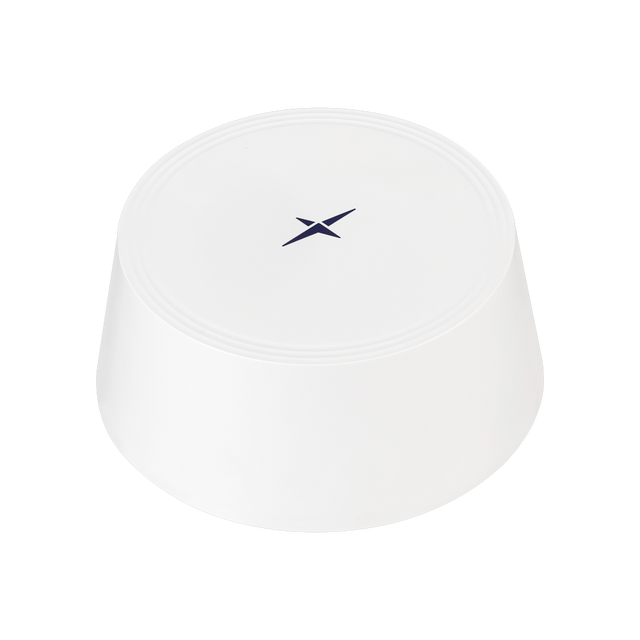

The SynergyX MA1555 is a compact 5-in-1 permanent-mount combination antenna designed for use with next-generation routers where reliable cellular connectivity and high-precision positioning are required. Its multi-antenna design supports simultaneous operation for positioning and MIMO cellular links, making it well-suited to demanding environments and modern multi-radio devices.

Typical use cases include cm-level positioning workflows (including RTK base/rover deployments), robust telematics solutions, and high-accuracy tracking in challenging urban conditions.

Connections

1x Multi-band Active GNSS
4x 5G/4G MIMO 600-6000MHz

Technical Specifications

Operating Temperature: -40 to +85
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Dimensions: Ø161.3mm * 67mm Staggered RG-174 with SMA(M) connectors RoHS
Weight: 535g

Multi-band GNSS (Active)

Frequency: 1176.45-1602 MHz
Standards: GPS/QZSS L1/L2/L5/L6, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2a/B2b/B3, NAVIC L5, SBAS (WAAS/EGNOS/GAGAN/SDCM/SNAS)
Polarization: RHCP
Impedance: 50 9
VSWR (max.): 2:1
Peak Gain (dBi): 2.65 (1176.45), 0.20 (1227.6), 3.16 (1278.75), 3.45 (1561), 4.03 (1575.42), 3.96 (1602)
LNA Gain (typical): 22-28 dB
Noise Figure (typical): 2.6-4.5 dB
Input Voltage: +1.8 to +5.0 VDC
Current Draw (typical): < 20 mA
Connector Type: SMA(M)
Cable Length: 35cm (staggered)
Cable Type: RG-174

5G/4G MIMO (4x)

Frequency: 600-6000 MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Frequency (tested bands): 617-960, 1427-1518, 1710-2200, 2300-2690, 3300-5000, 5150-5925 MHz
Impedance: 50 9
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Connector Type: SMA(M)
Cable Length: 35cm (staggered)
Cable Type: RG-174
