MA1609.A.001 Antenna External Router MIMO 5G, GNSS, Wi-Fi 6E/7 screw mount 9-in-1 IP67 for Autonomous Driving, Precision Positioning for Robotics, Precision Agriculture, Inventory Management & Container tracking

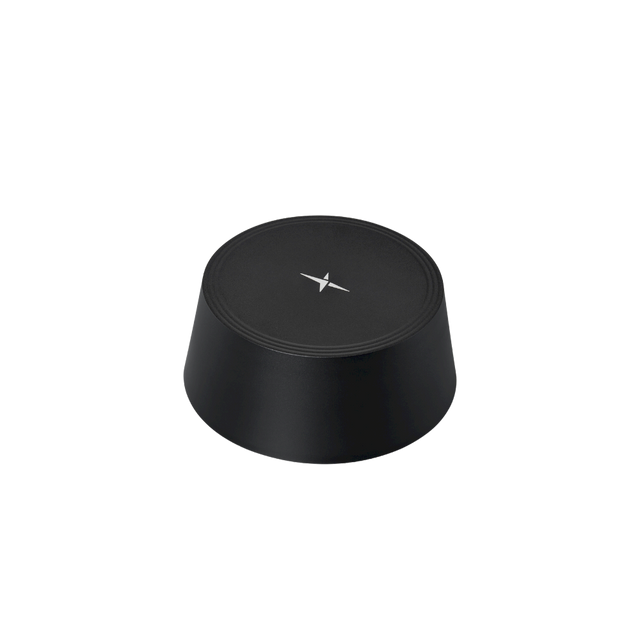

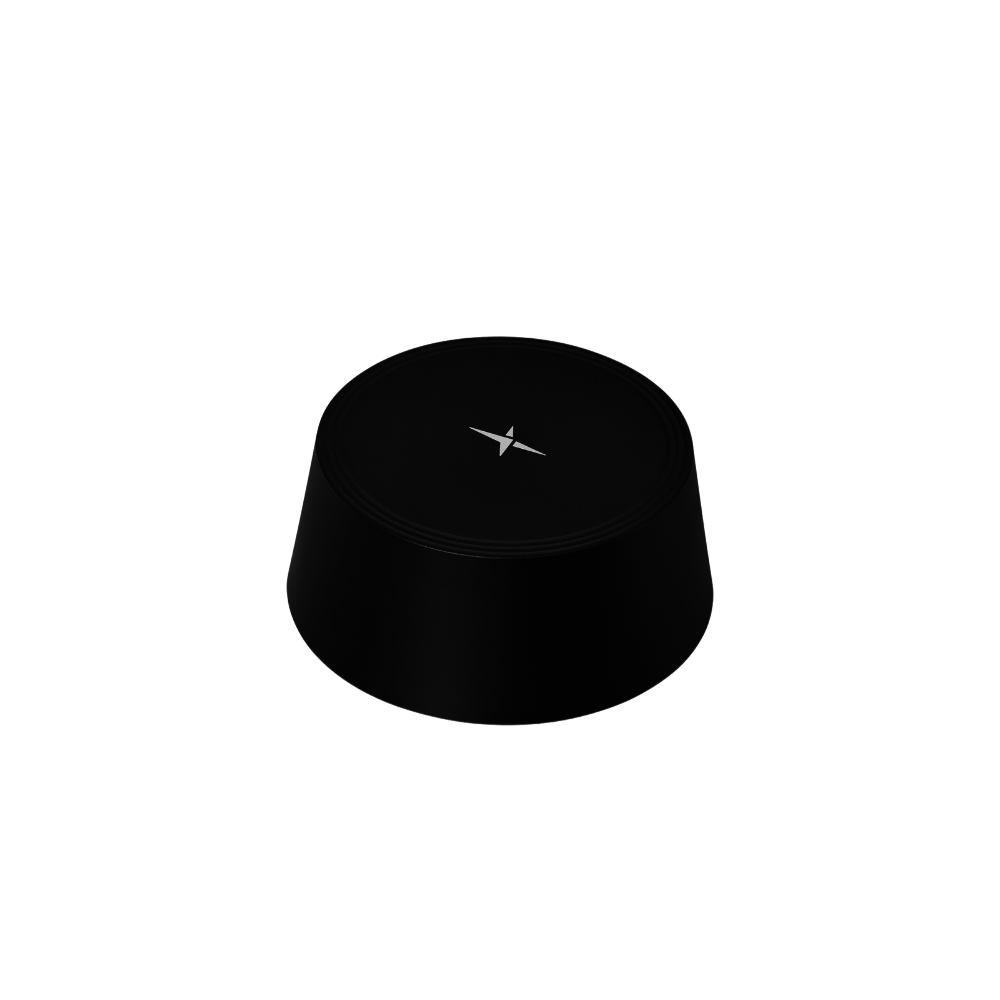

Synergy XR MA1609 is a compact 9-in-1 permanent-mount antenna built for high-performance router deployments. It combines wideband cellular coverage, multi-constellation GNSS support for improved location accuracy and stability in challenging environments, and tri-band Wi-Fi coverage to help future-proof designs for next-generation connectivity.

• 9-in-1 combination design for consolidated router installations
• Wideband cellular coverage designed to span modern 5G/4G frequency allocations
• GNSS support aimed at higher accuracy and stable tracking in urban environments
• Rugged low-profile enclosure with an IP67-rated waterproof design

Connections

4x 5G/4G MIMO 600-6000MHz
4x Wi-Fi MIMO 2.4/5.8/7.125 GHz (Including Wi-Fi 6)
1x GPS L1/G1/B1

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Dimensions: Ø161.3mm * 67mm Staggered RG-174 with SMA(M)/RP-SMA(M) connec
Weight: 535g

5G/4G MIMO (4x)

Frequency: 600-6000 MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Connector Type: SMA(M)/RP-SMA(M)
Cable Length: 30cm
Cable Type: RG-174
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W

Wi-Fi MIMO (4x)

Frequency: 2.4/5.8/7.125 GHz
Standards: Wi-Fi (Including Wi-Fi 6)
Connector Type: SMA(M)/RP-SMA(M)
Cable Length: 30cm
Cable Type: RG-174

GNSS (1x)

Frequency: 1561-1602 MHz
Standards: GPS L1/G1/B1
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 1:1
Passive Antenna Efficiency (%): 36.87, 43.67 (without cable loss)
Passive Antenna Gain at Zenith (dBic): 2.45, 3.79 (without cable loss)
Group Delay Variation (ns): 8, 4
Connector Type: SMA(M)
Cable Length: 30cm
Cable Type: RG-174
