MA172.A.LBC.001 Antenna Low-Profile External 5G, GNSS, Wi-Fi screw mount Monsoon 3-in-1 IP69K for HD Video over LTE -First Responder and Emergency Services, Intelligent Transport Systems, Internet of Things (IoT market)

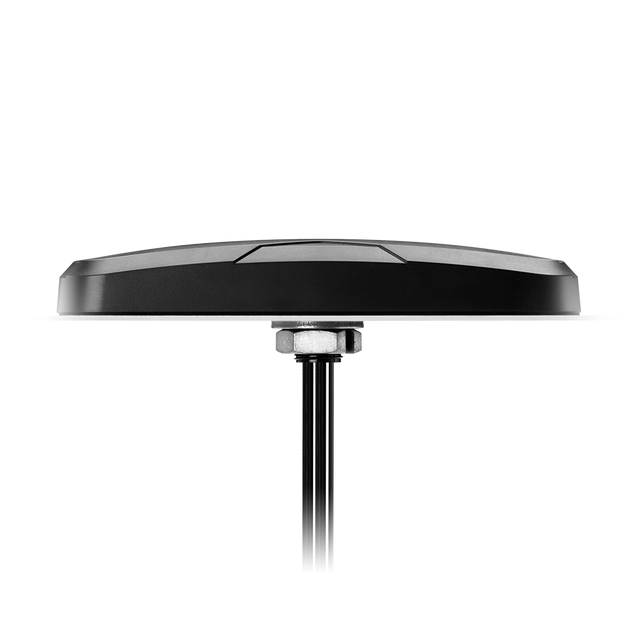

Monsoon MA172 is a low-profile 3-in-1 permanent mount antenna that combines cellular, dual-band Wi-Fi, and active GNSS in a single robust housing for demanding environments.

Designed for high efficiency even without a ground plane, it supports high-speed data uplink and downlink for cellular connectivity while providing reliable dual-band Wi-Fi performance. The active GNSS element supports GPS L1 and GLONASS L1 to help improve time-to-first-fix, including in challenging environments such as urban canyons. A front-end SAW filter helps protect the GNSS LNA from out-of-band wireless transmissions.

• Low-profile, rugged enclosure for harsh environments
• 3-in-1 design: cellular + Wi-Fi + GNSS
• Optimized GNSS performance for GPS/GLONASS L1

Connections

1x LTE Antenna (Covering Sub 6GHz 5G Bands)
1x Dual-Band Wi-Fi Antenna (2.4/5.8 GHz)
1x Active GNSS Antenna – GPS L1 and GLONASS L1

Technical Specifications

Operating Temperature: -40°C to +85°C
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP69K
Dimensions: 204 * 69 * 31 mm REACH & RoHS Compliant
Impedance: 50 Ω
VSWR: <1.92
Weight: 550 g

LTE (5G/4G/3G/2G)

Frequency: 698~824, 824~960, 1427~1518, 1710~2200, 2300~2690, 3300~5000 MHz
Standards: 5GNR/4G/3G/NB-IoT/Cat M
Impedance: 50 Ω
Polarization: Vertical
Radiation Pattern: Omni-Directional
Max Input Power: 10W
Connector Type: SMA(M)ST
Cable Length: 300cm
Cable Type: CFD200

Wi-Fi (Dual-Band)

Frequency: 2400~2500, 4900~5850 MHz
Standards: Dual-Band Wi-Fi (2.4/5.8 GHz)
Impedance: 50 Ω
Return Loss: < -6 dB
Polarization: Vertical
Connector Type: RP-SMA(M)ST
Cable Length: 300cm
Cable Type: CFD200

GNSS (Active)

Frequency: GPS L1: 1575.42 MHz ± 1.023 MHz
GLONASS L1: 1602 MHz ± 1.023 MHz
Bandwidth: 6 MHz min
Return Loss: < -10 dB
Passive Gain at Zenith: +1.0 dBic typ.
Polarization: RHCP
Impedance: 50 Ω
Total Gain @ Zenith: 25dBic, 30dBic, 32dBic
Input Voltage: Min: 1.8V, Typ. 3.0V, Max: 5.5V
Current Consumption: 6mA, 12mA, 30mA
Noise Figure: 2.7dB, 3.0dB, 3.7dB
Connector Type: SMA(M)ST
Cable Length: 300cm
Cable Type: RG174

Download Datasheet PDF
