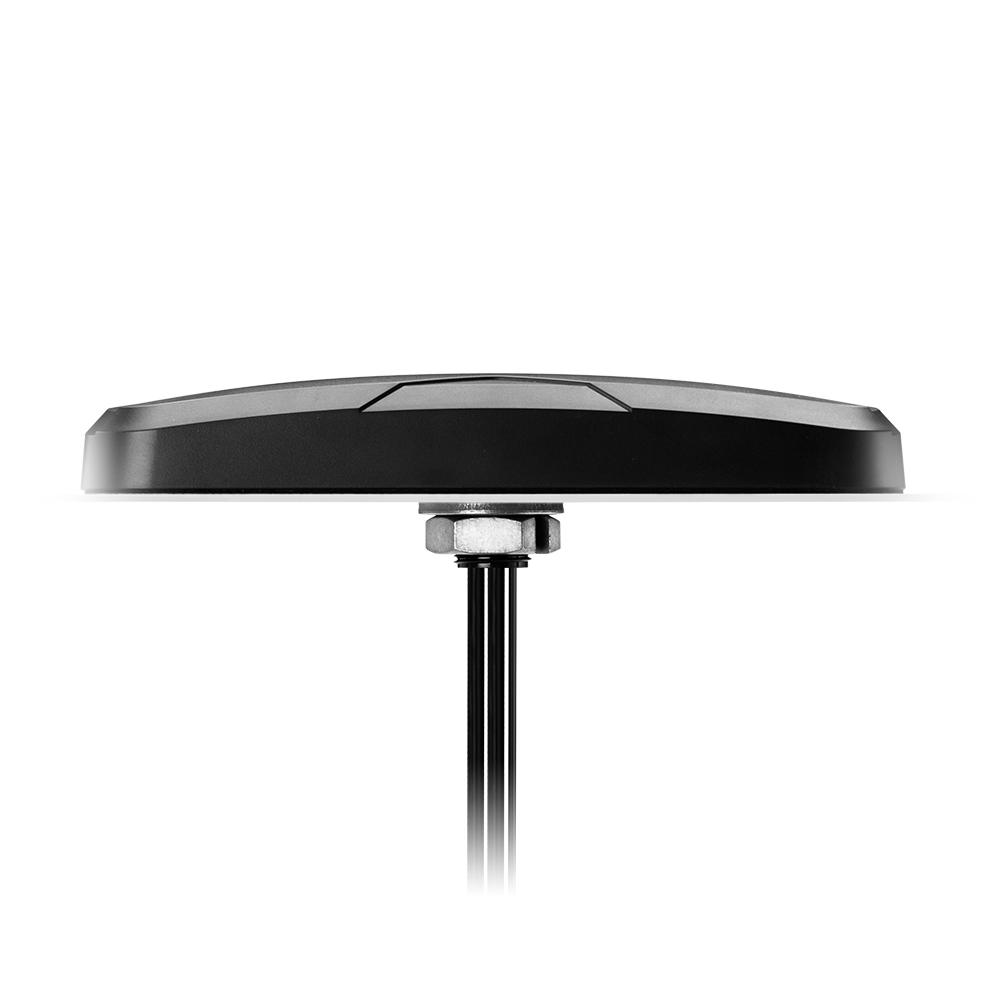

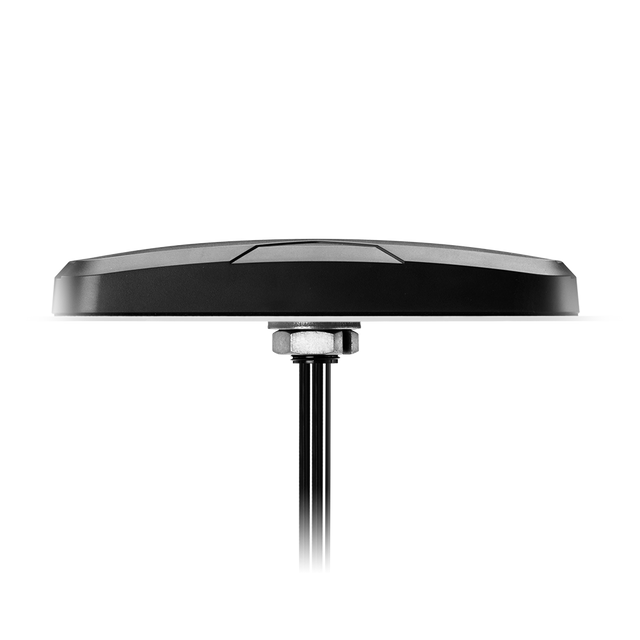

MA173.A.LBI.001 Antenna External Low-Profile 5G, GNSS screw mount Monsoon 3-in-1 IP69K for HD Video over LTE, First Responder and Emergency Services, Intelligent Transport Systems, Internet of Things (IoT market)

Monsoon MA173.A.LBI.001 is a low-profile 3-in-1 combination antenna that integrates high-efficiency cellular MIMO performance with an active GNSS antenna for reliable positioning. The rugged, fully waterproof housing is designed for demanding environments where consistent connectivity and accurate location data are required.

• 3-in-1 combination design: 2x cellular MIMO + 1x active GNSS in a single low-profile enclosure
• Optimized GNSS performance: supports GPS L1 and GLONASS L1 to help improve time-to-first-fix in challenging environments
• Designed for real-world deployments: engineered for strong cellular efficiency and throughput even without a ground plane
• Rugged enclosure: built for harsh outdoor/industrial conditions

Typical applications include: HD Video over LTE, First Responder and Emergency Services, Intelligent Transport Systems, Internet of Things (IoT market), High Definition Video Broadcast Systems, Wireless LTE M2M Devices, Digital Signage.

Connections

2x 5G/4G MIMO 600MHz - 6000MHz
1x Active GNSS (GPS L1 and GLONASS L1)

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP69K
Dimensions: 204*69*31 mm REACH & RoHS Compliant
Weight: 550 g

5G/4G Cellular MIMO (2x)

Frequency: 600MHz - 6000MHz
Standards: 5GNR/4G/3G/NB-IoT/Cat M
Impedance: 50 Ω
Polarization: Vertical
Radiation Pattern: Omni-Directional
Max Input Power: 10W
VSWR: 3.6
Peak Gain (Max): 6.41 dBi
Connector Type: SMA(M)ST
Cable Length: 300cm
Cable Type: CFD200

GNSS (Active)

Frequency: GPS L1: 1575.42 MHz ± 1.023 MHz
GLONASS L1: 1602 MHz ± 1.023 MHz
Polarization: RHCP
Impedance: 50 Ω
Bandwidth: 6 MHz min
Return Loss: <-10 dB
Passive Gain at Zenith: +1.0 dBic typ. (GPS L1 and GLONASS L1)
LNA Gain: 25dBic / 30dBic / 32dBic
Input Voltage: Min: 1.8V, Typ: 3.0V, Max: 5.5V
Current Consumption: 6mA / 12mA / 30mA
Noise Figure: 2.7dB / 3.0dB / 3.7dB
Connector Type: SMA(M)ST
Cable Length: 300cm
Cable Type: RG-174
