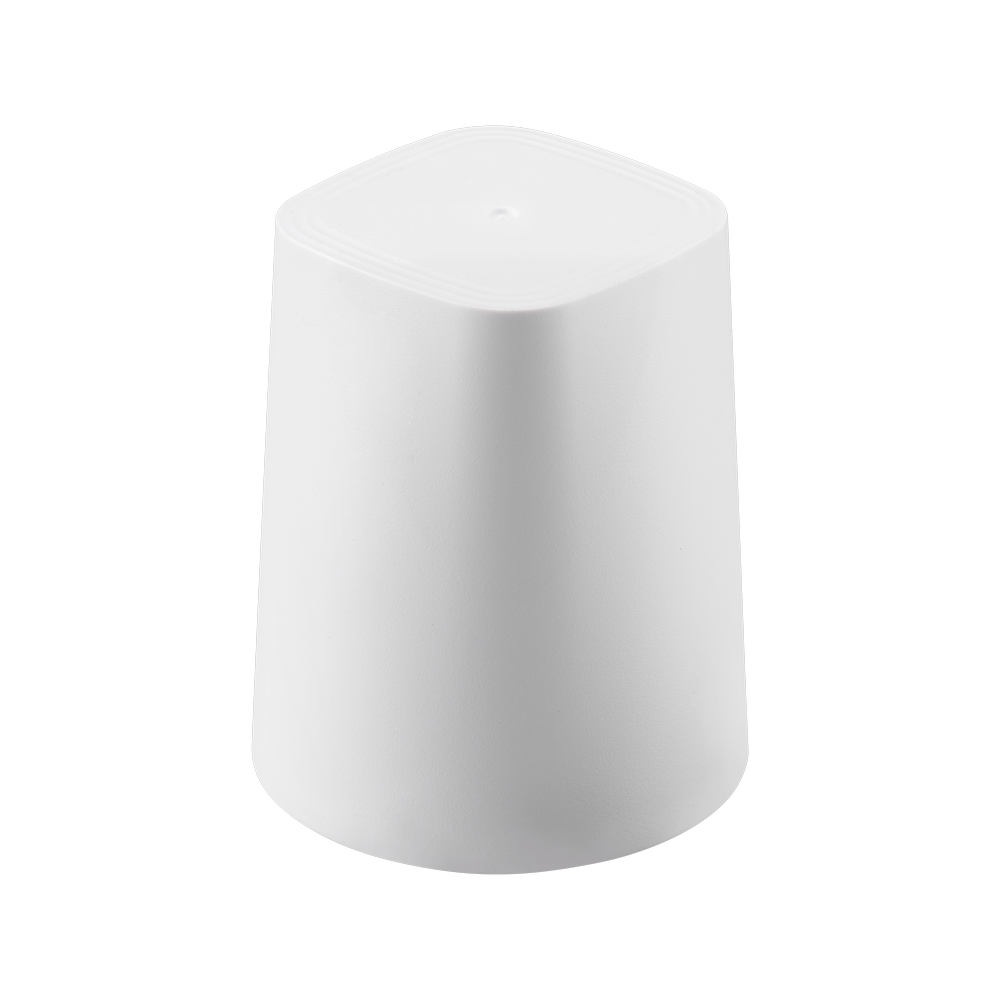

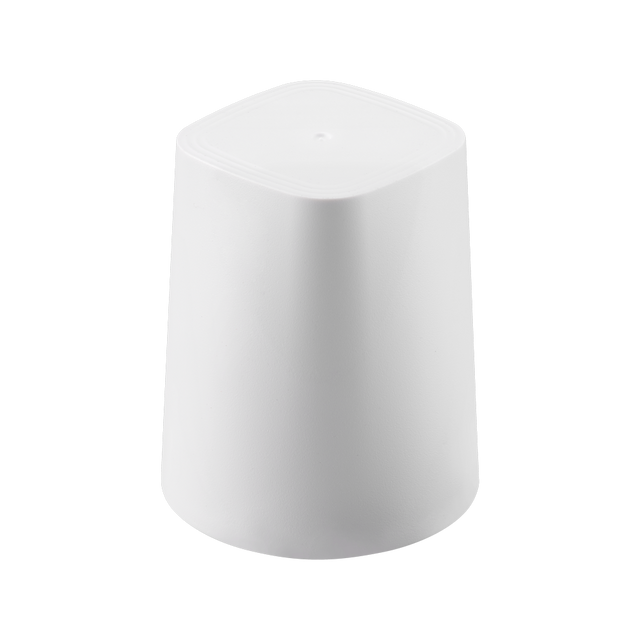

MA181.W.001 Antenna Outdoor Low-Profile MIMO 5G, GNSS screw mount Olympian III 3-in-1 for Smart Metering and Remote Monitoring, Digital Signage, Transportation and Telematics IP67

The Olympian III is a compact 3-in-1 permanent-mount antenna designed for external deployment on vehicles and outdoor assets that require dependable cellular MIMO connectivity plus GNSS positioning.

Its rugged, low-profile enclosure is built for harsh environments, with an integrated sealing design to help prevent water ingress. The design is optimized to support stable performance when installed on both metal and plastic surfaces.

• 3-in-1 combination design: integrates cellular MIMO and GNSS in one compact housing
• Wide cellular coverage: supports 5G FR1 and worldwide 4G bands with legacy 3G/2G fallback where required
• GNSS support: enables reliable positioning performance for tracking and monitoring devices
• Ruggedized enclosure: IP67 waterproof housing for demanding outdoor installations

Typical applications include: Smart Metering and Remote Monitoring, Digital Signage, Transportation and Telematics.

This product is also available in black: MA181.A.001.

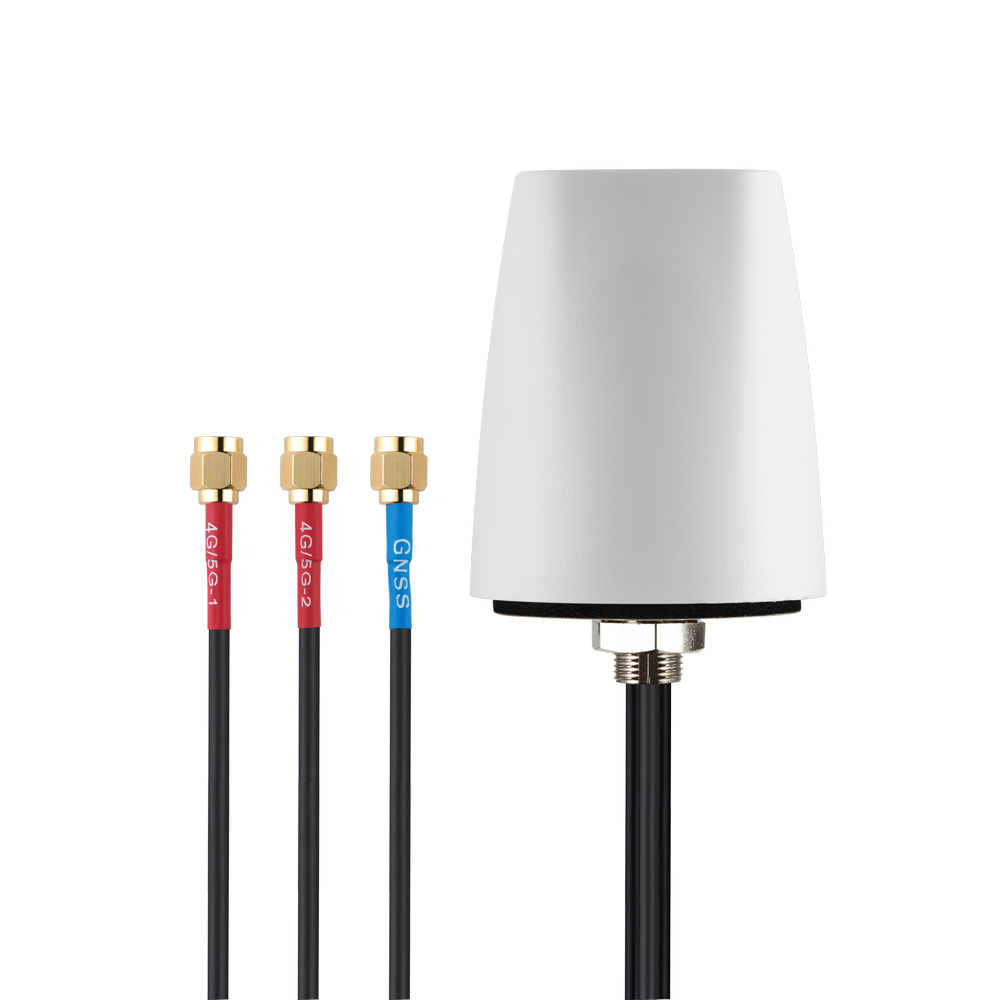

Connections

2x 5G/4G MIMO 600-6000MHz
1x GNSS (GPS/GLONASS/Galileo/BeiDou)

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Dimensions: Ø59.45mm * 70mm 1m TGC-1.5DS/RG-174 cable with SMA(M) & RP-SM
Weight: 130g

5G/4G MIMO

Quantity: 2x
Frequency: 600MHz - 6000MHz
Standards: 5GNR/FR1/LTE/LTE-Advanced/WCDMA/HSPA/HSPA+/TD-SCDMA/3G/2G/NB-IoT/Cat M
Polarization: Linear
Impedance: 50Ω
VSWR: <2
Radiation Pattern: Omni-directional
Max. Input Power: 10W
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: TGC-1.5DS

GNSS (Active)

Quantity: 1x
Frequency: 1561-1603 MHz
Standards: GPS/GLONASS/Galileo/BeiDou/QZSS/SBAS
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 3:1
LNA Gain (dB): 31.3 (at 1561 MHz)
Voltage In (V): +1.8 to 5.5
Current Consumption (mA): 9 ± 3
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: RG-174
