Description

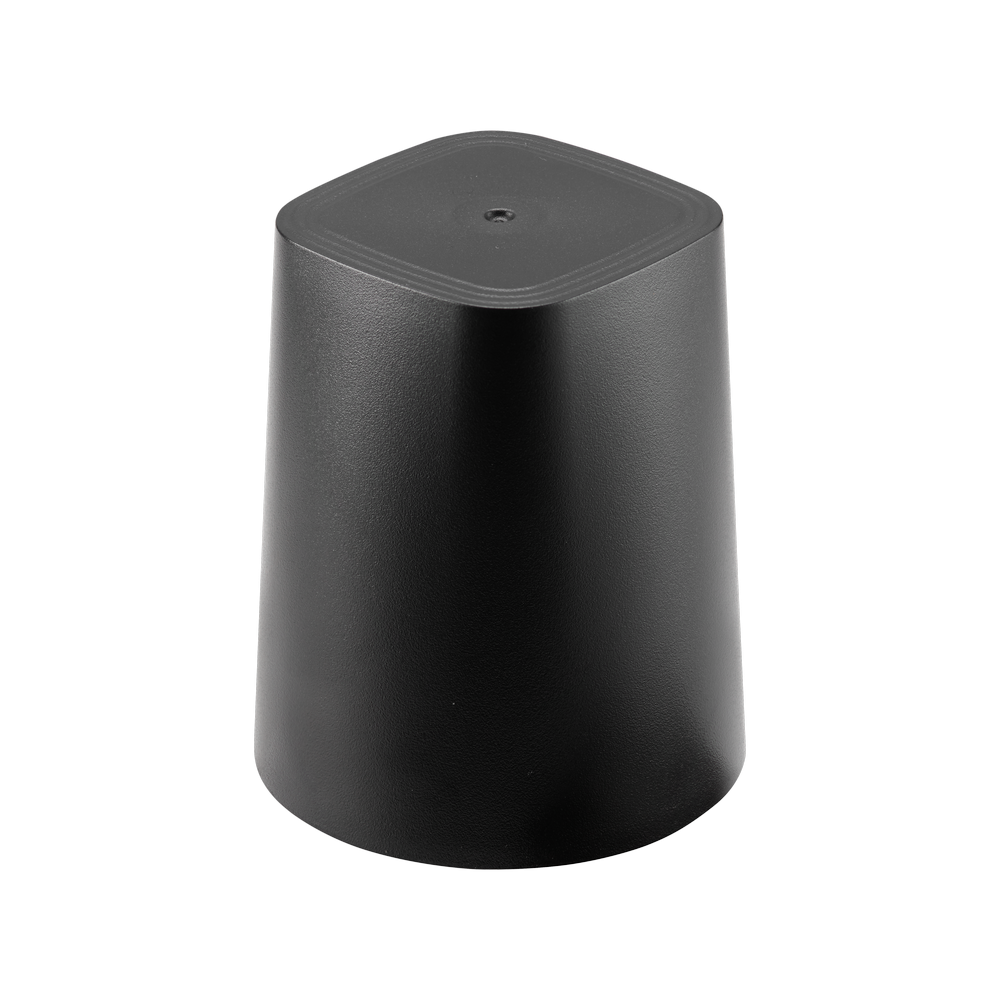

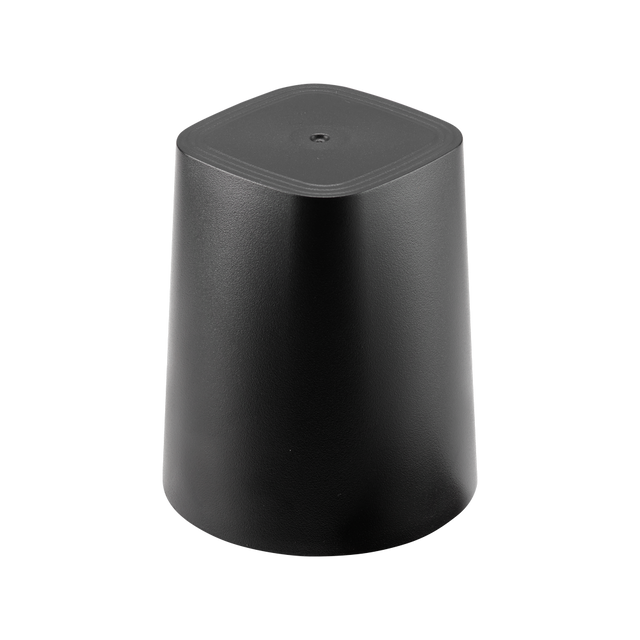

The Olympian III MA182 is a compact, rugged 2-in-1 permanent-mount antenna designed to deliver reliable 5G/4G MIMO connectivity in demanding environments. Its durable, waterproof enclosure and low-profile form factor make it well suited to vehicle installations and outdoor assets where consistent cellular performance is required.
- 2-in-1 MIMO design to support diversity/MIMO cellular operation
- Wideband cellular coverage supporting modern sub-6GHz 5G and legacy cellular fallback
- Rugged, waterproof housing for harsh outdoor deployments
- Designed for mounting on metal or plastic structures to support varied installation surfaces
Typical use cases include: Smart Metering and Remote Monitoring, Digital Signage, and Transportation and Telematics.
Connections
2x 5G/4G MIMO 600-6000MHz
Technical Specifications
Operating Temperature: -40°C - +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Type: Combination
IP Rating: IP67
Dimensions: Ø59.45mm * 70mm 1m TGC-1.5DS cable with SMA(M) connectors Cus
Weight: 130g
5G/4G MIMO (2x)
Frequency: 600MHz - 6000MHz
Standards: 5G NR (FR1), 4G LTE, 3G, 2G, NB-IoT, Cat-M
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Radiation Pattern: Omni
Max Input Power: 2W
Gain (Max): 6.79 dBi
Connector Type: SMA(M) ST (Straight)
Cable Length: 100cm
Cable Type: TGC-1.5DS
