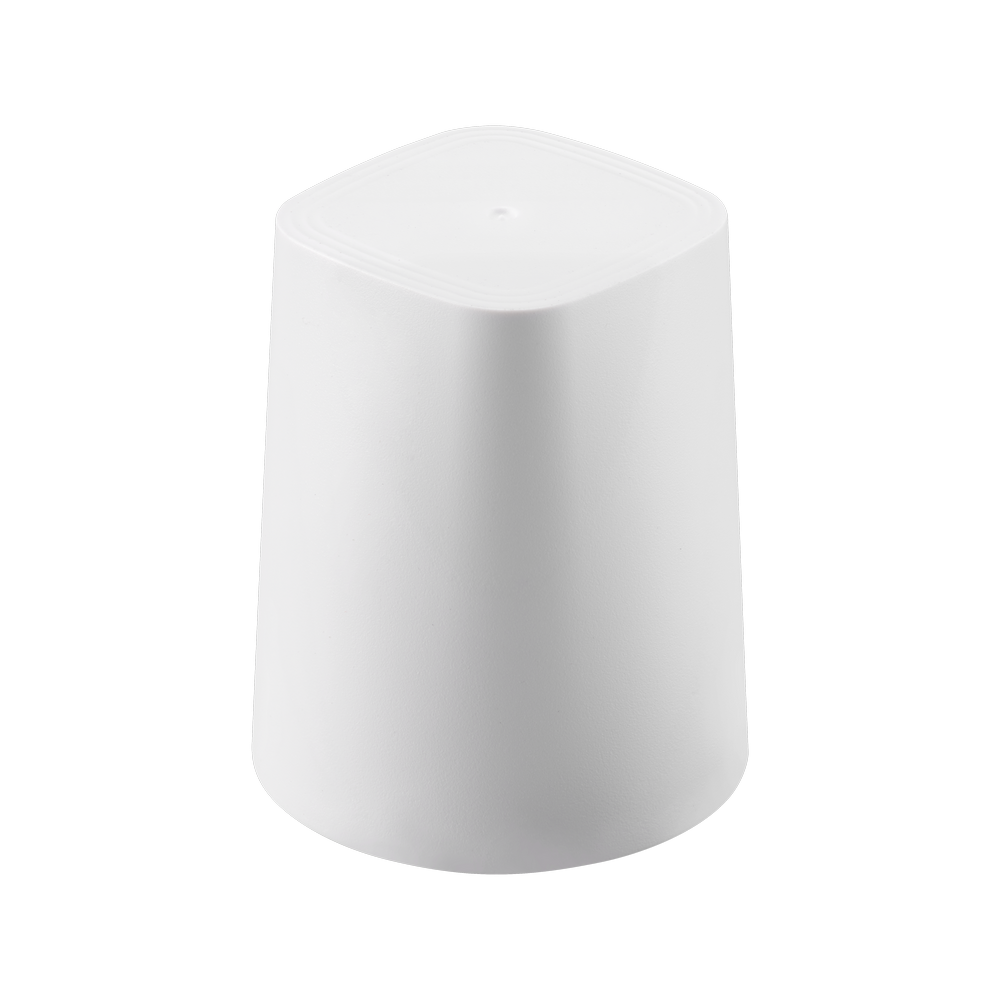

MA183.W.001 Antenna Outdoor External Low-Profile MIMO 5G, Wi-Fi 6E/7 screw mount Olympian III 3-in-1 for Smart Metering and Remote Monitoring, Digital Signage, Transportation and Telematics

A compact 3-in-1 permanent-mount antenna designed for rugged, space-constrained installations on vehicles and outdoor equipment. It combines multi-band 5G/4G MIMO performance with tri-band Wi-Fi coverage (including newer Wi-Fi 6/7 frequency ranges) to support reliable connectivity across metal and plastic mounting surfaces.

• 3-in-1 combination design: integrates 2x cellular MIMO plus 1x Wi-Fi in a single low-profile housing
• Outdoor-ready durability: sealed enclosure design to help resist water ingress
• Installation-friendly form factor: screw-mount style with internal mounting access for tighter spaces

Typical applications include: Smart Metering and Remote Monitoring, Digital Signage, Transportation and Telematics.

Connections

2x 5G/4G MIMO 600-6000MHz
1x Wi-Fi 2.4/5.8/7.125GHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Combination
IP Rating: IP67
Dimensions: Ø59.45mm * 70mm 1m TGC-1.5DS/RG-174 cable with SMA(M) & RP-SM
Weight: 130g

5G/4G MIMO (2x)

Frequency: 600-6000MHz
Standards: 5G/4G, 3G/2G fallback, NB-IoT, Cat M
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 10W
VSWR: <2
Gain (Max): 6.79 dBi
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: TGC-1.5DS

Wi-Fi Tri-Band (1x)

Frequency: 2400-2500, 5150-5850, 5925-7125 MHz
Standards: Wi-Fi 6/7 frequency support, 2.4/5.8GHz Wi-Fi, Bluetooth
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
VSWR: <2
Connector Type: RP-SMA(M)
Cable Length: 100cm
Cable Type: RG-174
