Description

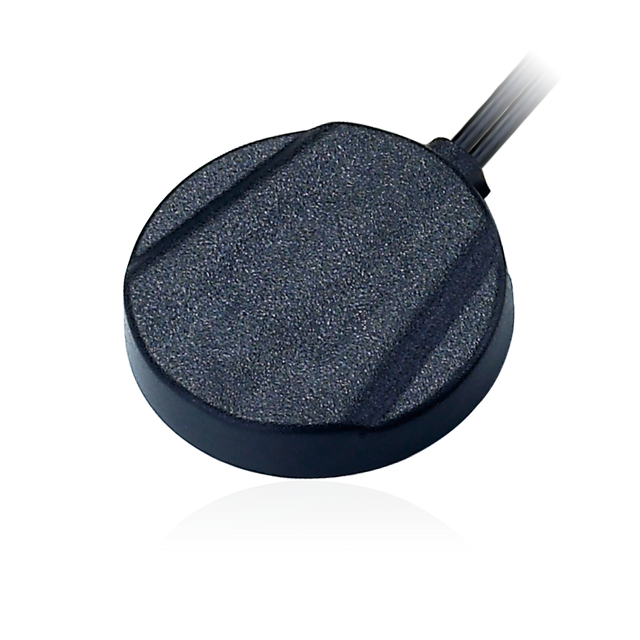

This low-profile, covert 2-in-1 adhesive antenna combines an active GPS/GALILEO GNSS element with a penta-band cellular element to simplify multi-antenna installations. It is designed for discreet placement on glass or hidden under a dashboard, helping deliver dependable positioning and cellular connectivity for vehicle deployments.
- 2-in-1 combination design: GNSS (GPS/GALILEO) + penta-band cellular in a single housing
- High-performance GNSS: integrated LNA for improved reception in challenging environments
- Covert, low-profile housing: suited to discreet installations
- Quick adhesive installation: supplied with high-grade double-sided tape
- Water-resistant enclosure: suited to demanding field use
Typical use cases: AVL and fleet management deployments requiring both accurate location and cellular communications.
Connections
1x GPS/GALILEO GNSS (Active) 1575.42 MHz ± 2MHz
1x 2G/3G Cellular (Penta-band) 824-2170 MHz
Technical Specifications
Operating Temperature: -40ºC ~ +85ºC
Cellular Technologies: 3G
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP65
Impedance: 50Ω
Length (mm): 55
Width (mm): 55
Height (mm): 11.7
Weight (g): 121
GPS/GALILEO (Active)
Frequency: 1575.42 MHz ± 2MHz
Standards: GPS/GALILEO
Polarization: RHCP
Impedance: 50Ω
VSWR: <=2.0
Gain: 30 dB typ.
Gain at Zenith: 2.0 dBi min
Gain at 10° elevation: -4.0 dBi min
Noise Figure: 1.5 dB max.
LNA Gain: up to 32 dB
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
Penta-band Cellular (2G/3G)
Frequency: 800MHz to 2200MHz
Standards: GSM/CDMA/PCS/DCS/UMTS/GPRS/EDGE/HSPA
Impedance: 50Ω
VSWR: <=2.5
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
