Description

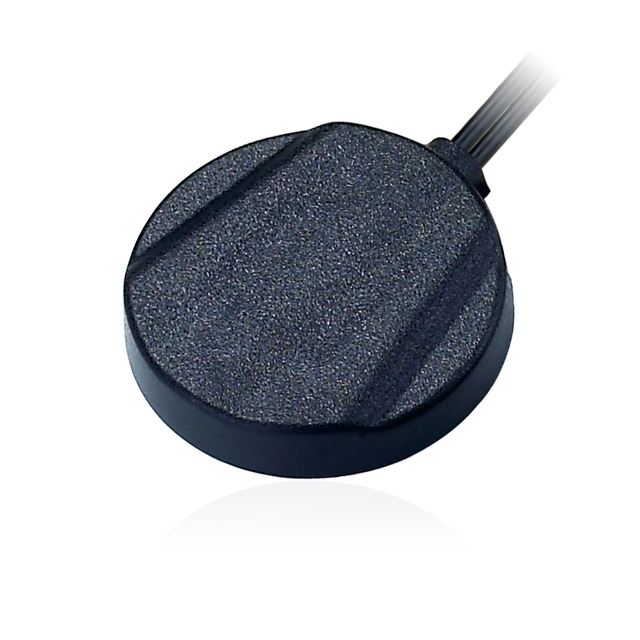

This low-profile combination antenna integrates GNSS (GPS/GALILEO) and Wi-Fi (2.4–2.5GHz) into a single adhesive-mount housing to simplify compact wireless designs. The covert enclosure can be placed on glass or installed out of sight (for example, under a dashboard), helping enable clean installations while maintaining reliable RF performance.
- 2-in-1 connectivity: GNSS + Wi-Fi in one adhesive-mount solution
- Covert, low-profile design: suitable for discreet installations on glass or inside vehicles
- Designed for durable deployments: compact housing with water resistance (IP65)
- Use cases: AVL and fleet management systems
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP65
Dimensions: 55*55*10.8mm
Weight: 113g
GNSS (GPS/GALILEO)
Frequency: 1575.42 MHz ± 2MHz
Standards: GPS/GALILEO
LNA Gain: 28dB typ.
Gain at Zenith: -1.0 dBi min
Axial Ratio: 3.0 dB max
Noise Figure: 2dB max
Polarization: RHCP
DC Power Input: 2.7~3.3V
Bandwidth: 10 MHz min
VSWR: <=1.92
Impedance: 50Ω
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
Wi-Fi (2.4~2.5GHz)
Frequency: 2.4 – 2.5 GHz
Standards: Wi-Fi
Gain: 0 dB typ.
Polarization: Linear
Bandwidth: 100 MHz
VSWR: <=1.92
Impedance: 50Ω
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: RG-174
