Description

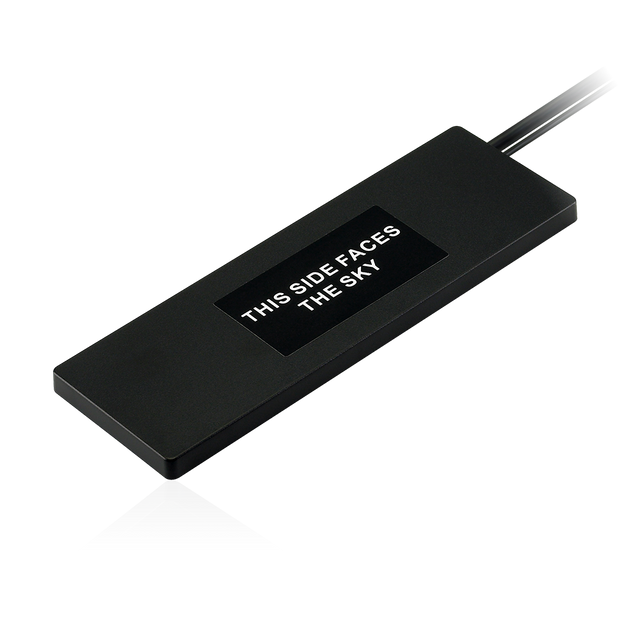

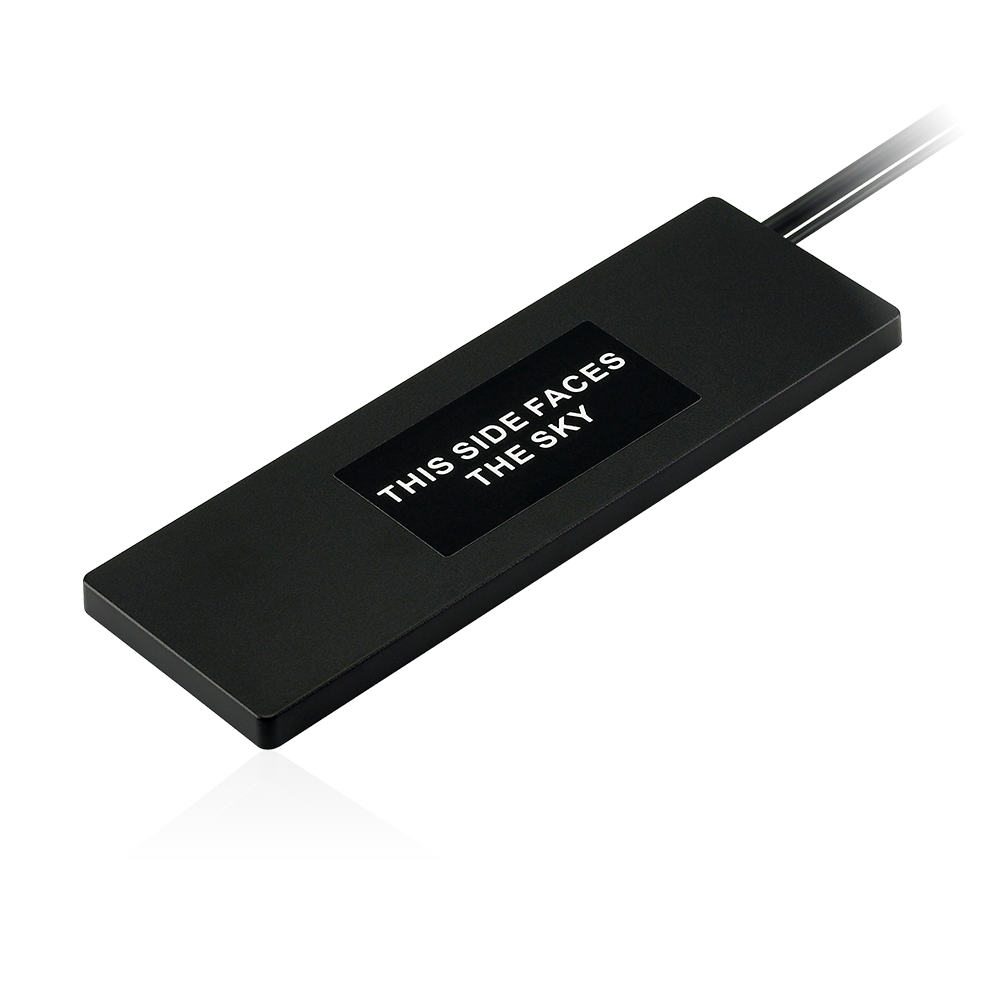

Stream MA208 is a low-profile, heavy-duty external antenna that combines GNSS (GPS/Galileo) and wideband cellular (4G/3G/2G) performance in a compact adhesive-mount form factor.
Designed for demanding M2M deployments, it helps deliver reliable positioning and cellular connectivity with strong efficiency across key LTE and legacy cellular bands, while maintaining high isolation between the GNSS and cellular elements.
- 2-in-1 design: GNSS + cellular in a single rugged housing
- External adhesive-mount format: optimized for fast installation on vehicles and assets
- Ruggedized protection: waterproof enclosure for harsh environments
- Ideal for: telematics, transportation, and remote monitoring deployments
Connections
1x GPS/Galileo (L1 1575.42 MHz)
1x 4G/3G/2G Cellular (700-960 MHz, 1710-2170 MHz)
Installation / Environmental
The Stream works best when attached to plastic or glass, but can also be used on metal if some foam spacing is added. The Stream comes packaged with a separate 3M first tier automotive approved adhesive which can be attached to either the bottom of the top of the product, for easy mounting directly on glass, or on plastic.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch, Dipole, PIFA
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Dimensions: 200.5*66.5*9mm
Weight: 180g
Relative Humidity: 20% to 95%
GNSS (GPS/Galileo)
Frequency: 1575.42 +/- 1.023MHz
Standards: GPS/Galileo
Polarization: RHCP
Gain: 3.5dBic typ @ Zenith
LNA Gain: 30dB
Supply Voltage: 1.8~5.5V
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
Cellular (4G/3G/2G)
Frequency: 700MHz~960MHz, 1710MHz~2170MHz, LTE: 2305-2350 MHz, LTE: 3400-3600 MHz
Standards: LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA, GSM, CDMA
Antenna Type: Dipole
Polarization: Linear – H+V
Gain: Peak: 2.16dBi at 700 – 960MHz; Peak: 0.42dBi at 1710 – 2170MHz
Average Gain: -3.03dBi at 700 – 960MHz; -4.34dBi at 1710 – 2170MHz
VSWR: 3.3 Max. at 700- 960MHz; 3.6 Max. at 1710- 1850MHz; 2.2 Max. at 1880-2170MHz
Impedance: 50Ω
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200
