Description

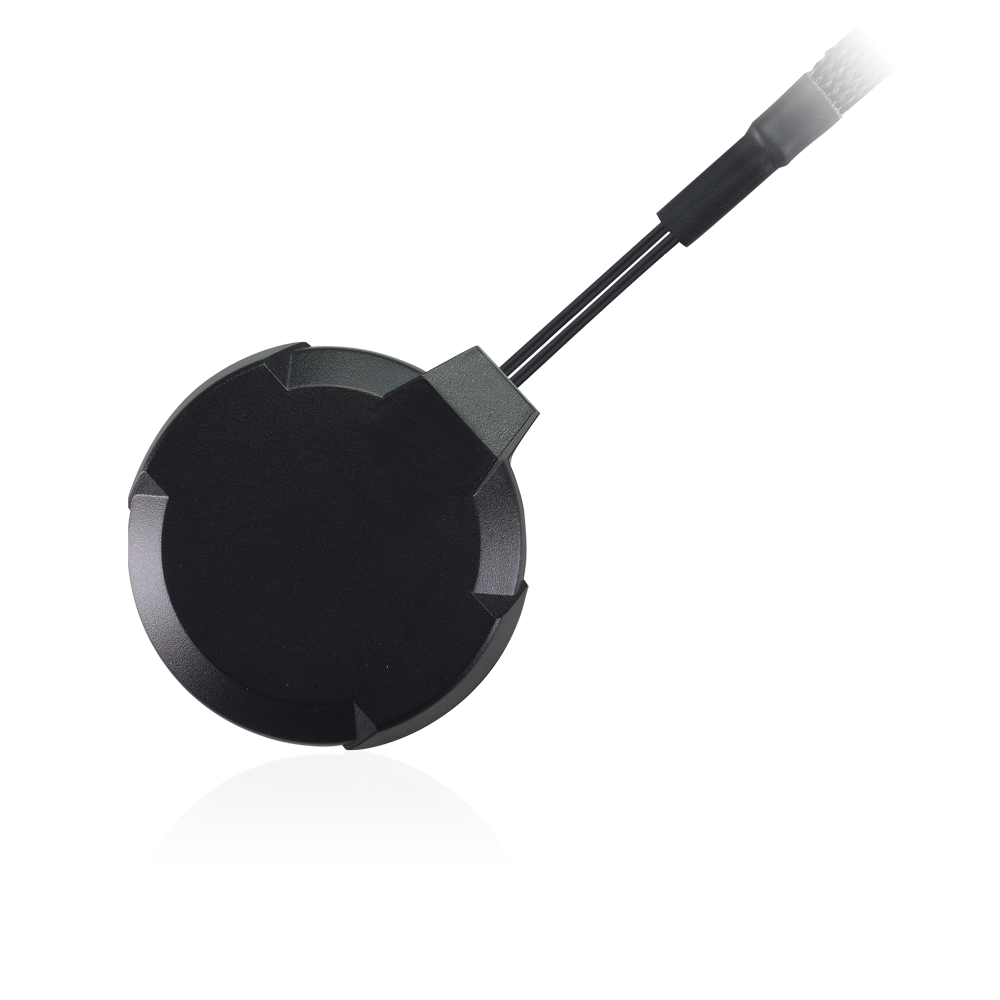

This low-profile, adhesive-mount 2-in-1 Wi-Fi MIMO antenna is designed for high-efficiency performance across 2.4 GHz and extended 5–7.125 GHz Wi-Fi bands (including Wi-Fi 6). Its MIMO capability helps increase channel capacity and can reduce required transmit power, making it well-suited for high-speed wireless devices.
- Wide Wi-Fi coverage: Supports 2.4 GHz and 5–7.125 GHz bands (including Wi-Fi 6).
- MIMO performance: Two-port design for improved throughput and reliability.
- Low-profile enclosure: Discreet form factor for product integration.
- Adhesive mounting: Uses high-grade double-sided tape for quick placement on surfaces such as glass or plastic, or concealed installations (e.g., under a dashboard).
- IP67-rated enclosure: Built for water resistance and outdoor usage.
- Customizable: Cable and connector configurations can be customized to suit integration needs.
Connections
2x Wi-Fi (including Wi-Fi 6) MIMO 2400-2500, 5150-5850, 5925-7125 MHz
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Location: External
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Combination
IP Rating: IP67
Dimensions: 62.8*68*12mm RoHS & REACH Compliant
Weight: 290g
Wi-Fi MIMO (Lead A)
Frequency: 2400~2500 MHz; 5150~5850 MHz; 5925~7125 MHz
Standards: Wi-Fi (including Wi-Fi 6)
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
VSWR: 2
Efficiency (%): 28.7 (2.4GHz), 29.3 (5.8GHz), 34.5 (7.1GHz)
Average Gain (dB): -5.4 (2.4GHz), -5.4 (5.8GHz), -4.7 (7.1GHz)
Peak Gain (dBi): 0.2 (2.4GHz), 1.4 (5.8GHz), 1.9 (7.1GHz)
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: 36cm RG-174 with braided 264cm CFD-200
Wi-Fi MIMO (Lead B)
Frequency: 2400~2500 MHz; 5150~5850 MHz; 5925~7125 MHz
Standards: Wi-Fi (including Wi-Fi 6)
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
VSWR: 2
Efficiency (%): 31.5 (2.4GHz), 31.8 (5.8GHz), 28.9 (7.1GHz)
Average Gain (dB): -5.0 (2.4GHz), -5.0 (5.8GHz), -5.4 (7.1GHz)
Peak Gain (dBi): 0.6 (2.4GHz), 1.4 (5.8GHz), 0.2 (7.1GHz)
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: 36cm RG-174 with braided 264cm CFD-200
