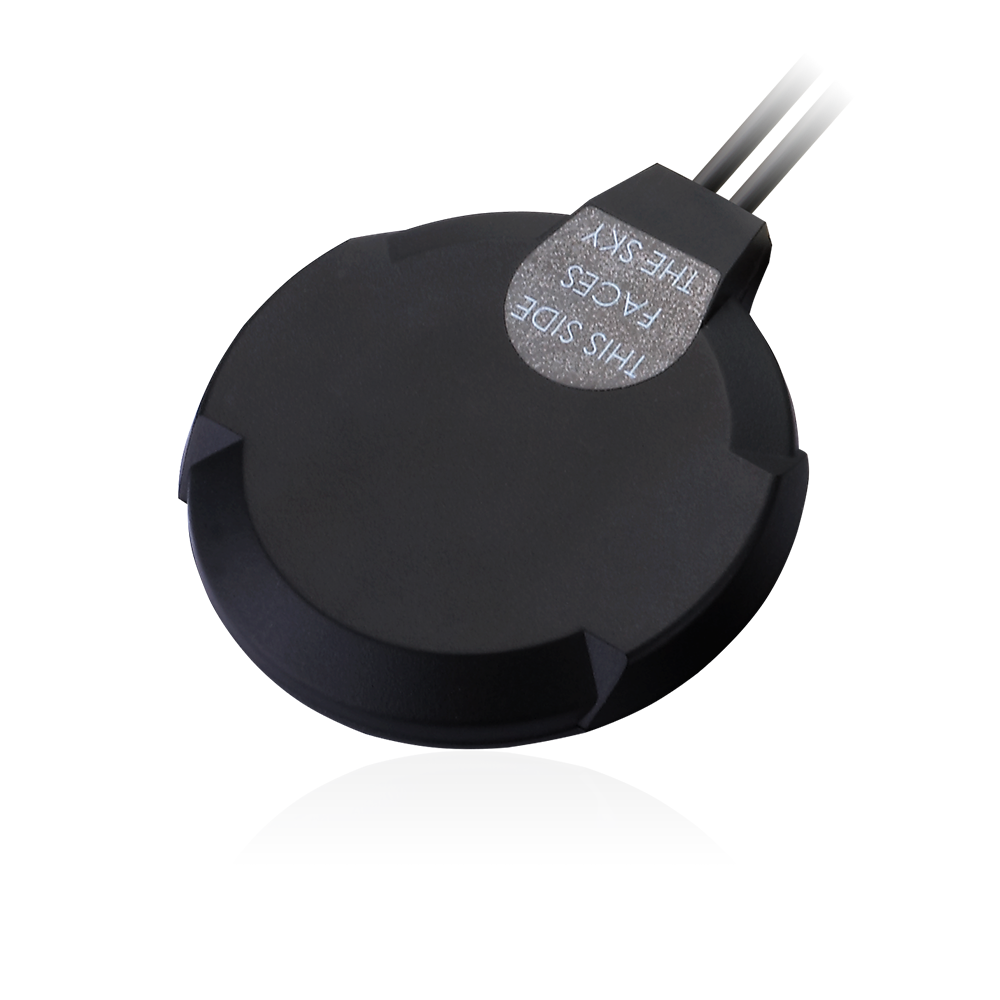

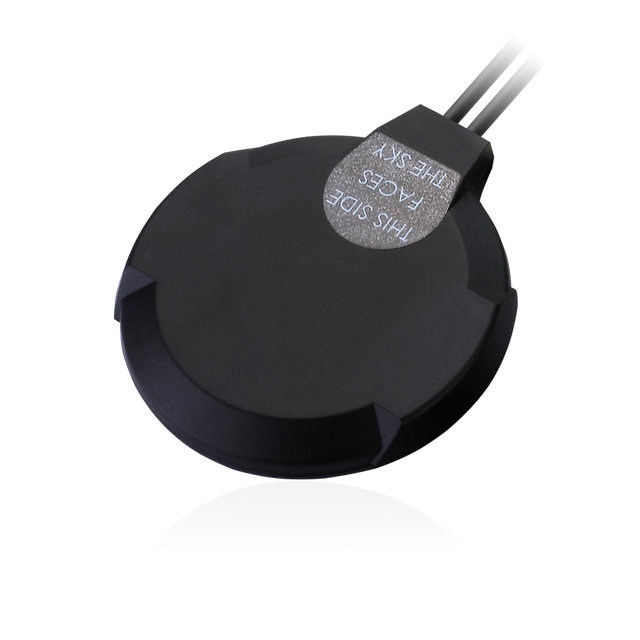

MA220.LB.001 Antenna External High-Gain 4G/LTE, GNSS adhesive mount Optimus 2-in-1 for Automotive Telematic, Fleet Management, Non-Terrestrial Network (NTN)

This low-profile, covert adhesive antenna combines precise GNSS reception with wideband cellular coverage to simplify connected vehicle and fleet deployments. It is designed for reliable performance across multiple mobile networks while supporting improved location accuracy for telematics and tracking systems.

• 2-in-1 design: Combines GNSS (GPS/GLONASS/Galileo) and cellular in one compact housing for simpler installations.
• Covert adhesive installation: Mounts to glass or plastic surfaces and can be placed discreetly (for example, on glass or under a dashboard).
• Improved GNSS robustness: Includes a front-end SAW filter to help protect the LNA from nearby out-of-band cellular transmissions and reduce sensitivity compression.
• Durable enclosure: Slim waterproof housing suited to demanding vehicle environments.
• Use cases: Automotive Telematic and Fleet management systems, including devices targeting Non-Terrestrial Network (NTN) operation (Bands 255/256/23).

Note: Not suitable for mounting on metal.

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Dimensions: 62.8mm x 68mm x 12mm
Weight: 1200g
Humidity: Non-condensing 65°C 95% RH

GNSS (GPS/GLONASS/Galileo) (Active)

Frequency: 1575.42-1602 MHz
VSWR (max.): 1.92:1
Return Loss: 5 dB Min.
Gain: 31 dB Min. @3.3V
DC Power Input: 3.3V
Noise Figure @3.3V: 1.5dB
Power Consumption: 12mA
Polarization: Linear
Impedance: 50Ω
Cable Length: 300cm
Cable Type: RG-174
Connector Type: SMA(M) Straight

4G/3G/2G LTE

Frequency: 698-6000 MHz
Standards: 4G/3G/2G LTE (plus GSM/CDMA/PCS/DCS/UMTS/GPRS/EDGE/HSPA)
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Max Input Power: 3 Max
Cable Length: 300cm
Cable Type: RG-174
Connector Type: SMA(M) Straight
