Description

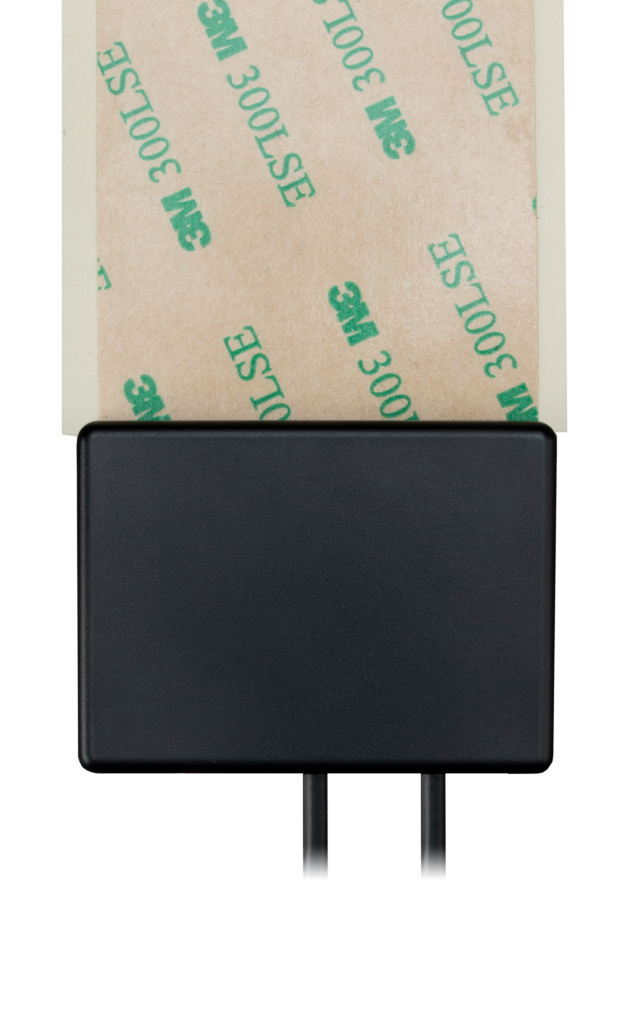

MA2220 CAMPTENNA is a next-generation 2-in-1 active AM/FM and DAB antenna designed for demanding vehicle and heavy equipment environments. It combines a robust low-profile housing with a thin metalized film element to help improve receive sensitivity for stronger AM/FM and DAB reception.
- 2-in-1 design: Supports AM/FM and DAB Band III
- Adhesive mount form factor: Low-profile solution for vehicle installations
- Powered via the DAB connection: Simplifies system integration for active reception
- Built for heavy-duty standards: Suitable for OEM and fleet-grade deployments
Ideal for:
- OEM automotive
- Trucks
- Other vehicles and heavy equipment

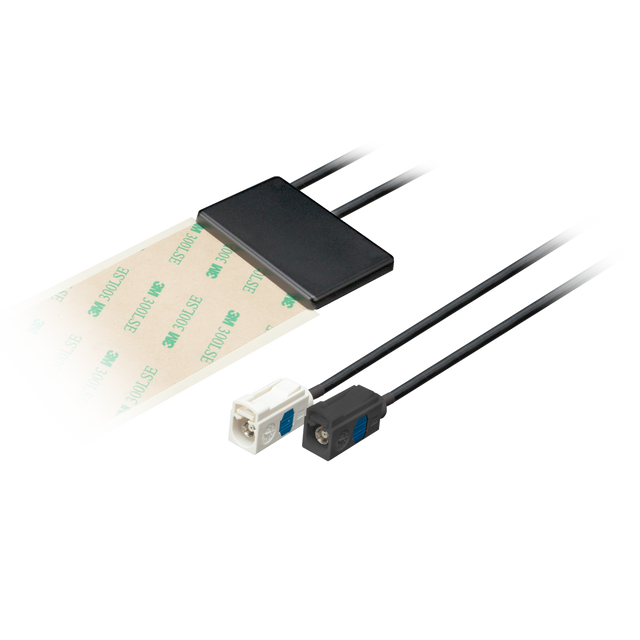

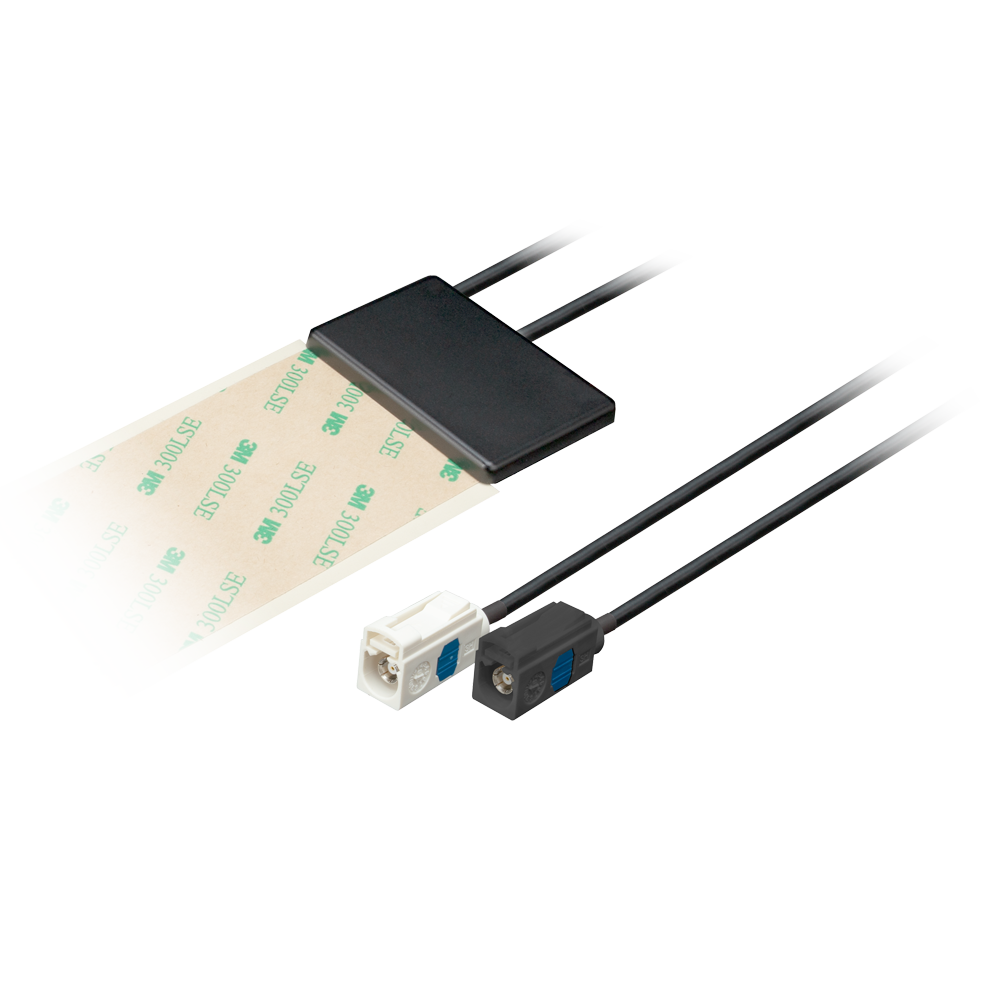

Connections
1x Active DAB Antenna (Band III) 174-240 MHz
1x Active AM/FM Antenna 535-1605 kHz, 88-108 MHz
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
Mounting: Adhesive Mount
Type: Combination
IP Rating: IP41
Dimensions: 550 x 60 x 7.2mm 1* Active DAB Antenna: FAKRA Code A Black 1* Active AM/FM Anten
Weight: 57.1g
Impedance: 50Ω
VSWR: 2:1
Power: 5-13V, 50mA @ 12V
Active DAB (Band III)
Frequency: 174-240 MHz
Gain (typ): 12 dB
Connector Type: FAKRA SMB Code A (Black)
Cable Length: 30cm
Cable Type: RG-174
Active AM/FM
Frequency: AM 535-1605 kHz; FM 88-108 MHz
Gain (typ): AM 2 dB; FM 10 dB
Connector Type: FAKRA SMB Code B (White)
Cable Length: 30cm
Cable Type: RG-174
