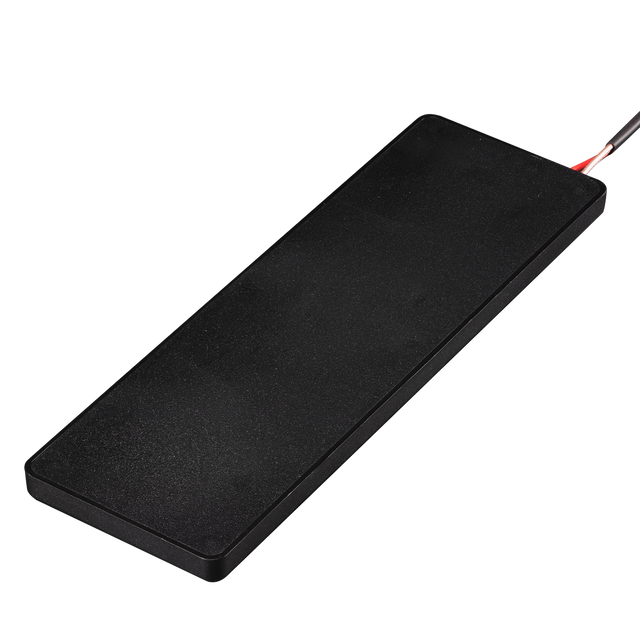

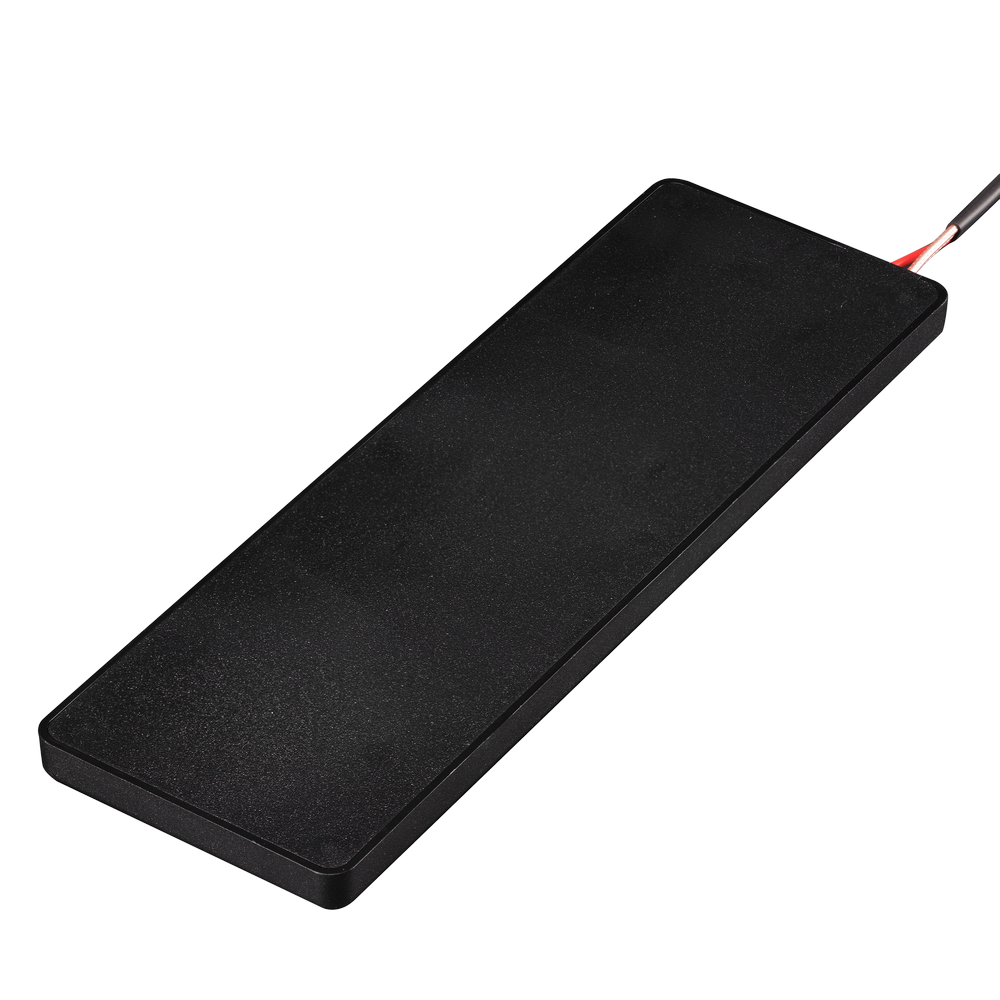

MA2230.A.001 Antenna External Low-Profile AM/FM, DAB adhesive mount Stream 2-in-1 for OEM automotive infotainment systems, Long-haul trucks, Recreational vehicles (RVs) and caravans, Motorcycles with embedded audio systems

This low-profile 2-in-1 active antenna solution is designed to support both AM/FM and Digital Audio Broadcasting (DAB) reception in demanding vehicle and machinery environments. It combines a high-efficiency internal antenna structure with an integrated low-noise amplifier to help maintain signal quality in electrically noisy installations.

Built for first-fit or aftermarket integration, it is suited to commercial vehicles and specialized machinery where reliable broadcast radio performance and a durable enclosure are required.

• Active AM/FM and DAB support
• Integrated amplifier for improved reception consistency
• Designed for heavy-duty transportation and commercial platforms

Typical use cases include:

• OEM automotive infotainment systems
• Long-haul trucks
• Recreational vehicles (RVs) and caravans
• Motorcycles with embedded audio systems
• Agricultural, construction, and other heavy equipment platforms

Connections

1x Active AM/FM Antenna
1x Active DAB Antenna

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: External
Mounting: Adhesive Mount
Type: Combination
IP Rating: IP41
Dimensions: 200 x 66 x 10.70 mm RoHS & Reach Compliant
Weight: 104g
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1

AM/FM (Active)

Frequency: 535~1605 kHz (AM), 88~108MHz (FM)
Gain: 1 dB (typ) (AM), 14 dB (typ) (FM)
Connector Type: FAKRA CODE B (F)
Cable Length: 13.5cm
Cable Type: RG178

DAB (Active)

Frequency: 174-240 MHz
Gain: 11 dB (typ)
Connector Type: FAKRA CODE A (F)
Cable Length: 13.5cm
Cable Type: RG178

Power

Voltage: 5-13V
Current: 40mA @ 12V
Connector Type: 2 pin low voltage
Cable Length: 13.5cm
Cable Type: 18 AWG
