Description

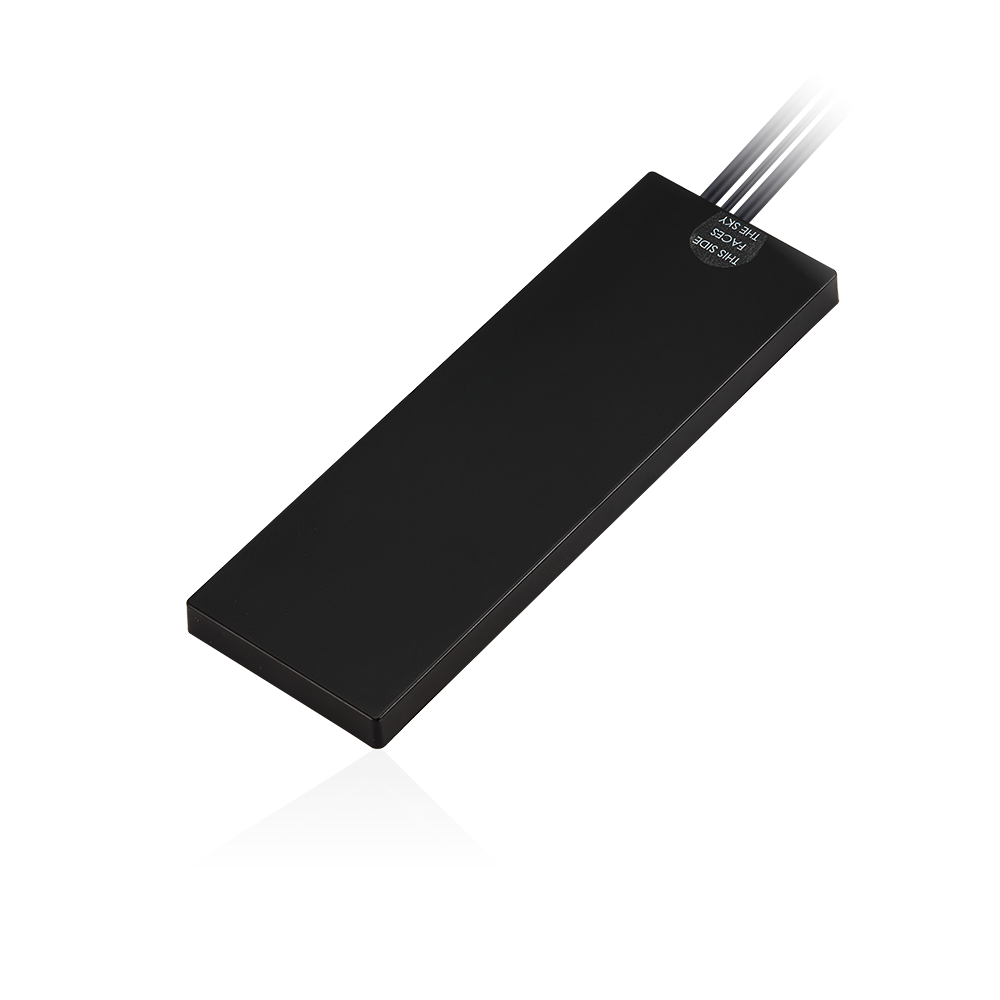

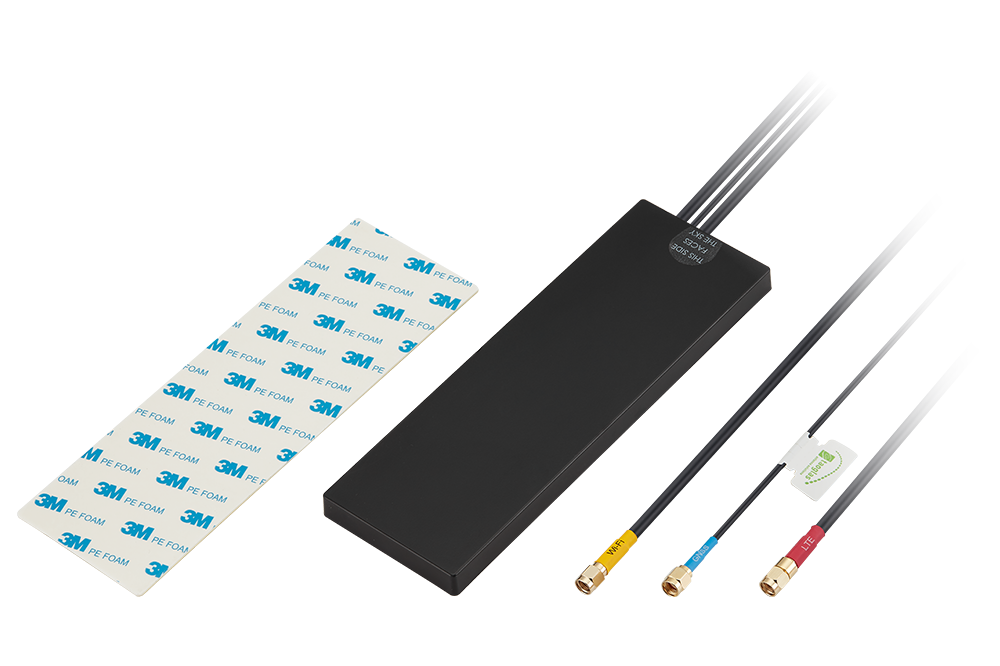

Stream 3-in-1 is an external adhesive-mount antenna specifically designed for use on metal surfaces. It combines cellular, GNSS, and Wi-Fi connectivity in one low-profile housing to simplify multi-radio deployments and reduce installation complexity.
- 3-in-1 integration: combines LTE, dual-band Wi-Fi, and active GNSS in a single external antenna
- Designed for metal surfaces: optimized for mounting on metal for consistent, reliable performance
- Built for M2M use cases: suited to professional deployments including telematics, transportation, and remote monitoring
Contact your regional customer support team for customized options or further information.
Connections
1x LTE
1x Wi-Fi
1x Active GNSS
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch, PIFA
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: 203*69*13 mm RoHS & REACH Compliant
Weight: 180g
LTE
Frequency: 698-806 MHz; 824-960 MHz; 1710-1880 MHz; 1850-1990 MHz; 1920-2170 MHz; 2490-2690 MHz
Standards: LTE/3G/2G
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Directional
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: TGC-200
Wi-Fi
Frequency: 2400-2500 MHz; 5150-5850 MHz
Standards: Wi-Fi (Dual Band)
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Directional
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: TGC-200
GNSS (Active)
Frequency: 1575.42 MHz; 1602 MHz
Standards: GPS L1/GLONASS L1/Galileo E1
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 2.0:1
Total Gain @3V (dBi): 31 ± 3
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
