MA2330.A.ACT.002 Antenna External GNSS, Wi-Fi, AM/FM headliner adhesive CAMPTENNA 3-in-1 for OEM automotive, Trucks, Heavy equipment, Automotive Telematic

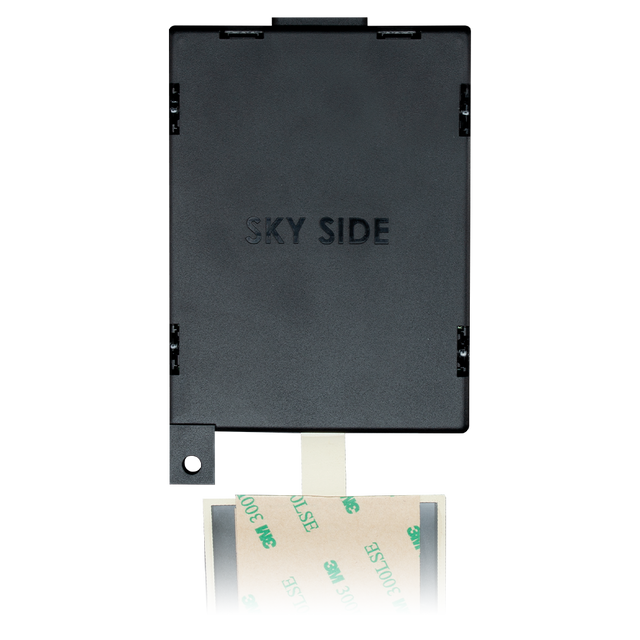

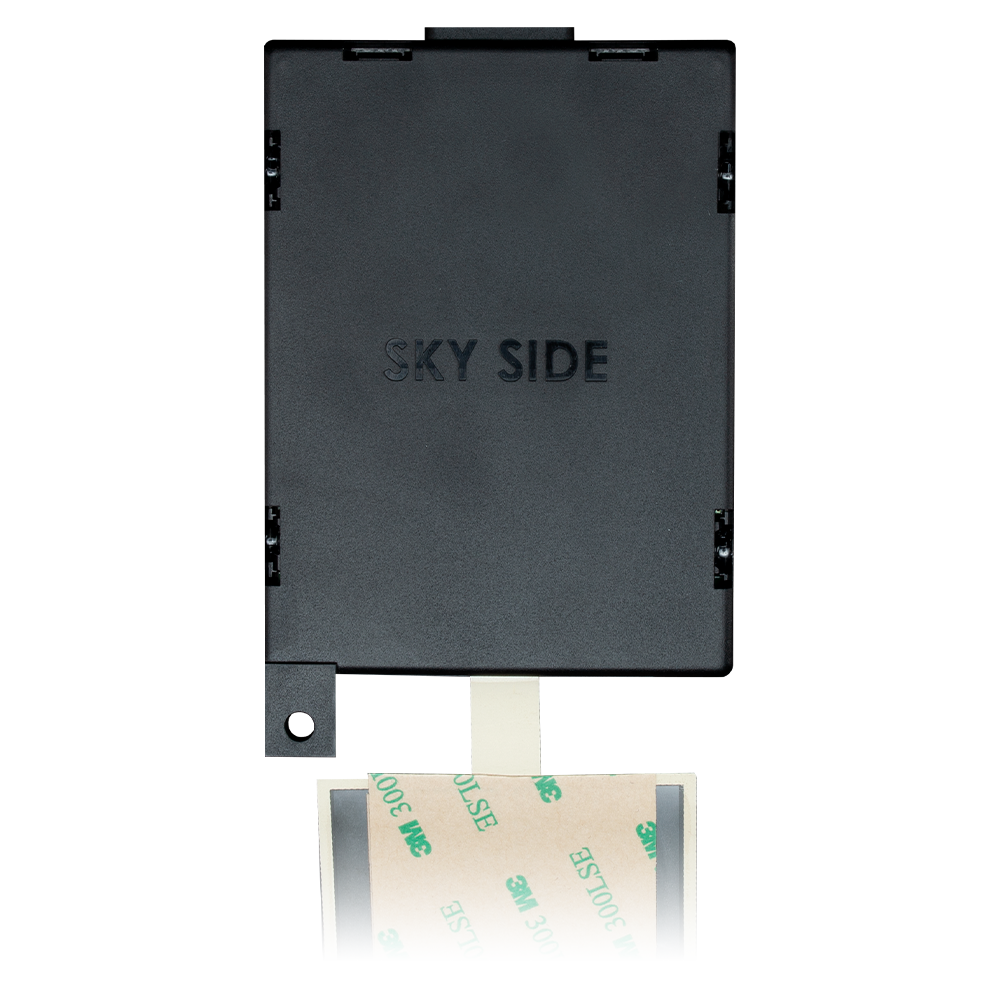

CAMPTENNA is a covert 3-in-1 headliner adhesive antenna designed as an embedded vehicle solution, combining GNSS positioning, Wi-Fi/Bluetooth connectivity, and AM/FM radio reception in a low-profile housing.

It is intended for demanding automotive and heavy-duty vehicle environments where discreet installation and multi-function performance are required.

• 3-in-1 functionality: GNSS + Wi-Fi/Bluetooth + AM/FM/WB in one headliner-mounted solution
• Vehicle-focused design: built to meet stringent heavy-duty vehicle requirements
• Improved FM sensitivity: uses a long metallized film element to enhance receive performance

Connections

1x GNSS (GPS/GLONASS/Galileo/BeiDou)
1x Wi-Fi (2.4/5.8GHz) + Bluetooth
1x AM/FM/WB (FM 88–108MHz)

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Combination
IP Rating: IP21
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Dimensions: 664.33*83.99*14.86mm
Weight: 145g

GNSS

Frequency: BeiDou: 1561.098 ± 2.046MHz; GPS: 1575.42 ± 1.023MHz; GLONASS: 1602 ± 5MHz
Return Loss (GPS L1 / GLONASS L1): < -10 dB
Efficiency: 57%
Passive Gain at Zenith (GPS L1 and GLONASS L1): +3.3 dBi
Average Gain: -2.4
Polarization: RHCP
Impedance: 50Ω
Connector Type: FAKRA Code C (Blue)
Cable Length: 300cm
Cable Type: RG-174

Wi-Fi / Bluetooth

Frequency: 2400~2500MHz; 5000~5830MHz
Return Loss: <-27.8dB (2400~2500MHz); <-10dB (5000~5830MHz)
Efficiency: 60% (2400~2500MHz); 60% (5000~5830MHz)
Peak Gain: 4dBi (2400~2500MHz); 3.7dBi (5000~5830MHz)
Average Gain: -1.9dB (2400~2500MHz); -1.9dB (5000~5830MHz)
Impedance: 50Ω
Connector Type: FAKRA Code I (Beige)
Cable Length: 300cm
Cable Type: RG-174

AM/FM/WB

Frequency: 88~108MHz
Connector Type: FAKRA Code A (Black)
Cable Length: 300cm
Cable Type: RG-174

Download Datasheet PDF
