Description

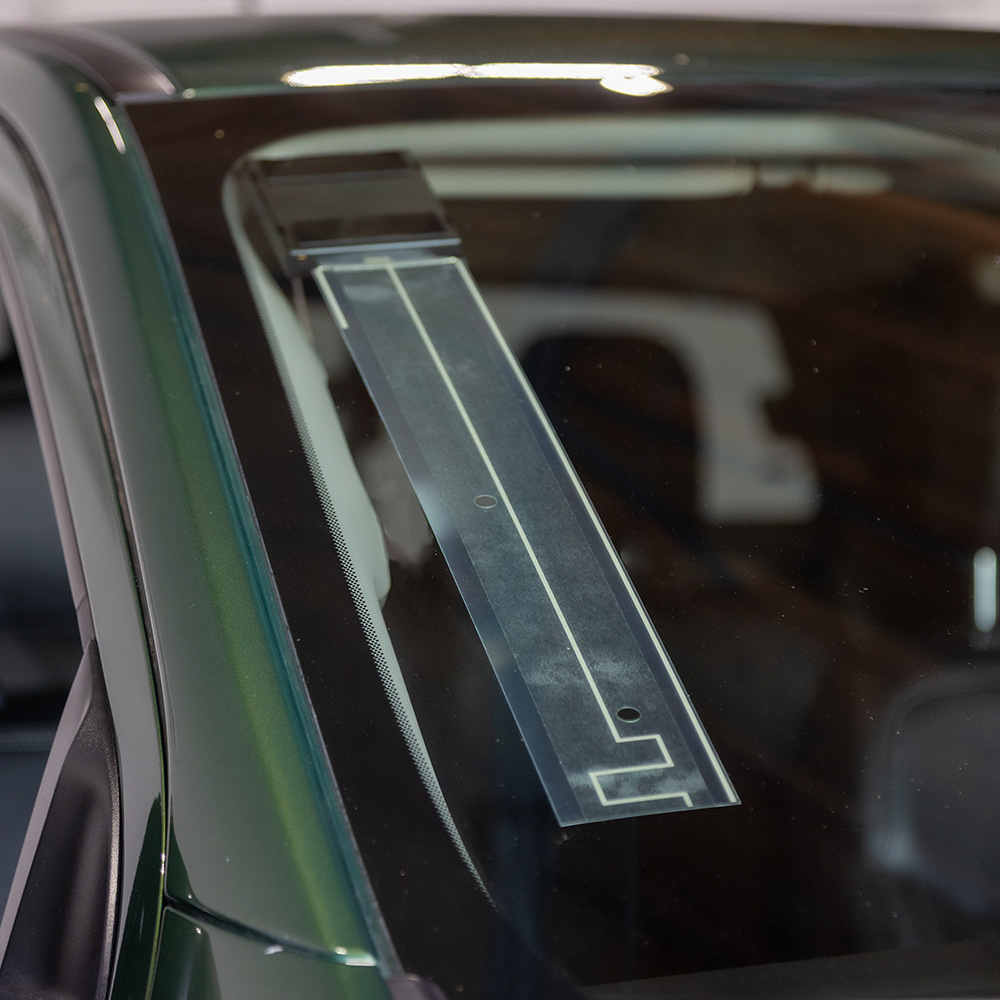

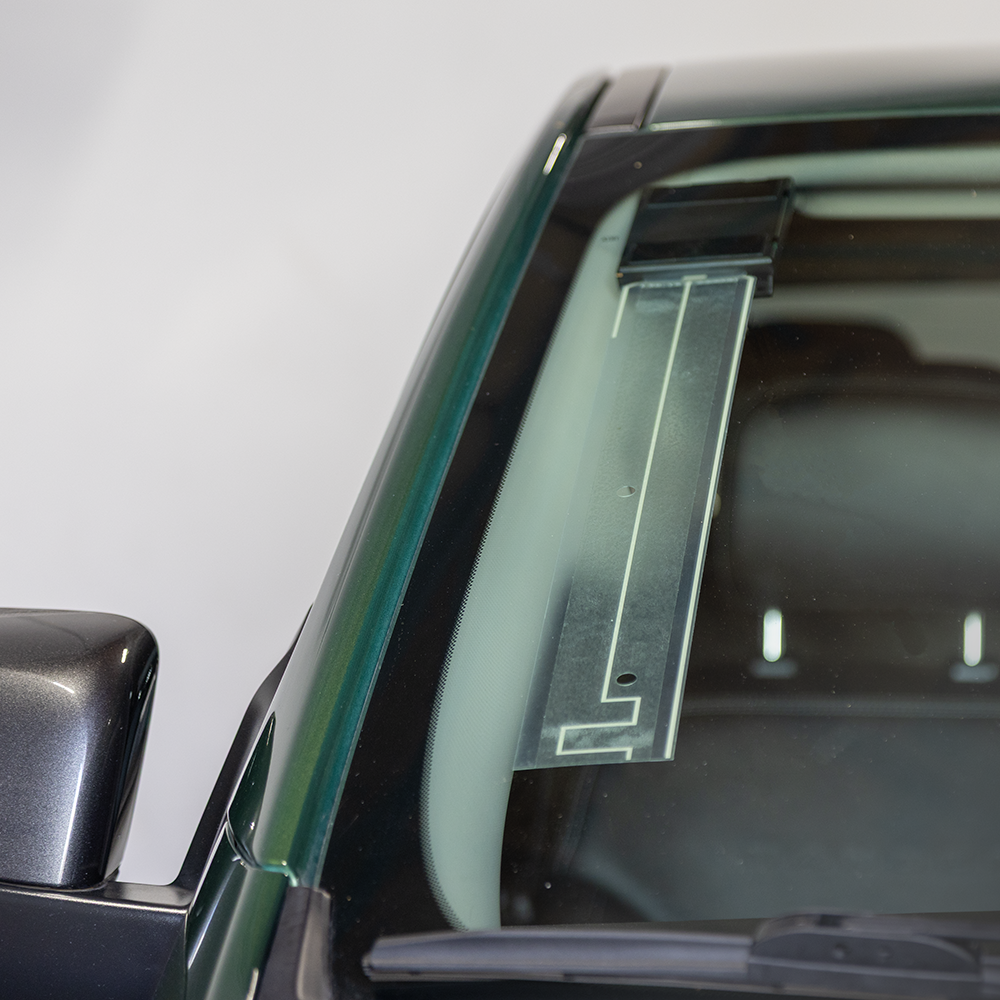

This covert, transparent film antenna is designed to blend into vehicle surfaces while delivering dependable tri-band performance across VHF, UHF, and 7–800MHz ranges. Its low-profile format and durable enclosure make it well suited to demanding automotive and heavy equipment environments where discreet integration is required.
Ideal for:
- OEM automotive platforms
- Heavy-duty trucks and plant machinery
- Recreational vehicles (RVs)
- Motorcycles
- Specialized and industrial equipment

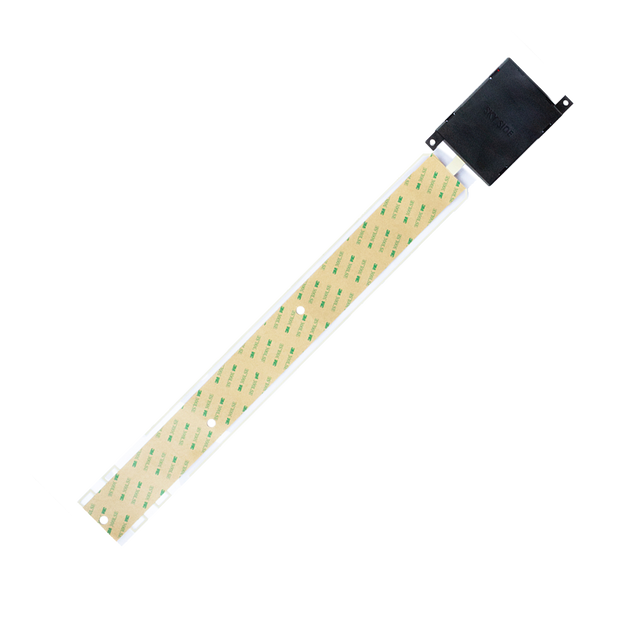

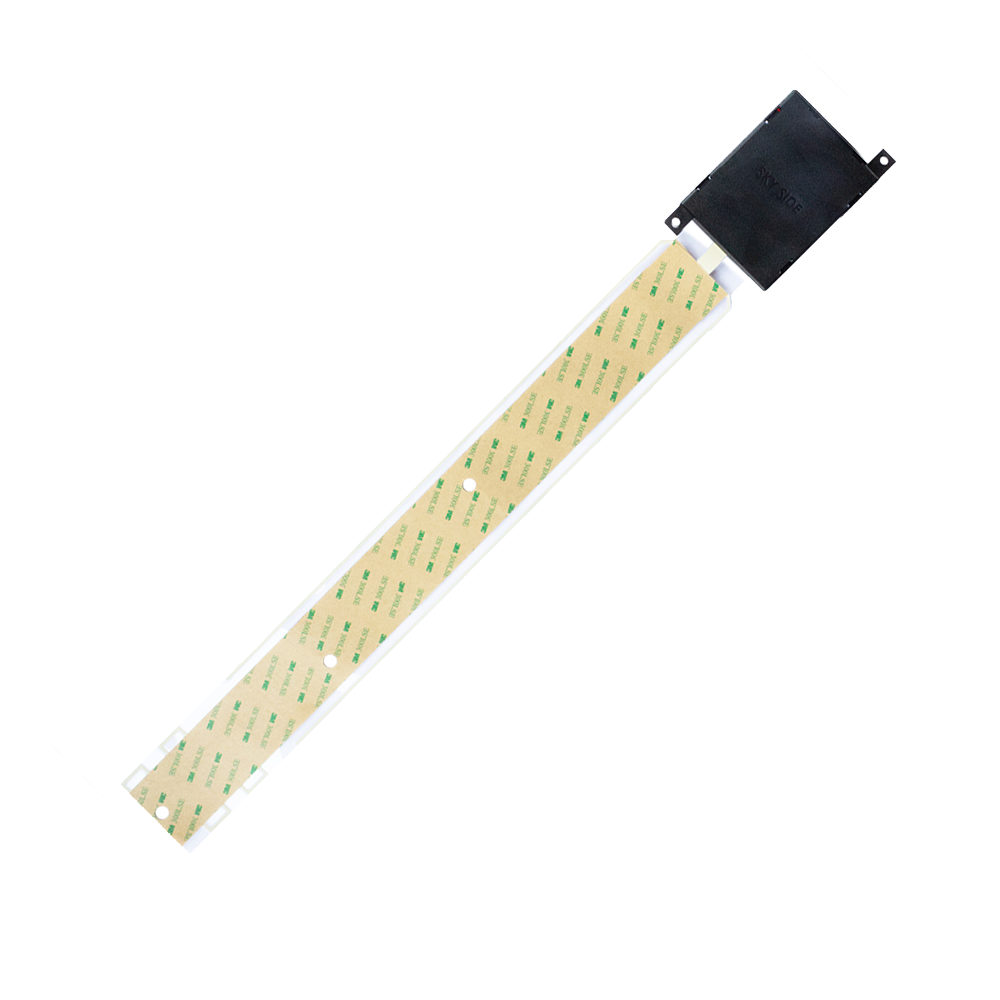

Integrated adhesive mounting supports fast, clean installation on suitable surfaces, with custom integration options available upon request.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 33cm
- Cable Type: RG-316
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Adhesive Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP41 (Internal Installation Only)
Dimensions: 562 x 70 x 16.7mm Suitable for OEM Automotive, Trucks, RVs, Motorcycles, and Mac
Weight: 130g
150-900MHz Tri-Band (Single Feed)
Frequency: 150MHz - 900MHz (VHF: 153 - 174MHz; UHF: 450 – 512MHz; 7–800MHz)
VSWR: 2:1
Impedance: 50 Ω
Polarization: Linear
VHF Gain (dBi): 2.0
UHF Efficiency (%): 41.7
7–800MHz Efficiency (%): 67.5
Connector Type: SMA(M)
Cable Length: 33cm
Cable Type: RG-316
