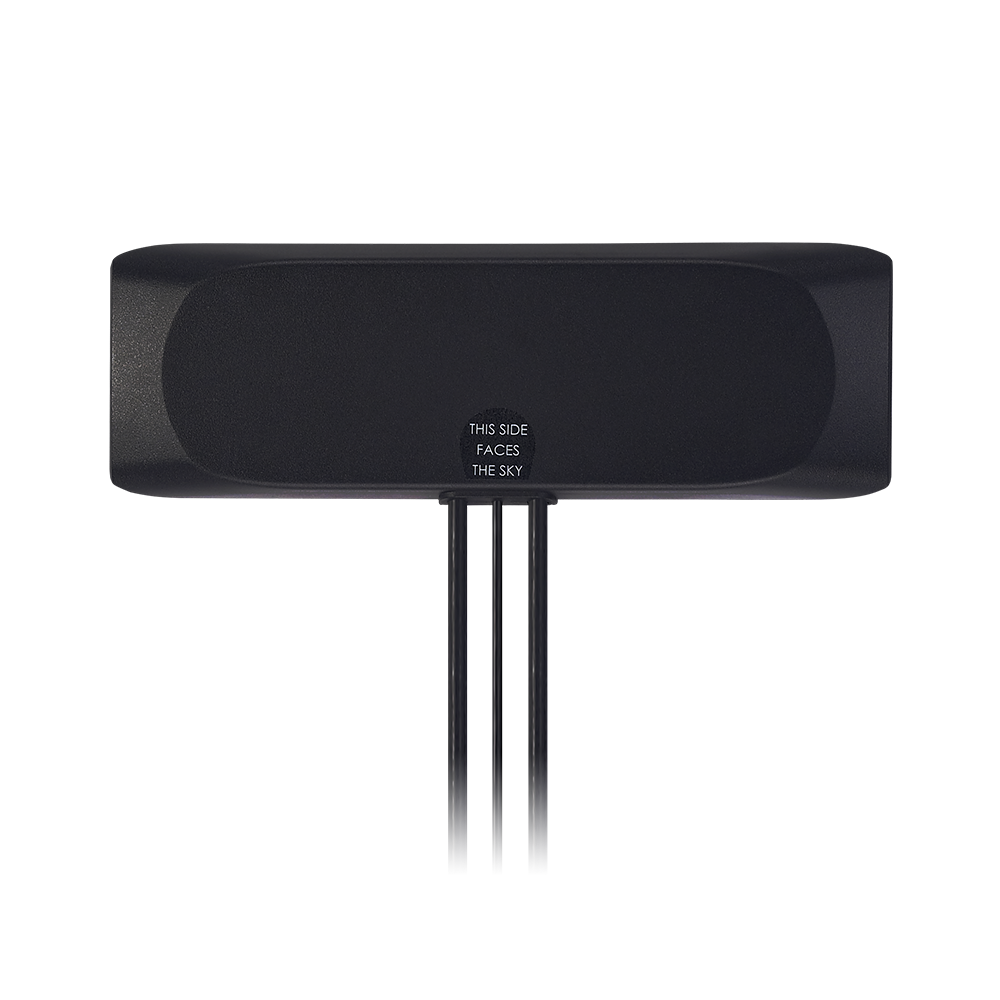

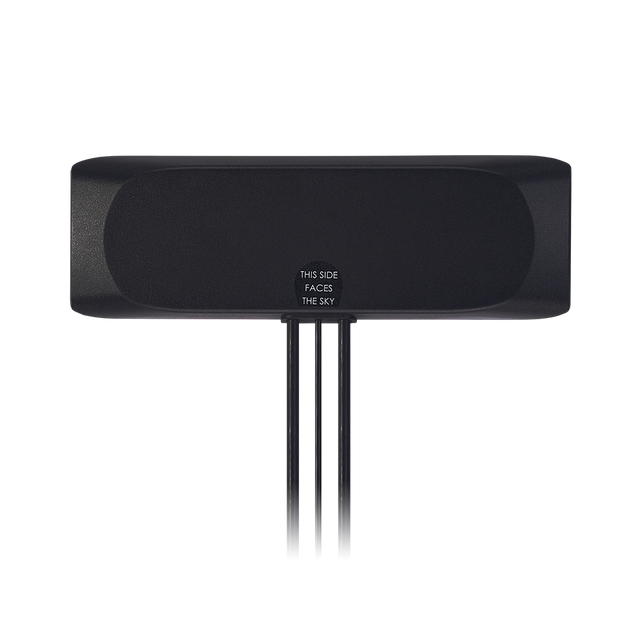

MA240.LBI.001 Antenna External 2xMIMO 4G/LTE, GNSS adhesive mount 3-in-1 Genesis IP65 for HD Video over LTE, First Responder and Emergency Services, Automotive Vehicle Tracking and Telematics

The Genesis MA240 is a low-profile, adhesive-mount antenna designed to combine reliable cellular connectivity with accurate satellite navigation in a single housing. With an omnidirectional design and an IP65 waterproof enclosure, it is well-suited to demanding M2M deployments.

It is intended to be mounted directly on glass or plastic in the interior of vehicles, making it a strong fit for transportation and mobile installations where stable throughput and location performance are required.

• 3-in-1 design: GNSS + dual LTE MIMO elements in one compact antenna
• Wide cellular coverage: supports 4G LTE with 3G/2G fallback
• Rugged build: IP65 rated waterproof enclosure
• Optimized for mobile use: designed for telematics and remote monitoring deployments

Connections

1x GNSS – GPS/GLONASS/Galileo 1575-1610MHz
2x 4G LTE (MIMO) 698-960MHz / 1710-2700MHz (supports 3G/2G fallback)

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP65
Dimensions: 205.8 x 68 x 12.7mm
Weight: 250g

GNSS

Frequency: 1575-1610MHz
Standards: GPS/GLONASS/Galileo
Polarization: RHCP
Impedance: 50Ω
VSWR: 1.5:1 Max
Passive Antenna Gain: GPS/GALILEO: 1.67dBi; GLONASS: 0.37dBi
LNA Gain: 30dB
DC Power Input: 3.3V
Noise Figure @3.3V: 1.7dB
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: RG-174

4G LTE (MIMO)

Frequency: 698 to 896/1710 to 2700MHz
Standards: 4G LTE (supports 3G fallback, 2G)
Impedance: 50Ω
VSWR: 2:1
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: TGC-200
