Description
This omni-directional, waterproof antenna is designed for high-performance 4G LTE connectivity in telematics, transportation, and remote monitoring applications. Its 2xMIMO configuration ensures high data throughput and reliable signal quality, making it ideal for demanding environments. The antenna is engineered for direct mounting on glass or plastic surfaces inside vehicles, providing a discreet and robust installation. Typical use cases include HD video over LTE, first responder and emergency services, and automotive connectivity. The high-grade 3M adhesive ensures secure attachment, while the IP65 rating offers protection against dust and water ingress.
Connections
2x 4G LTE MIMO (698–960 MHz, 1710–2690 MHz, 3300–5000 MHz, 5150–5850 MHz)
Connector & Cable
- Connector Type: SMA-Male
- Cable Length: 200cm
- Cable Type: TGC-200
Installation / Environmental
This antenna is designed for adhesive mounting on glass or plastic surfaces inside vehicles. The standard cable length is 200 cm using TGC-200 low-loss cable, with SMA-Male as the standard connector type. The antenna is fully IP65 rated for dust and water protection, ensuring reliable operation in harsh environments.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount
Type: Combination
Connection 1 - 4G LTE MIMO
Frequency: 698–960 MHz, 1710–2690 MHz, 3300–5000 MHz, 5150–5850 MHz
Impedance: 50 Ohm
VSWR: ≤3
Gain (Max): 3.47 dBi
Polarization: Linear
IP Rating: IP65
Dimensions: 205.8 x 68 x 12.7 mm
Cable Type: TGC-200
Cable Length: 200cm
Connector Type: SMA-Male

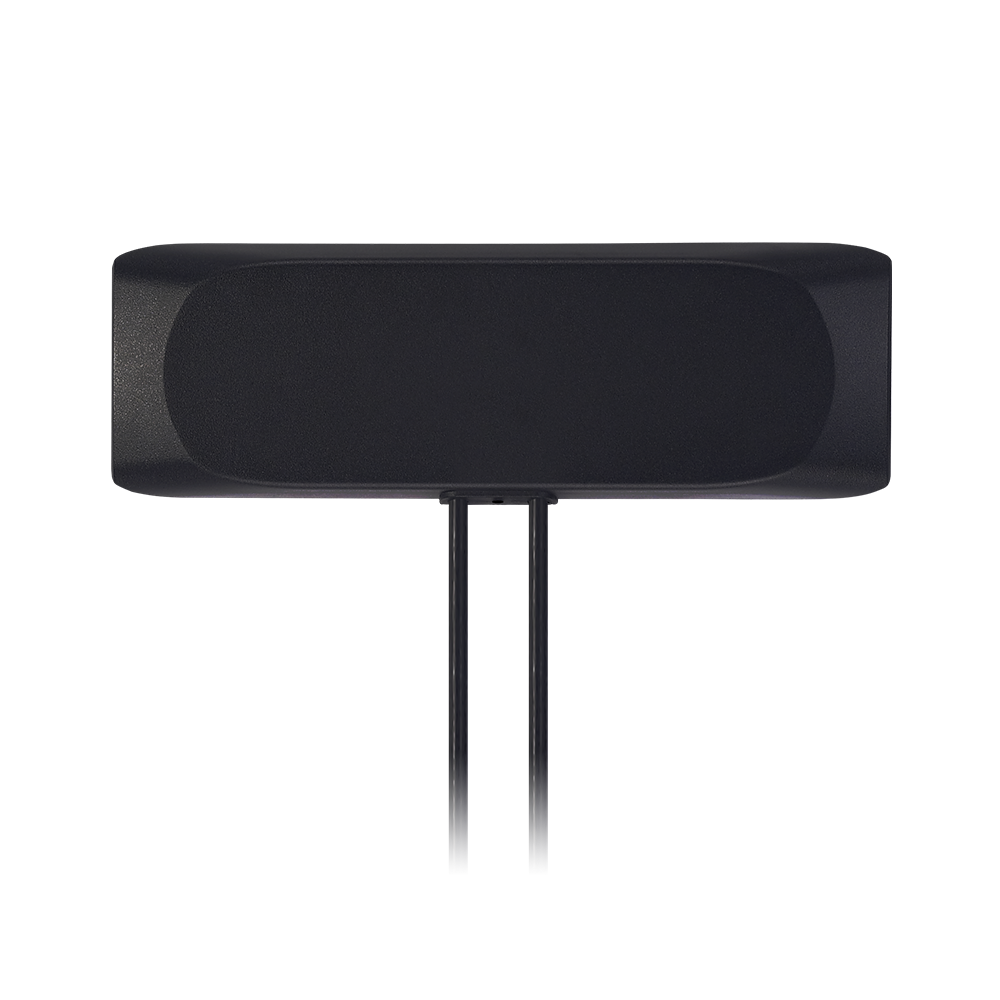

MA241.BI.001 4G 2xMIMO adhesive mount Antenna SMA-M 200cm IP65
