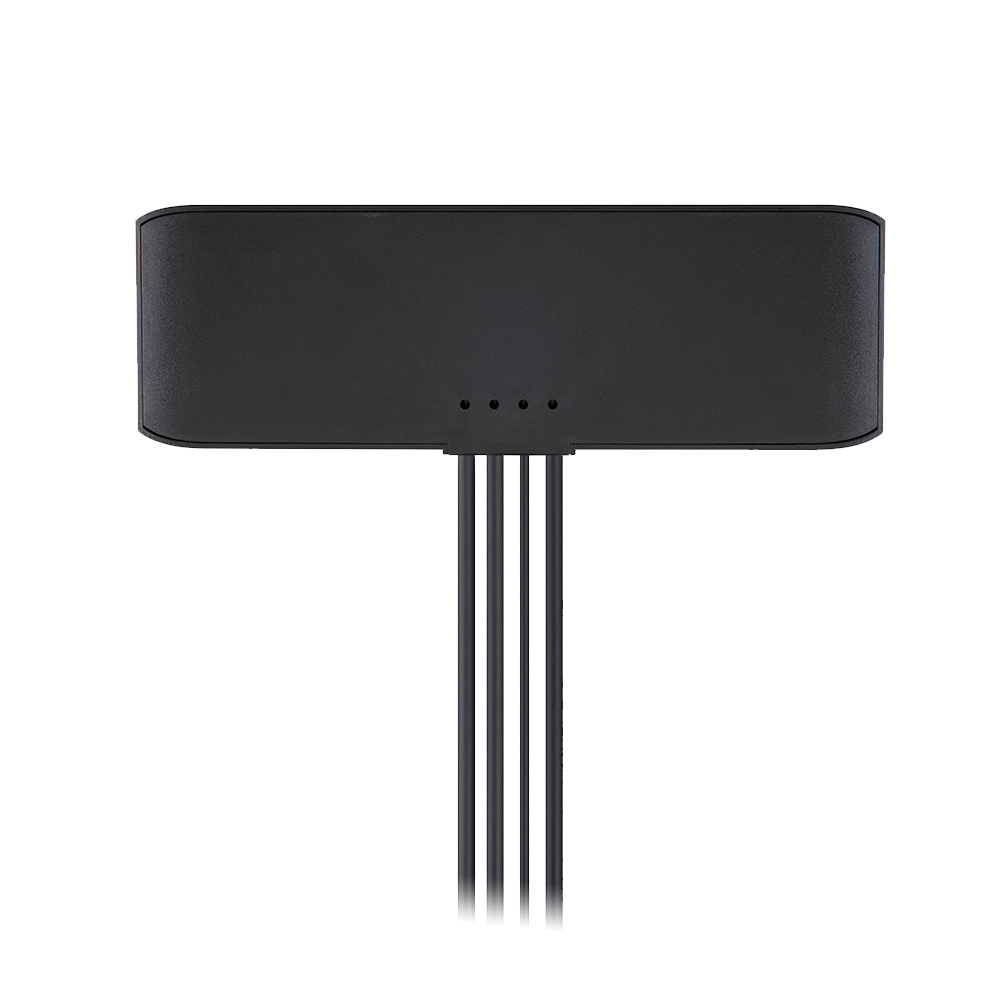

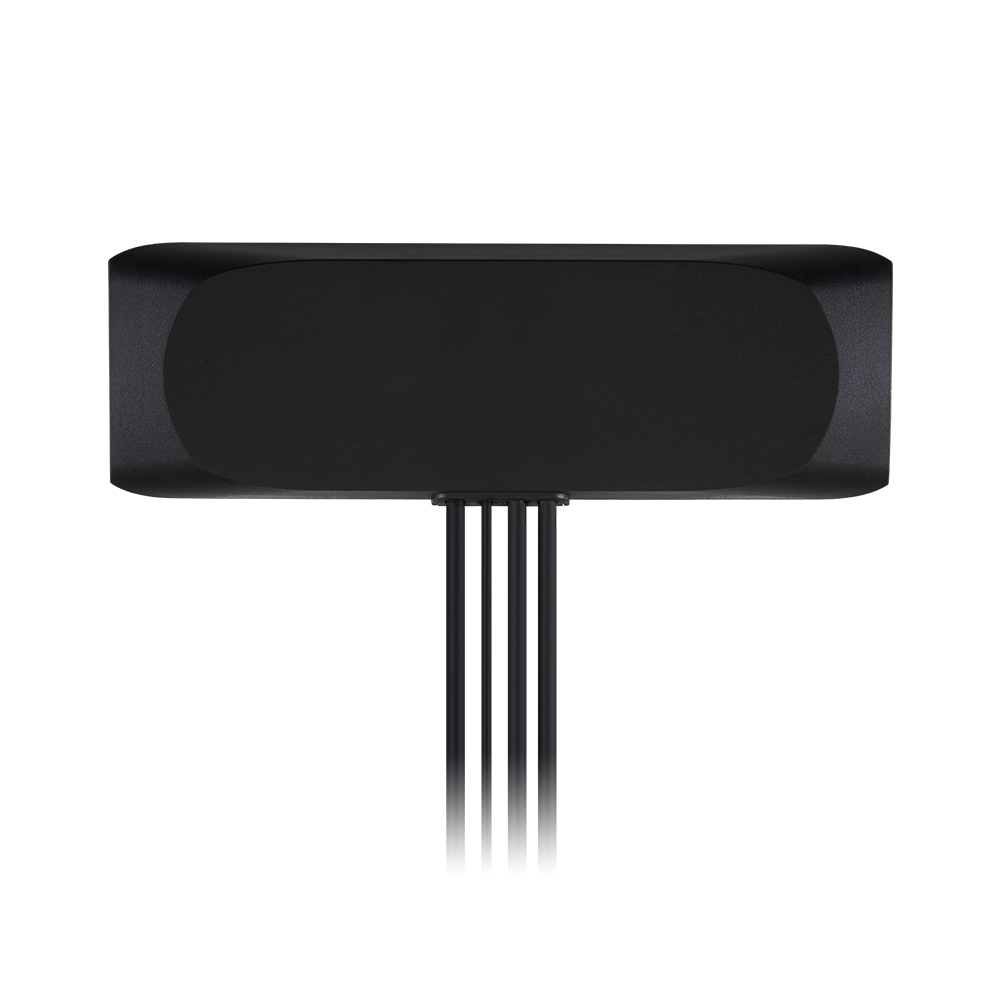

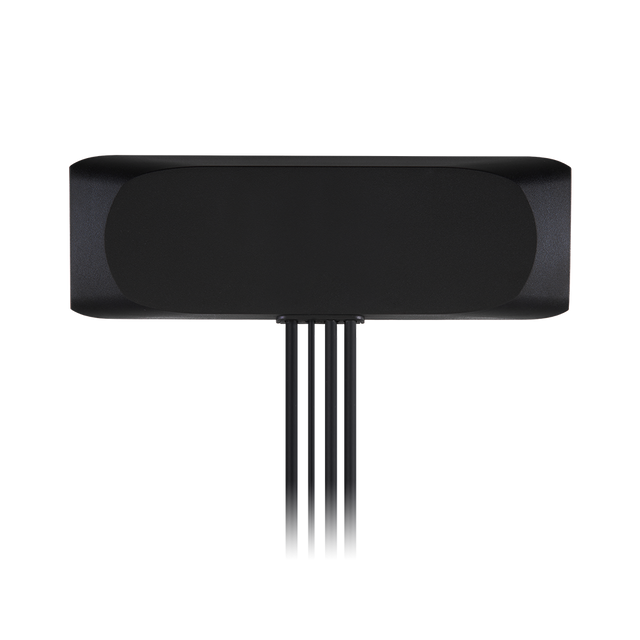

MA244.LBIC.002 Antenna External MIMO High Temperature Low-Profile 5G, GNSS, Wi-Fi adhesive mount Genesis 4-in-1 IP65 for Telematics, Transportation, Fleet Management, Autonomous Robotics

This high-temperature, low-profile 4-in-1 adhesive mount antenna integrates cellular MIMO, GNSS positioning, and dual-band Wi-Fi performance into a single rugged enclosure. Designed for demanding environments up to +85°C, it helps deliver reliable connectivity and tracking for mobile and industrial deployments.

• 4-in-1 combination design: integrates 2x cellular MIMO, 1x GNSS, and 1x dual-band Wi-Fi
• High-temperature capable: engineered for elevated operating conditions (up to +85°C)
• Rugged protection: IP65-rated enclosure for added durability
• Ideal use cases: telematics, transportation, remote monitoring, fleet management, and autonomous robotics

Connections

1x GPS-GLONASS
2x 5G/4G MIMO
1x Dual Band Wi-Fi®

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP65
Dimensions: 205.8 x 68 x 12.4mm RoHS & Reach Compliant
Weight: 330g

GNSS (GPS/GLONASS/Galileo)

Frequency: 1575.42MHz, 1602MHz
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 2.0:1
Passive Antenna Efficiency (%): 63.14, 67.16 (Without cable loss)
Passive Antenna Average Gain (dB): -2, -1.73 (Without cable loss)
Passive Antenna Peak Gain: 2.14, 2.24 (Without cable loss)
Connector Type: SMA(M) Straight
Cable Length: 100cm
Cable Type: RG-174

5G/4G MIMO (Cellular)

Quantity: 2x
Frequency: 600MHz - 6000MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Impedance: 50Ω
Polarization: Linear
VSWR: <5.8
Radiation Pattern: Omni-Directional
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: TGC-200

Dual Band Wi-Fi®

Frequency: 2.4GHz, 5.8GHz
Connector Type: RP-SMA(M)
Cable Length: 100cm
Cable Type: TGC-200
