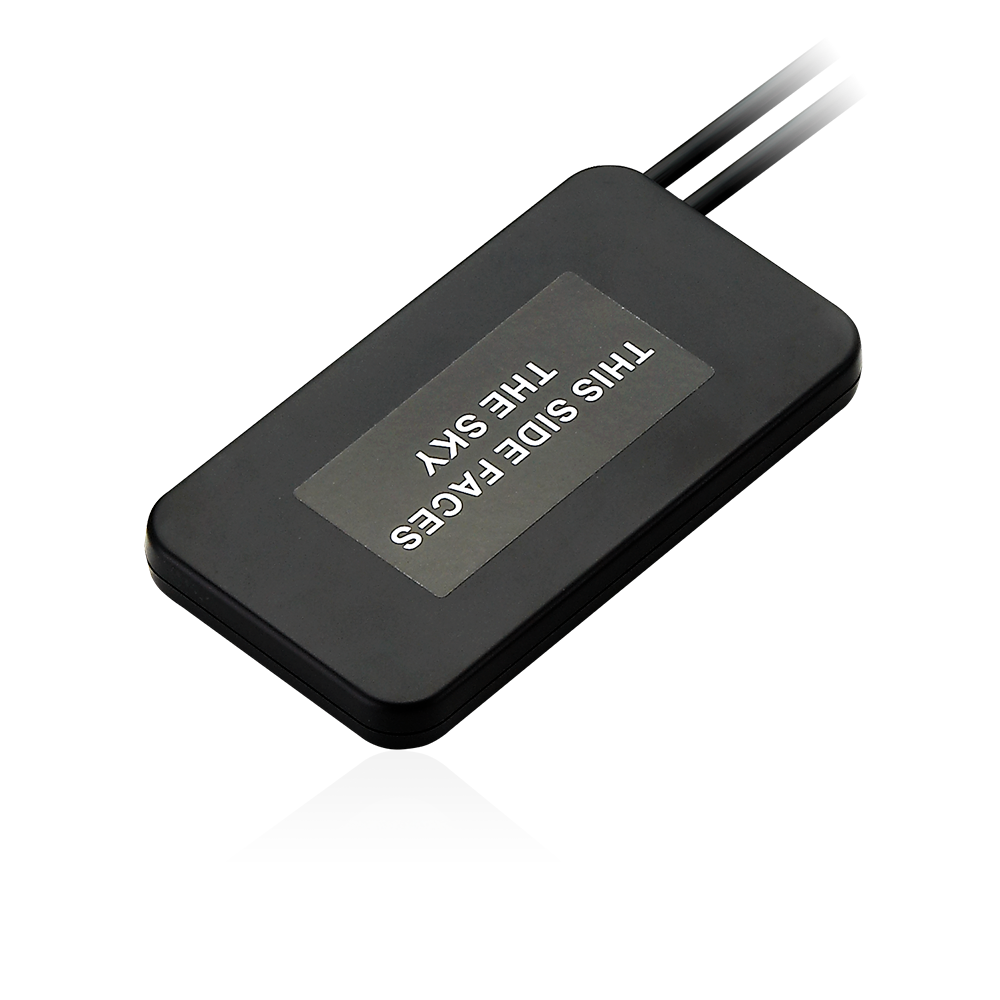

MA251.A.BI.001 Antenna External 2x2 MIMO 4G/LTE adhesive mount Sentinel IP67 for HD video over LTE, First Responder and Emergency Services, Automotive vehicle tracking, Telematics

The Sentinel MA251 is a compact, low-profile 2-in-1 cellular MIMO antenna designed for in-vehicle and telematics deployments where strong LTE performance is needed without a roof-mount solution. It supports worldwide 4G LTE bands and provides fallback coverage for common 3G and 2G networks, making it well-suited for transportation and remote monitoring use cases.

Its adhesive mounting design enables placement directly onto glass or plastic surfaces, providing a convenient in-cabin mounting approach while maintaining high efficiency and strong MIMO performance.

Connections

2x LTE MIMO Antennas
4G Allowing Fallback to 3G & 2G

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Polarization: Linear
VSWR: 2
Frequency: 700MHz - 3000MHz
Gain (Max): 3.15
Dimensions: 139.27*76.27*14mm
Weight: 235g

4G/3G/2G MIMO 1 Antenna

Frequency (MHz): 698~803, 824~894, 880~960, 1710~1880, 1850~1990, 1920~2170, 2490~2690
Connector Type: SMA(M) ST
Cable Length: 200cm
Cable Type: LTE: CFD-200

4G/3G/2G MIMO 2 Antenna

Frequency (MHz): 698~803, 824~894, 880~960, 1710~1880, 1850~1990, 1920~2170, 2490~2690
Envelope Correlation Coefficient: All Bands < 0.3
Return Loss: < -6dB
Input Power: 5W
Connector Type: SMA(M) ST
Cable Length: 200cm
Cable Type: LTE: CFD-200
