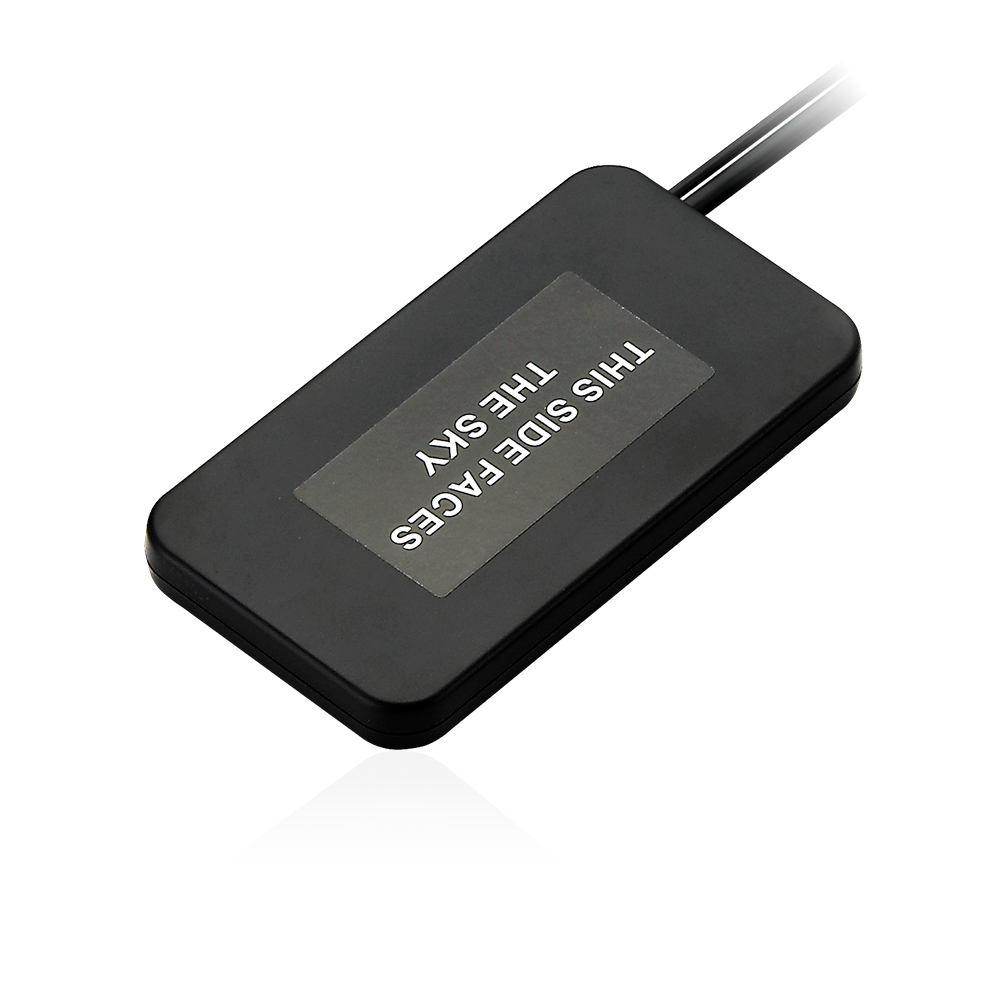

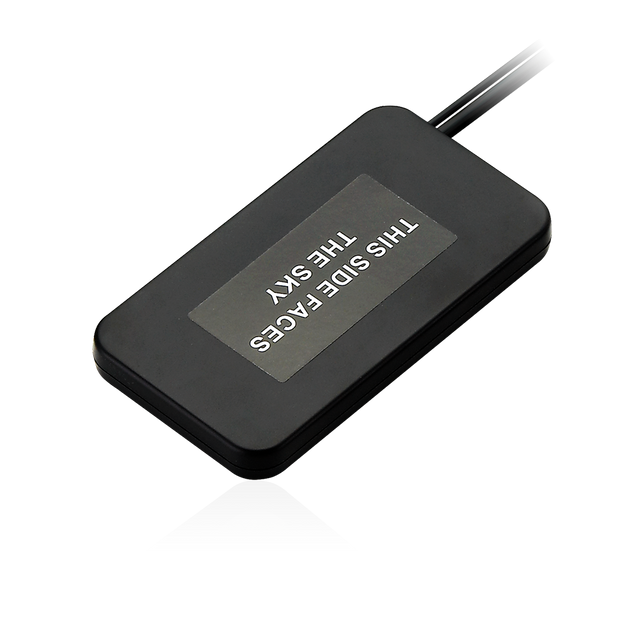

MA252.A.LB.001 Antenna External 4G/LTE, GNSS adhesive mount Sentinel 2-in-1 IP67 for HD video over LTE, First Responder and Emergency Services, Automotive vehicle tracking, Telematics

The Sentinel MA252 is a compact 2-in-1 external antenna that combines cellular LTE connectivity with active GNSS positioning in a single low-profile housing. Designed for vehicle and M2M deployments, it supports reliable connectivity and accurate positioning while enabling an in-cabin mounting option on glass or plastic surfaces.

• 2-in-1 design: cellular + GNSS in one housing for simplified integration
• Vehicle-focused mounting: intended to mount directly to glass or plastic using adhesive
• Ruggedized enclosure: IP67-rated for demanding environments
• Use cases: telematics, vehicle tracking, emergency services connectivity, and LTE video applications

Connections

1x LTE (4G/3G/2G) Antenna
1x GPS-GLONASS-GALILEO-BeiDou Active Antenna

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Dimensions: 139.27*76.27*14mm
Weight: 280g

LTE (4G/3G/2G)

Frequency: 698~803 MHz, 703~803 MHz, 824~894 MHz, 880~960 MHz, 1710~1880 MHz, 1850~1990 MHz, 1920~2170 MHz, 2305~2360 MHz, 2490~2690 MHz, 3400~3600 MHz
Polarization: Linear
Return Loss: < -6dB
Input Power: 5W
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: CFD-200

GNSS (Active)

Frequency: BeiDou: 1561.098±2.046 MHz; GPS/GALILEO: 1575.42±1.023 MHz; GLONASS: 1602±5 MHz
Polarization: RHCP
VSWR: < 2:1
Gain @3V (dB): 28.06 (1561.098±2.046 MHz), 28.63 (1575.42±1.023 MHz), 27.84 (1602±5 MHz)
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG-174
