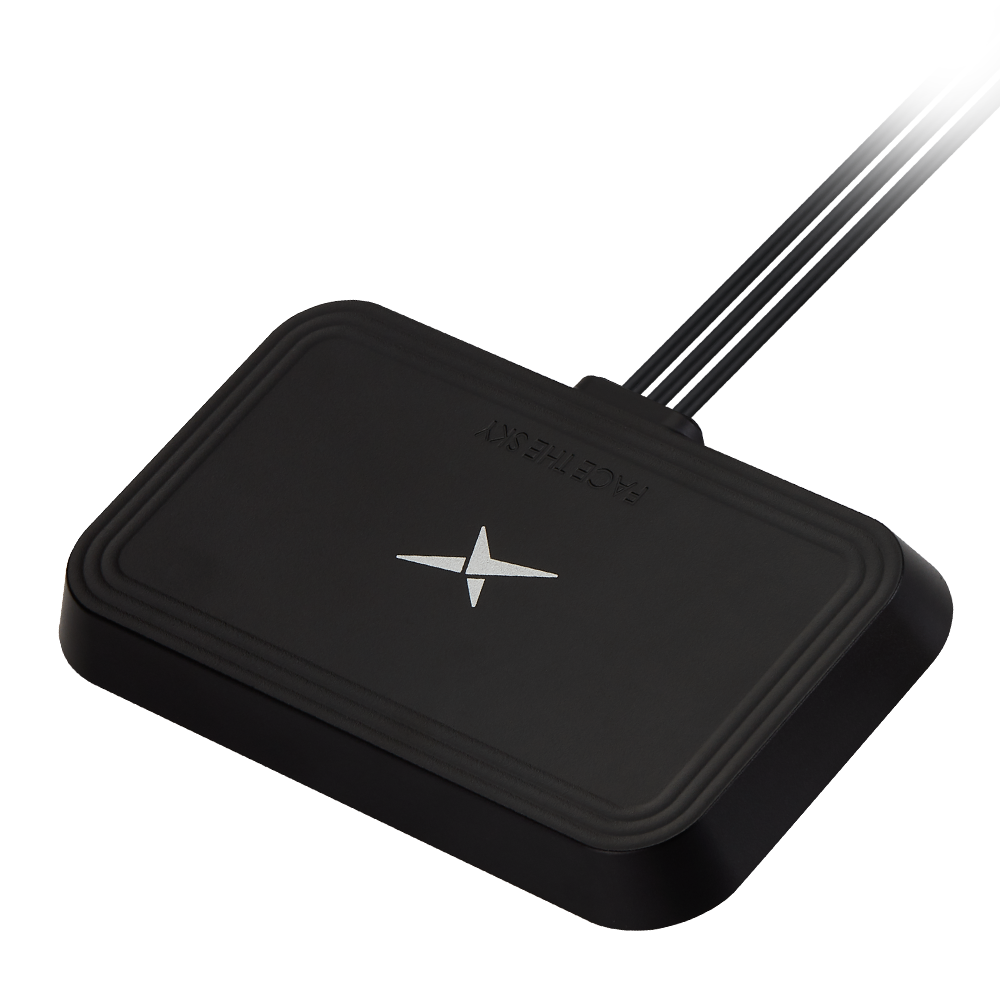

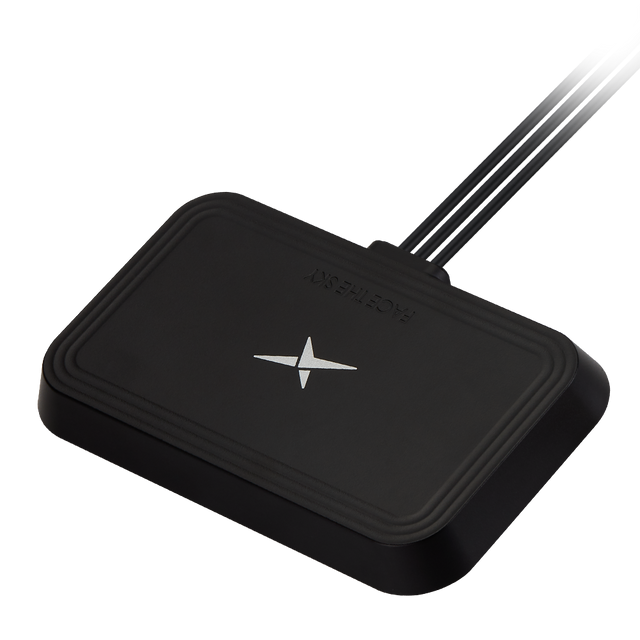

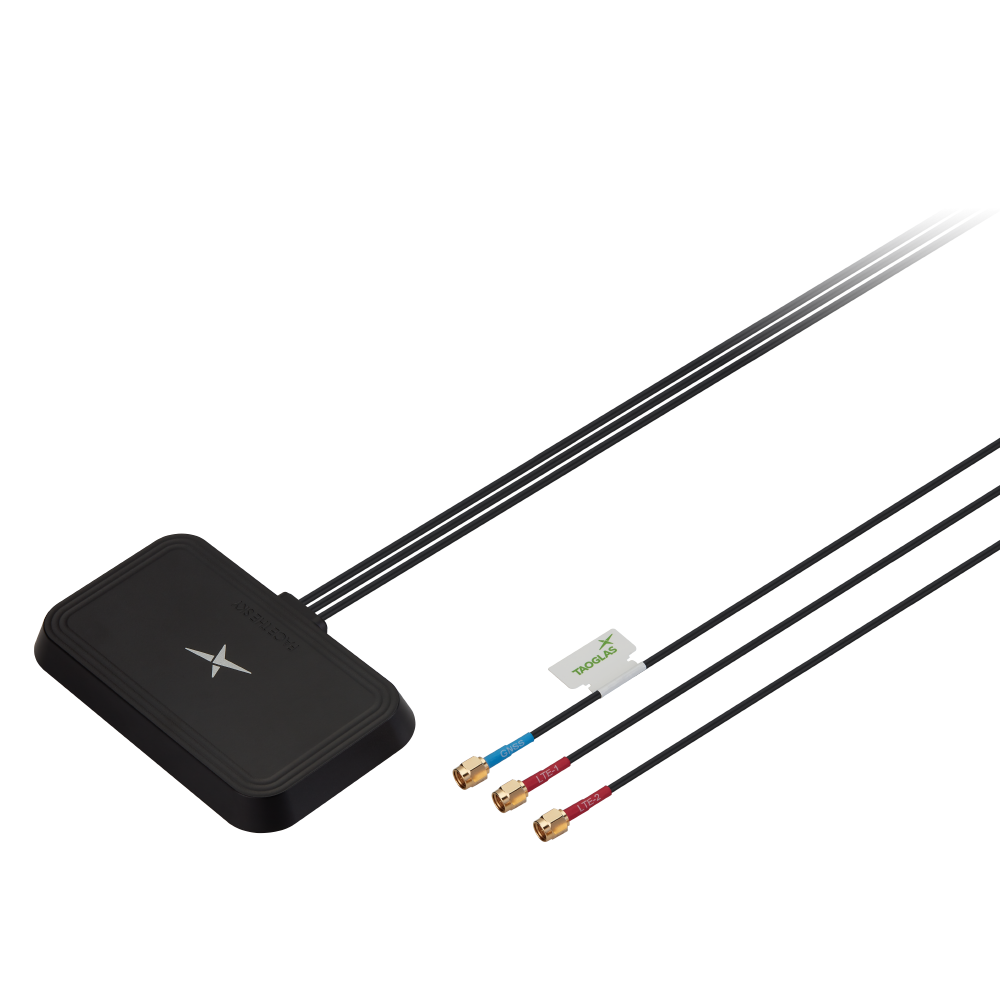

MA256.A.LBI.001 Antenna Low-Profile High-Gain External 4G/LTE, GNSS adhesive mount 3-in-1 Sentinel for Automotive Vehicle Tracking, Telematics, Video Streaming, Robotics/Autonomous

This low-profile 3-in-1 combination antenna integrates two cellular MIMO elements plus a GNSS element to support reliable connectivity and positioning in a compact, adhesive-mount form factor.

Designed to mount directly onto glass or plastic using automotive-grade adhesive, it offers a convenient in-cabin alternative to larger permanent or roof-mount antenna solutions while still supporting multi-network cellular operation and multi-constellation satellite navigation.

• Compact, low-profile housing suited to discreet installations
• Adhesive mounting for quick placement on glass or plastic
• 2x cellular MIMO to improve throughput and link reliability
• Multi-constellation GNSS for positioning use cases

Typical applications include:

• Automotive Vehicle Tracking
• Telematics
• Video Streaming
• Robotics/Autonomous

Connections

2x 4G MIMO 600-3000MHz
1x GPS/GLONASS/BeiDou/Galileo

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: Cat M1/LTE-M, NB-IoT
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Dimensions: 128*76*12mm Cables: 2m RG-174 GNSS, 2m TGC-1.5DS 4G MIMO Connectors: SMA(M)ST Ro
Weight: 130 g

GNSS (Active)

Frequency: 1561-1602 MHz
Standards: GPS/GLONASS/BeiDou/Galileo
Polarization: RHCP
Impedance: 50Ω
VSWR (max.): 3.0:1 (1561MHz), 2.0:1 (1575.42MHz), 2.0:1 (1602MHz)
Passive Antenna Efficiency (%): 42.6 (1561MHz), 56.89 (1575.42MHz), 61.9 (1602MHz)
Passive Antenna Gain at Zenith (dBic): 1.08 (1561MHz), 2.11 (1575.42MHz), 2.08 (1602MHz)
Polarization: RHCP
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG-174

4G/LTE MIMO (2x)

Frequency: 617-698, 698-806, 824-960, 1427-1518, 1710-2200, 2490-2690 MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA / Cat M / NB-IoT
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
Max Input Power: 2W
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-1.5DS
