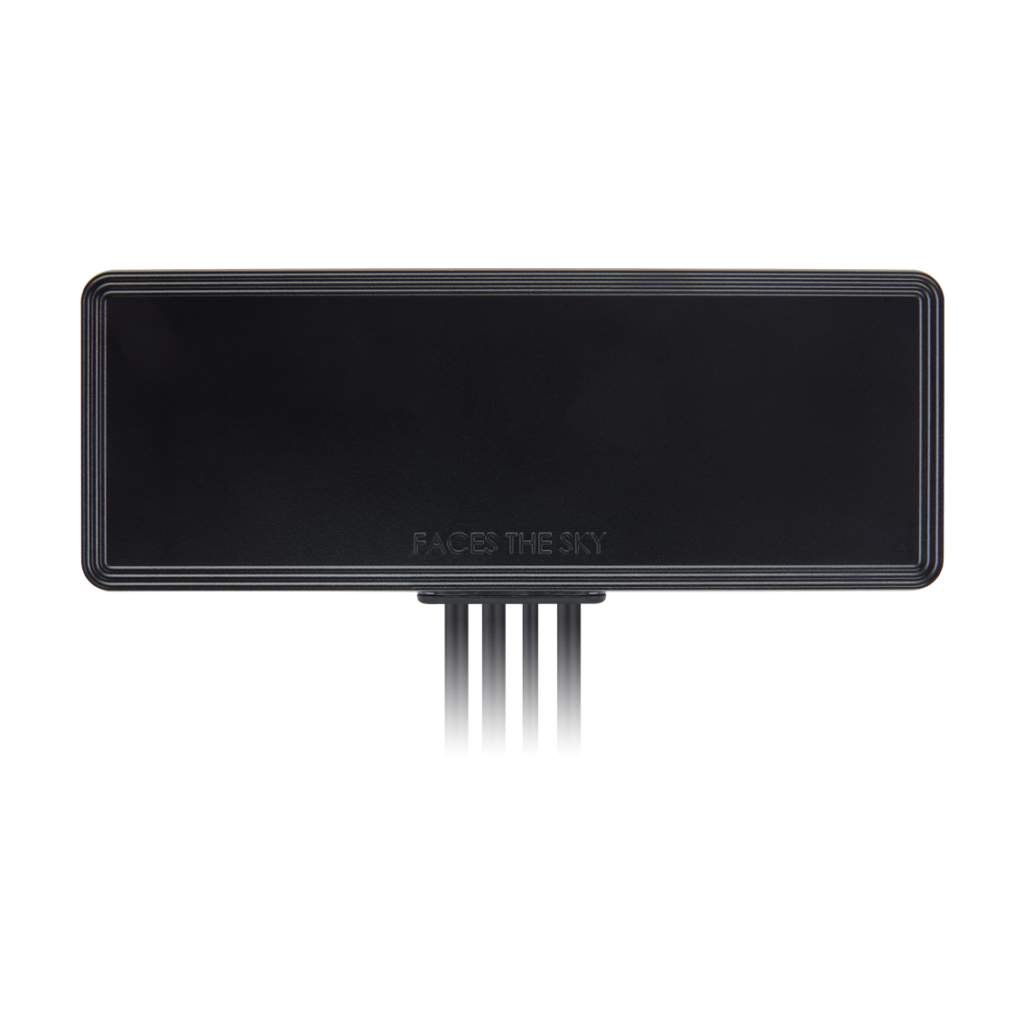

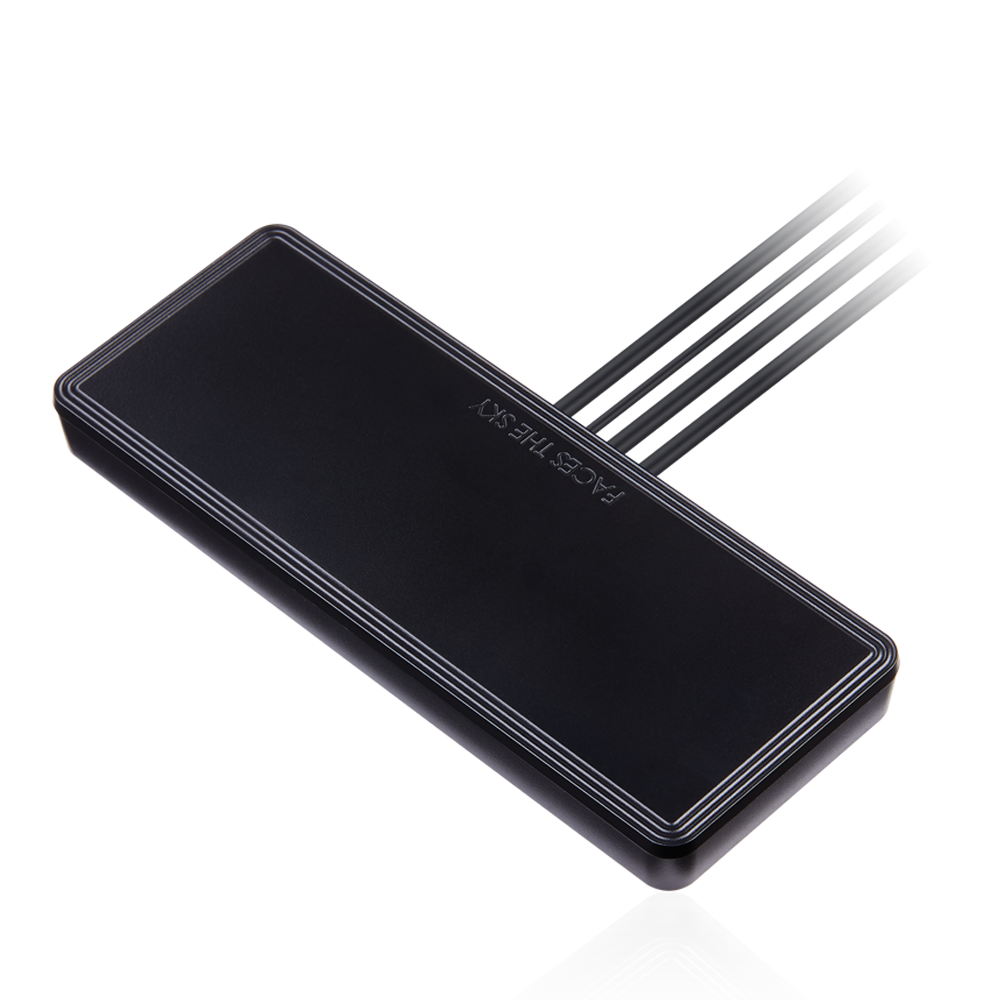

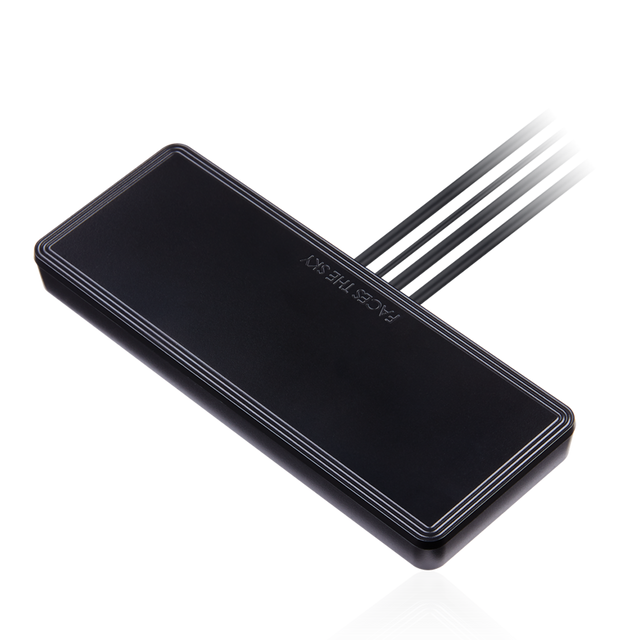

MA284.LBIC.001 Antenna External Low-Profile 5G, GNSS, Wi-Fi adhesive mount 4-in-1 for Next Generation OEM Automotive Connectivity, Multimedia, Navigation and Telematics Systems, V2V, V2X and Fleet Management Applications, Real-time HD Video Streaming

This low-profile, adhesive-mount 4-in-1 combination antenna integrates GNSS, dual cellular MIMO, and dual-band Wi-Fi to support modern multi-radio devices where space, durability, and RF performance are critical.

Designed for demanding mobile and remote deployments, it delivers efficient performance with high isolation and an omnidirectional pattern for the cellular and Wi-Fi elements, while the GNSS element is tuned for strong multi-constellation positioning performance to improve tracking stability in challenging urban environments.

• 4-in-1 integration: GNSS + 2x cellular MIMO + dual-band Wi-Fi
• Cellular coverage: Supports 4G with fallback to 3G/2G and includes operation on selected 5G bands
• Rugged enclosure: IP67-rated housing for harsh environments
• Ideal for: Vehicle telematics, connected mobility, real-time uplink/downlink data and video use cases

Connections

2x Cellular MIMO (4G with fallback to 3G/2G; selected 5G bands)
1x Multiband GNSS (GPS/GLONASS/BeiDou/Galileo)
1x Wi-Fi (2.4 & 5.8GHz)

Technical Specifications

Operating Temperature: -40°C to +90°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Adhesive Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: 151.8 * 59 * 13mm RoHS & REACH Compliant
Weight: 180 g
Impedance: 50 Ω
VSWR: 2.1
Gain (Max): 5 dBi

Cellular (2x LTE MIMO / selected 5G bands)

Standards: 4G MIMO with fallback to 3G/2G; 5G bands 74,75,76 and 42,43,48,78
Frequency: 698~803 MHz, 824~894 MHz, 880~960 MHz, 1427-1518 MHz, 1710~1880 MHz, 1850~1990 MHz, 1920~2170 MHz, 2300~2690 MHz, 3300-3800 MHz
Polarization: Linear
Impedance: 50 Ω
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC200

Wi-Fi (Dual Band)

Frequency: 2400~2500 MHz, 4900~5850 MHz
Polarization: Linear
Impedance: 50 Ω
Return loss: < -6 dB
Connector Type: RP-SMA(M)
Cable Length: 200cm
Cable Type: TGC200

GNSS (Active)

Standards: GPS/ GLONASS/BeiDou/Galileo
Frequency: BeiDou: 1561.098 ± 2.046MHz; GPS: 1575.42 ± 1.023MHz; GLONASS: 1602 ± 5MHz
Polarization: RHCP
Impedance: 50 Ω
Bandwidth: 12.5 MHz min
Return Loss: <-10 dB
Passive Gain at Zenith: +2.3 dBi typ. (GPS L1 and GLONASS L1)
Input Voltage: Min:1.8V Typ. 3.0V Max: 5.5V
LNA Gain: 30 dB
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG174
