Description

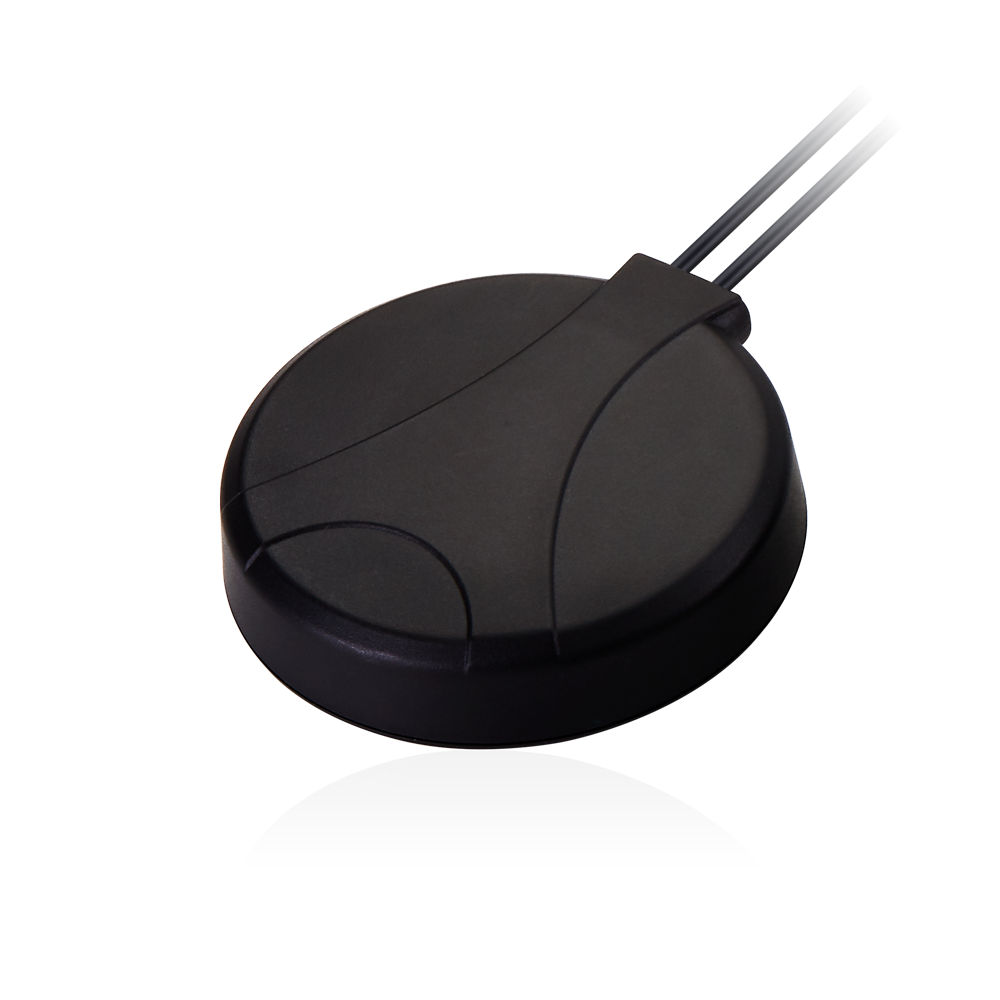

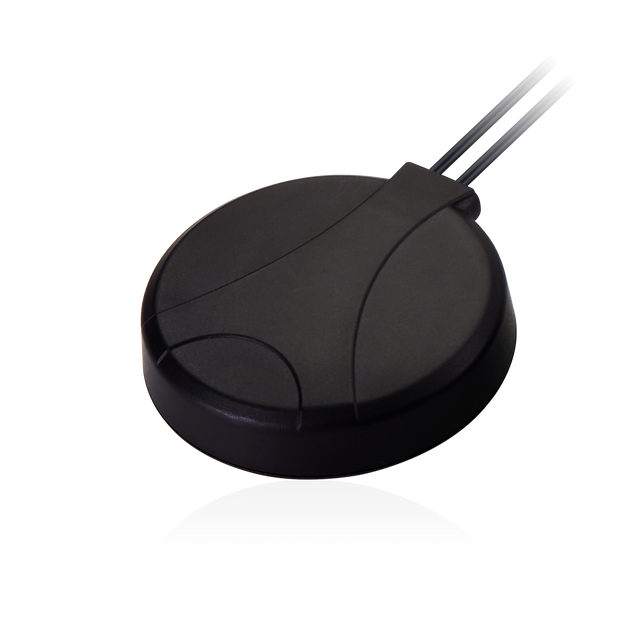

This compact combination antenna integrates cellular and GNSS performance in a single rugged housing to simplify vehicle connectivity deployments such as AVL and fleet management systems.
Designed for quick placement on suitable metallic surfaces, it supports reliable positioning and wide-area cellular connectivity while using a sealed enclosure design for demanding environments.
- Combination design: integrates cellular + GNSS to reduce antenna count and simplify installations
- GNSS support: GPS L1 and GLONASS L1 coverage for positioning use cases
- Cellular support: penta-band cellular coverage for broad compatibility
- Rugged enclosure: sealed design to help protect in harsh operating conditions
Connections
1x LTE Antenna
1x Active GNSS Antenna – GPS L1 and GLONASS L1
Technical Specifications
Operating Temperature: -40°C to +85°C
Cellular Technologies: 4G/LTE
Location: External
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Dimensions: 77*21mm LTE: 3M RG-174 Cable and SMA(M)ST Connector GNSS: 3M RG-174 Cable and SM
Weight: 122g
4G LTE/Cellular
Frequency: 698-824, 824-894, 880-960, 1710-1880, 1850-1990, 1920-2170, 2490-2690 MHz
Standards: LTE, GSM/GPRS/CDMA/PCS/DCS/WCDMA/UMTS/HSPA
Impedance: 50 Ω
Return loss: < -3 dB
Polarization: Vertical
Connector Type: SMA(M) Straight
Cable Length: 300cm
Cable Type: RG-174
GNSS (Active)
Frequency: GPS L1: 1575.42 MHz ± 1.023 MHz; GLONASS L1: 1602 MHz ± 1.023 MHz
Return loss: < -10 dB
Polarization: RHCP
Impedance: 50 Ω
LNA Gain: up to 31 dB
Input Voltage: Min: 1.8V; Typ: 3.0V; Max: 5.5V
Noise Figure: 3.5dB (typ.)
Connector Type: SMA(M) Straight
Cable Length: 300cm
Cable Type: RG-174
