Description

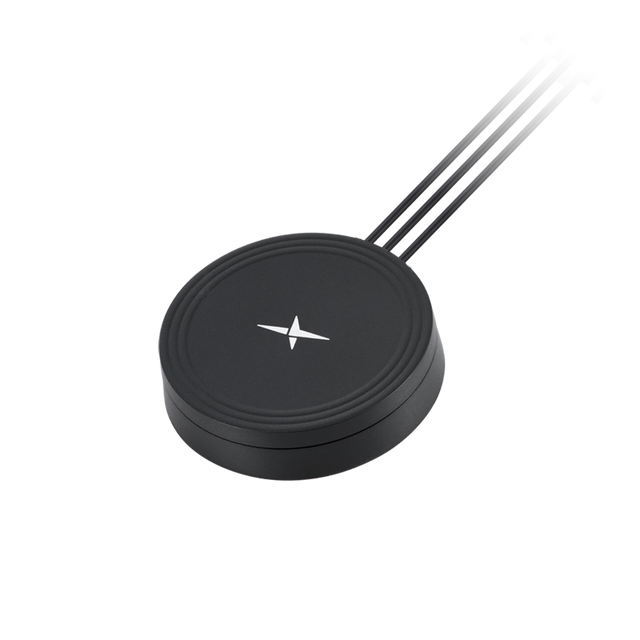

This low-profile puck antenna integrates multi-function connectivity in a compact housing designed for quick placement using either adhesive or magnetic mounting. It combines multi-band cellular support for modern MIMO systems with GNSS reception for reliable positioning in space-constrained installs.
Ideal for devices and vehicles where drilling or permanent mounting is not preferred, and where a clean, low-visibility external antenna solution is needed.
- 3-in-1 design: combines 2x cellular MIMO elements plus GNSS in a single puck form factor
- Flexible mounting: magnetic or adhesive mounting options to suit different installation needs
- Use cases: telematics and fleet management, gateways and routers, digital signage and point of sale terminals, first responder and emergency services
Customization options are available on request.
Connections
2x 5G/4G MIMO 600-6000MHz
1x GNSS L1 Band
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Adhesive Mount, Magnet Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Dimensions: Diameter 80mm * 18.1mm 2m Low Loss TGC-1.5DS cable with SMA(M) connectors Custom
Weight: 113g
5G/4G MIMO (2x)
Frequency: 600MHz - 6000MHz
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 10W
Peak Gain (Max): 7.75 dBi
VSWR: <2
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-1.5DS
GNSS L1 (Active)
Standards: BeiDou, GPS, GLONASS
Frequency: 1559-1563 MHz (BeiDou_B1); 1563-1587 MHz (GPS_L1); 1593-1610 MHz (GLONASS_G1)
Impedance: 50 Ω
Polarization: RHCP
Radiation Pattern: Directional
Peak Gain (Max): 3.38 dBi (Ground Plane, GPS_L1)
LNA Gain (dB): 31.3 (1561MHz), 30.6 (1575MHz), 29.9 (1602MHz)
Noise Figure (dB): 1.9, 1.8, 2.0
Input Voltage (V): + 1.8 to 5.5
Current Consumption (mA): 9 ± 3
Return Loss (dB): < -10
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-1.5DS
