MA322.A.001 Antenna External MIMO Router 5G adhesive/magnetic mount puck IP67 for Telematics, Gateways and Routers, Digital Signage, First Responder and Emergency Services

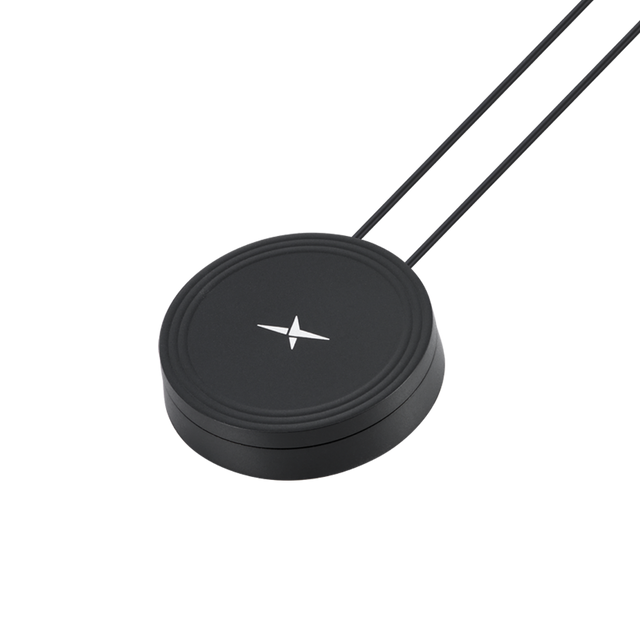

The Comet MA322 is a compact, low-profile puck antenna designed for MIMO cellular systems. Its adhesive/magnetic mounting base supports fast, non-destructive installations where drilling is not permitted, such as leased vehicles.

• 2-element MIMO design for improved cellular performance and reliability
• Adhesive or magnetic mounting for flexible placement on vehicles or equipment
• Rugged waterproof enclosure suited to demanding deployments
• Typical uses: telematics, gateways/routers, digital signage, and emergency-service communications

Connections

2x 5G/4G MIMO 600-6000MHz

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
Mounting: Adhesive Mount, Magnet Mount
Type: Combination
IP Rating: IP67
Frequency: 617MHz - 5925MHz
Impedance: 50Ω
Polarization: Linear
VSWR: <2
Gain (Max): 4.2 dBi
Dimensions: Diameter 80mm * 18.1mm 2m Low Loss TGC-1.5DS cable with SMA(M) connectors Custom
Weight: 113g
Material: ASA

5G/4G MIMO (MIMO 1)

Frequency: 617MHz - 5925MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA / 3G / 2G
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-1.5DS

5G/4G MIMO (MIMO 2)

Frequency: 617MHz - 5925MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA / 3G / 2G
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-1.5DS
