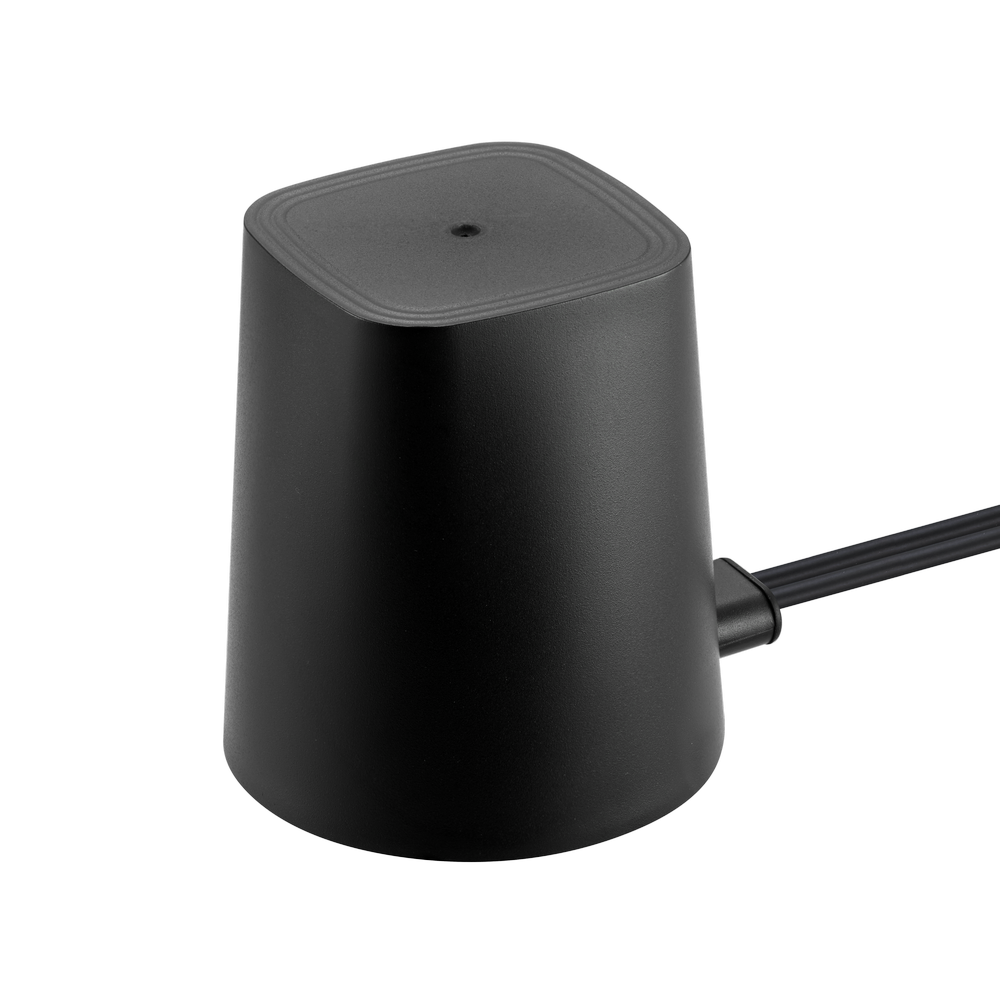

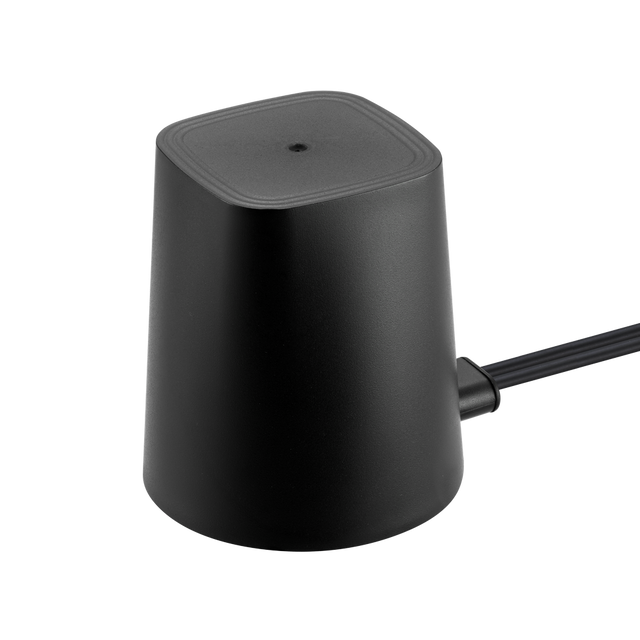

MA341.A.LB.001 Antenna External MIMO 5G, GNSS magnetic mount 2-in-1 for Smart Metering and Remote Monitoring, Digital Signage, Transportation and Telematics

High-performance 2-in-1 combination antenna combining cellular and GNSS in a compact, rugged housing for reliable connectivity in demanding deployments.

• External, magnetic-mount design for fast placement on metal surfaces
• Cellular + GNSS in one compact enclosure to reduce installation complexity
• IP67-rated enclosure with a durable UV-resistant housing and integrated sealing to help prevent water ingress
• Designed for tight installs with an internal mounting approach and compact threaded interface

Typical use cases include smart metering and remote monitoring, digital signage, and transportation/telematics.

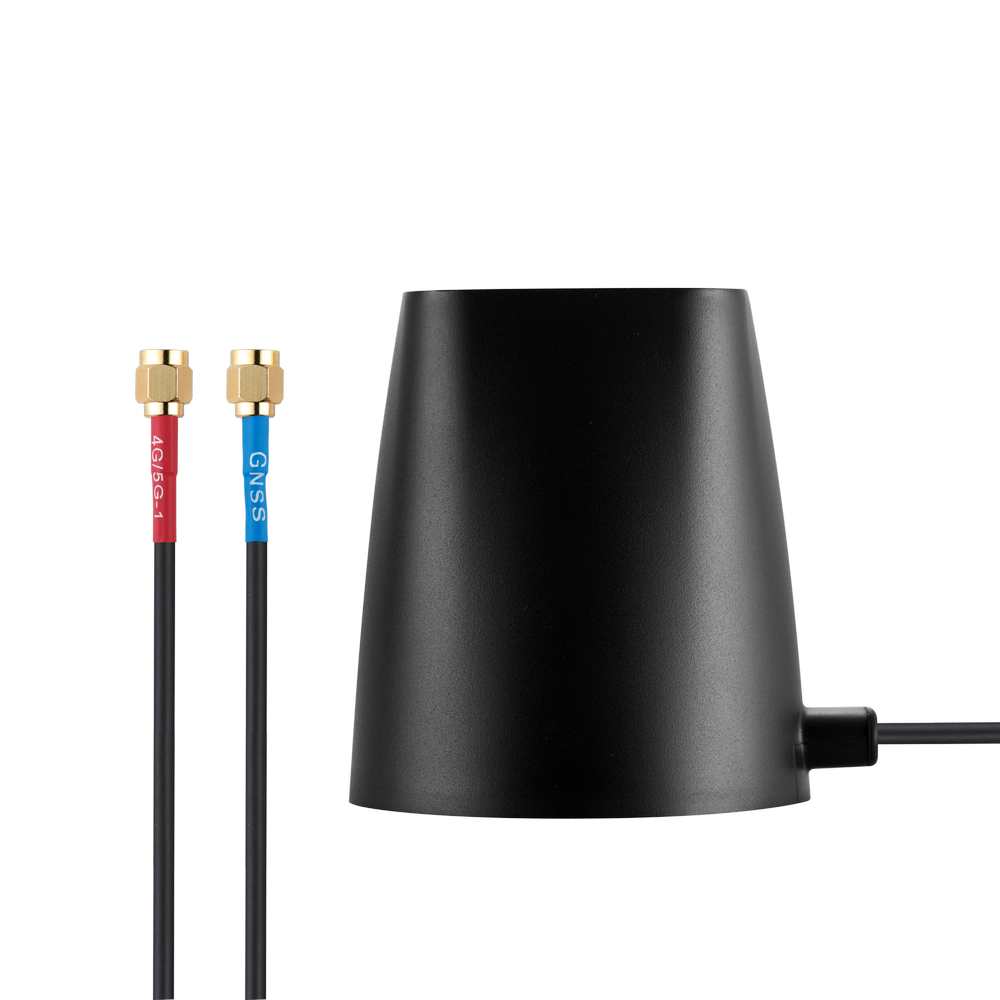

Connections

1x LTE Antenna covering 600-6000MHz
1x GNSS Antenna

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Magnetic Mount, Multi-Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Dimensions: Ø58 x 65 mm
Weight: 161g

5G/4G LTE (MIMO)

Frequency: 600-6000 MHz
Standards: 5GNR/4G/3G/2G, NB-IoT, Cat-M
Polarization: Linear
Impedance: 50 Ω
VSWR: 2:1
Radiation Pattern: Omni
Max. Input Power: 2W
Peak Gain (Max): 6.84 dBi
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG-174

GNSS (Active)

Frequency: 1561-1603 MHz
Standards: GPS, GLONASS, Galileo, BeiDou, QZSS (Regional), SBAS
Polarization: RHCP
Impedance: 50 Ω
VSWR (Max): 3:1
LNA Gain (dB): 29.8-31.7
Noise (dB): 2.15-2.5
Voltage Range: 1.8-5.5V
Current Consumption: 9 ± 3
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG-174
