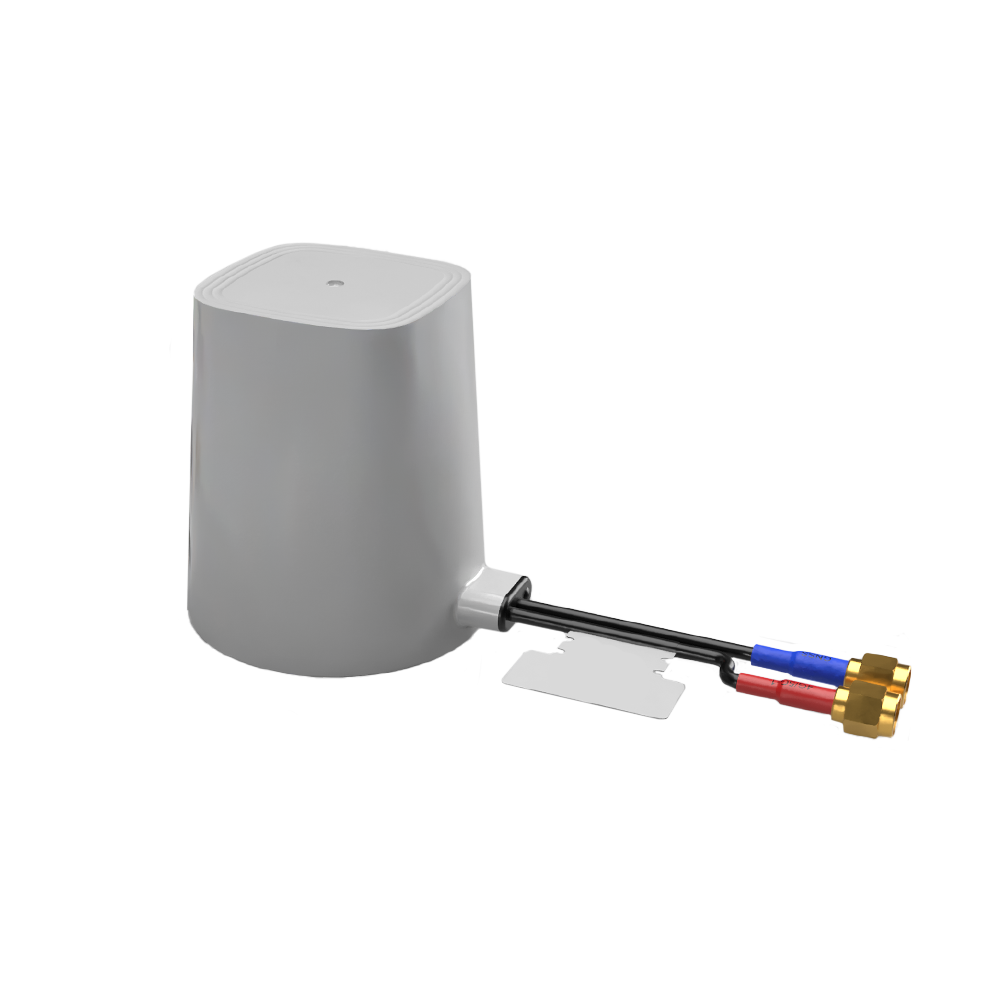

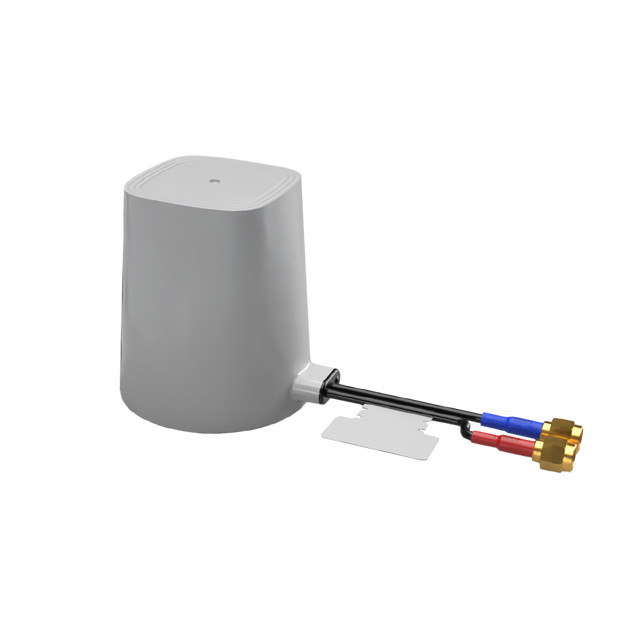

MA341.W.LB.001 Antenna External 5G, GNSS magnetic mount IP67 for Smart Metering and Remote Monitoring, Digital Signage, Transportation and Telematics

This compact 2-in-1 magnetic-mount combination antenna integrates cellular and GNSS performance into a rugged, low-visual-impact housing for connected assets.

• 2-in-1 design: Supports 5G/4G LTE connectivity alongside active GNSS positioning.
• Rugged outdoor-ready build: IP67-rated enclosure designed to resist water ingress, vandalism, and impact.
• Compact form factor: Suited to installations where space is minimal while still requiring reliable external performance.

Typical applications include:

• Smart Metering and Remote Monitoring
• Digital Signage
• Transportation and Telematics

Connections

1x LTE Antenna covering 600-6000MHz
1x GNSS Antenna

Technical Specifications

Operating Temperature: -40°C to +85°C
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Magnetic Mount, Multi-Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: Ø58 x 65 mm
Weight: 161g

LTE / 5GNR / 4G (Wideband)

Frequency: 617-698, 698-824, 824-960, 1427-1518, 1710-2200, 2300-2690, 3300-5000, 5150-5925 MHz
Standards: 5GNR/4G/LTE/3G/2G, NB-IoT, Cat M
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG174

GNSS (Active)

Frequency: 1561-1603 MHz
Standards: GPS, GLONASS, Galileo, BeiDou, QZSS, SBAS
Polarization: RHCP
Impedance: 50 Ω
VSWR (max.): 3:1
LNA Gain (dB): 31.7 (1561MHz), 31.2 (1575.42MHz), 29.8 (1603MHz)
LNA Noise (dB): 2.29 (1561MHz), 2.15 (1575.42MHz), 2.5 (1603MHz)
Voltage Range: 1.8-5.5V
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG174
