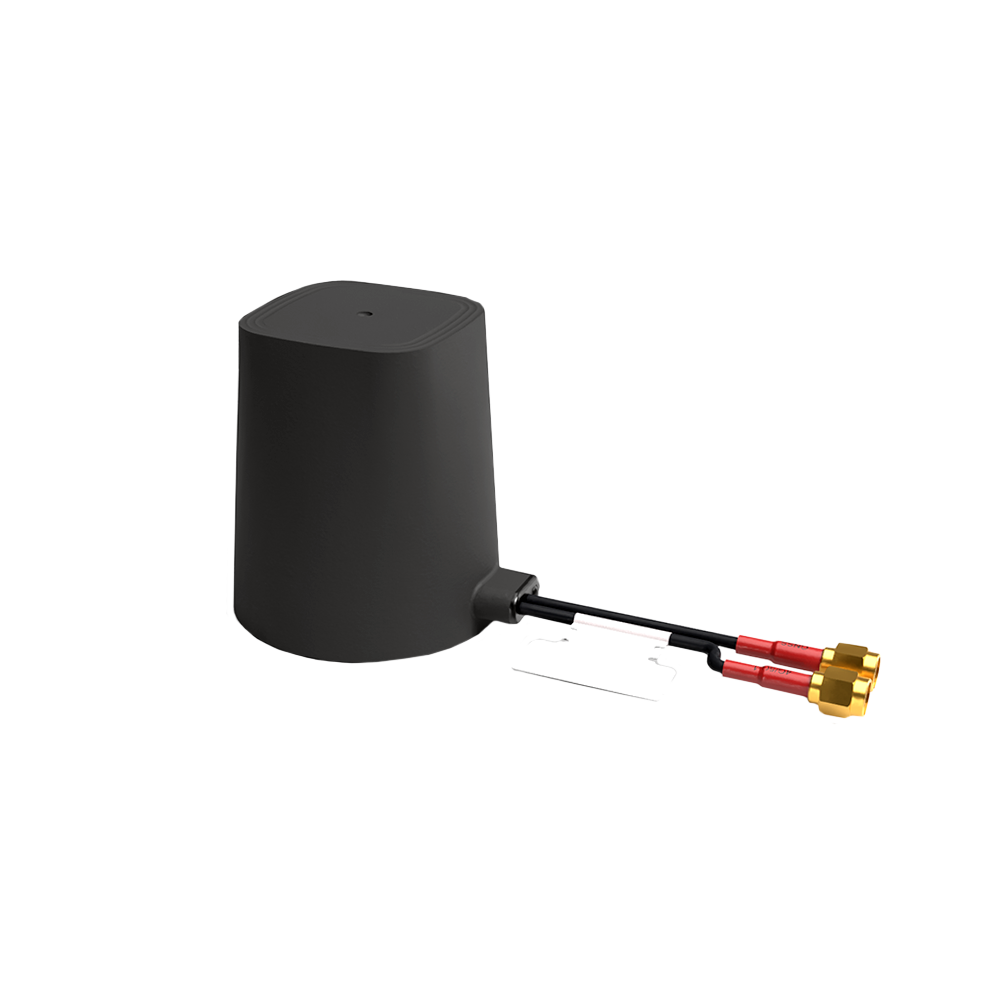

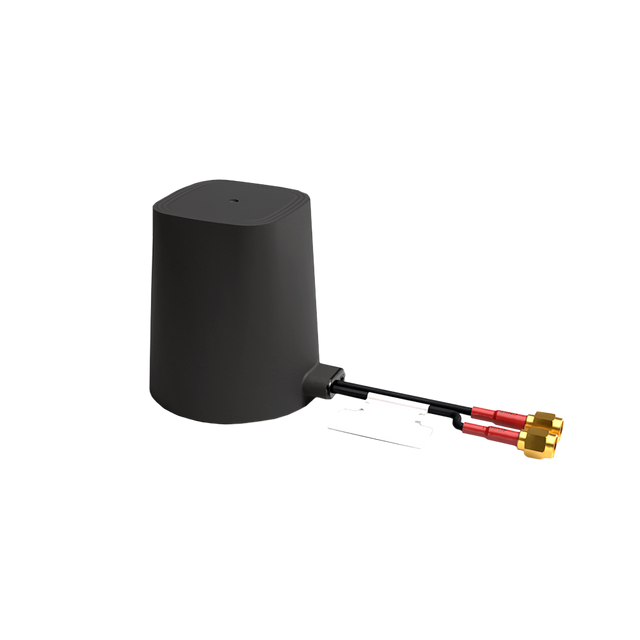

MA342.A.BI.001 Antenna External MIMO 5G, 4G/LTE magnetic mount IP67 for Smart Metering and Remote Monitoring, Digital Signage, Transportation and Telematics

This compact 2-in-1 magnetic-mount combination antenna is designed for high-performance cellular connectivity with MIMO capability in a robust, low-visibility housing.

• Wideband cellular coverage: Supports global cellular operation including sub-6GHz 5G FR1 coverage with 4G LTE and legacy fallback support.
• Rugged outdoor-ready housing: IP67-rated enclosure with UV-resistant ASA material and an integrated O-ring to help prevent water ingress beneath the antenna.
• Compact magnetic mounting: Low-profile form factor suitable for externally mounted assets where durable, consistent performance is required.

Typical applications include: Smart Metering and Remote Monitoring, Digital Signage, Transportation and Telematics.

Connections

2x 5G/4G LTE MIMO 600-6000MHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Magnetic Mount, Multi-Mount
Type: Combination
IP Rating: IP67
Frequency Range: 600MHz - 6000MHz
Impedance: 50 Ω
VSWR: 2:1
Polarization: RHCP, Linear
Material: ASA
Dimensions: Ø58 x 65 mm
Weight: 161 g
RoHS: Yes
Gain (Max): 6.84 dBi

5GNR/4G LTE MIMO (2x)

Frequency: 617-698, 698-824, 824-960, 1427-1518, 1710-2200, 2300-2690, 3300-5000, 5150-5925 MHz
Radiation Pattern: Omni
Max. Input Power: 2W
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG-174
