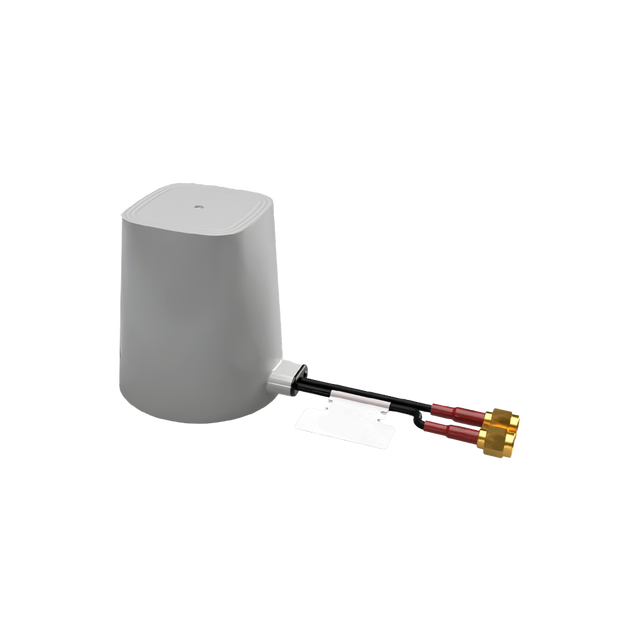

MA342.W.BI.001 Antenna External 2x LTE MIMO 5G, Wi-Fi magnetic mount 2-in-1 for Smart Metering and Remote Monitoring, Digital Signage, Transportation and Telematics

This compact magnetic-mount antenna is a high-performance 2-in-1 solution designed to deliver reliable wideband connectivity for demanding outdoor and mobile assets. It supports 5G/4G MIMO performance across global cellular bands, with coverage extending into the 5 GHz range used by Wi-Fi applications.

The rugged, UV-resistant enclosure is IP67-rated for protection against water ingress and is built to withstand impact and vandalism. An integrated rubber O-ring helps prevent water ingress beneath the antenna, and the low-profile threaded design supports installation where space is limited.

Typical applications include:

• Smart Metering and Remote Monitoring
• Digital Signage
• Transportation and Telematics

Connections

2x 5G/4G MIMO 600-6000MHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Magnetic Mount, Multi-Mount
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: Ø58 x 65 mm
Weight: 161g

5GNR/4G MIMO (2x)

Frequency: 600MHz - 6000MHz
Impedance (Ohm): 50
VSWR: 2:1
Polarization: Linear
Radiation Pattern: Omni
Max. Input Power: 2W
Gain (Max): 6.84
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG-174
