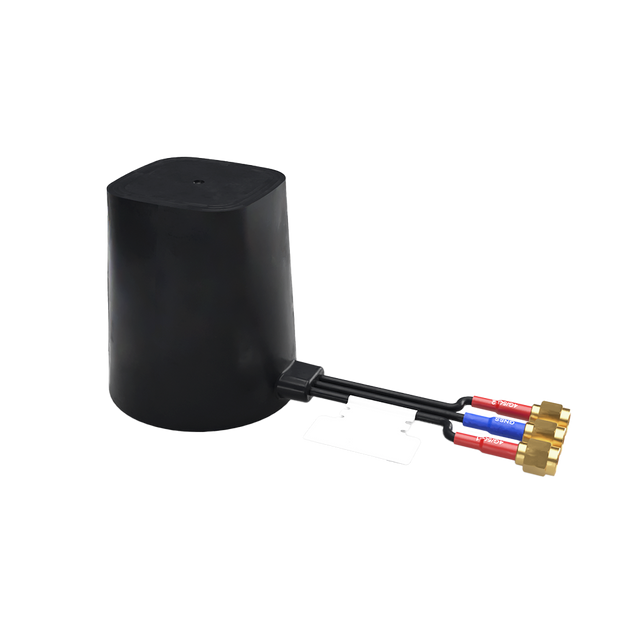

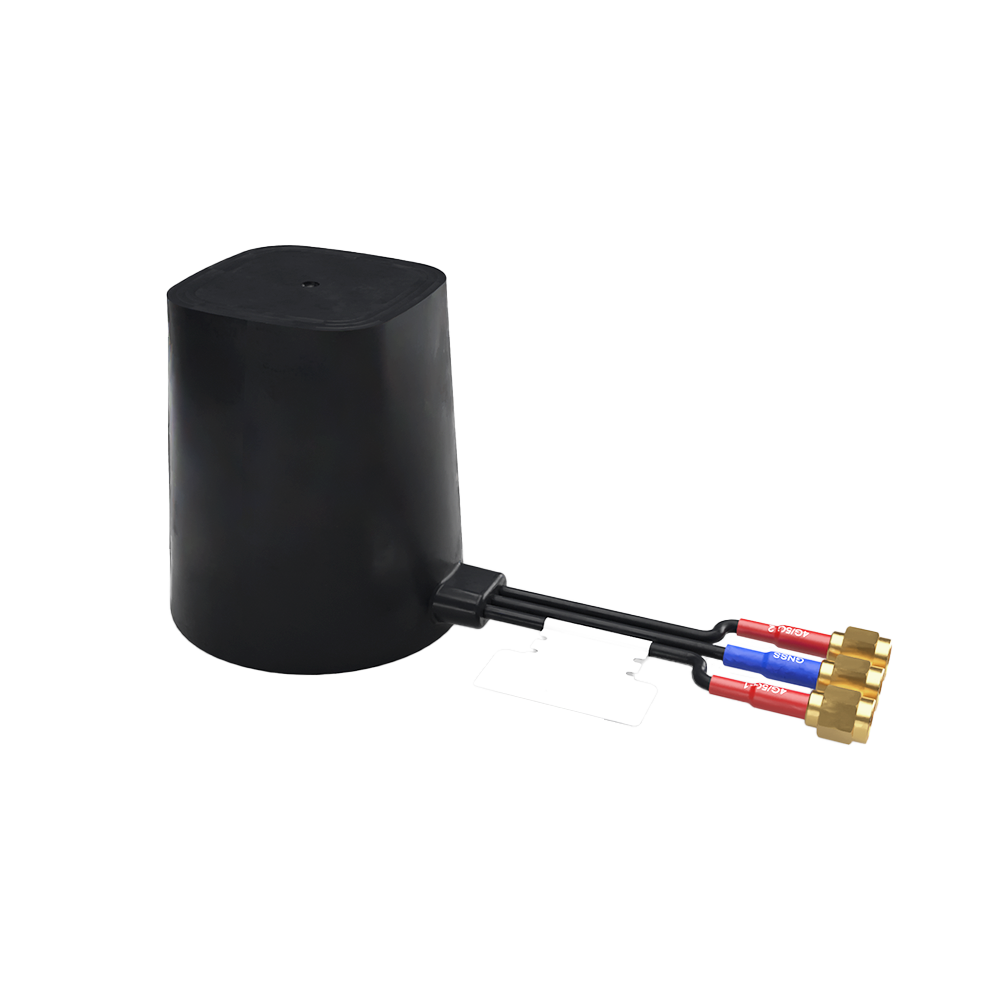

MA343.A.LBI.001 Antenna External Low-Profile IP67 5G, GNSS magnet mount 3-in-1 for Smart Metering and Remote Monitoring, Digital Signage, Transportation and Telematics

High Performance 3-in-1 Magnetic Mount Combination Antenna with GNSS and 2x 5G/4G MIMO

This compact 3-in-1 magnetic mount antenna integrates multiconstellation GNSS alongside 2x cellular MIMO coverage to support reliable positioning and broadband connectivity in a single, rugged housing.

• 3-in-1 design: Combines GNSS with 2x wideband cellular MIMO for simplified device integration
• Rugged enclosure: IP67-rated, UV-resistant ASA housing designed to withstand harsh outdoor environments
• Stable GNSS performance: Consistent gain and radiation patterns for GPS/GLONASS/Galileo
• Wideband cellular support: Covers global sub-6 GHz cellular bands with fallback where required

Typical applications include:

• Smart Metering and Remote Monitoring
• Digital Signage
• Transportation and Telematics

Connections

2x 5G/4G MIMO 600-6000MHz
1x GNSS (GPS-GLONASS)

Installation / Environmental

The IP67 rated enclosure is made from a durable, UV resistant ASA material that makes it resistant to vandalism or impact. An integrated rubber O-ring under the enclosure prevents water ingress under the antenna. It is mounted from the inside of the user device enclosure and the small thread allows for installation in situations where space is minimal.

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Magnet Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP67
Dimensions: Ø58 x 65 mm
Weight: 161g
Impedance: 50Ω

5G/4G LTE MIMO

Frequency: 600MHz - 6000MHz
Standards: 5G/4G/LTE/3G/2G, NB-IoT, Cat-M
Polarization: Linear
VSWR: 2:1
Max. Input Power: 2W
Radiation Pattern: Omni
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG-174

GNSS (Active)

Frequency: 1561-1603 MHz
GNSS Bands: L1
Polarization: RHCP
Impedance: 50Ω
VSWR (Max): 3:1
LNA Gain (dB): 31.7
Voltage Range: 1.8-5.5V
Current Consumption (mA): 9 ± 3
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: RG-174
