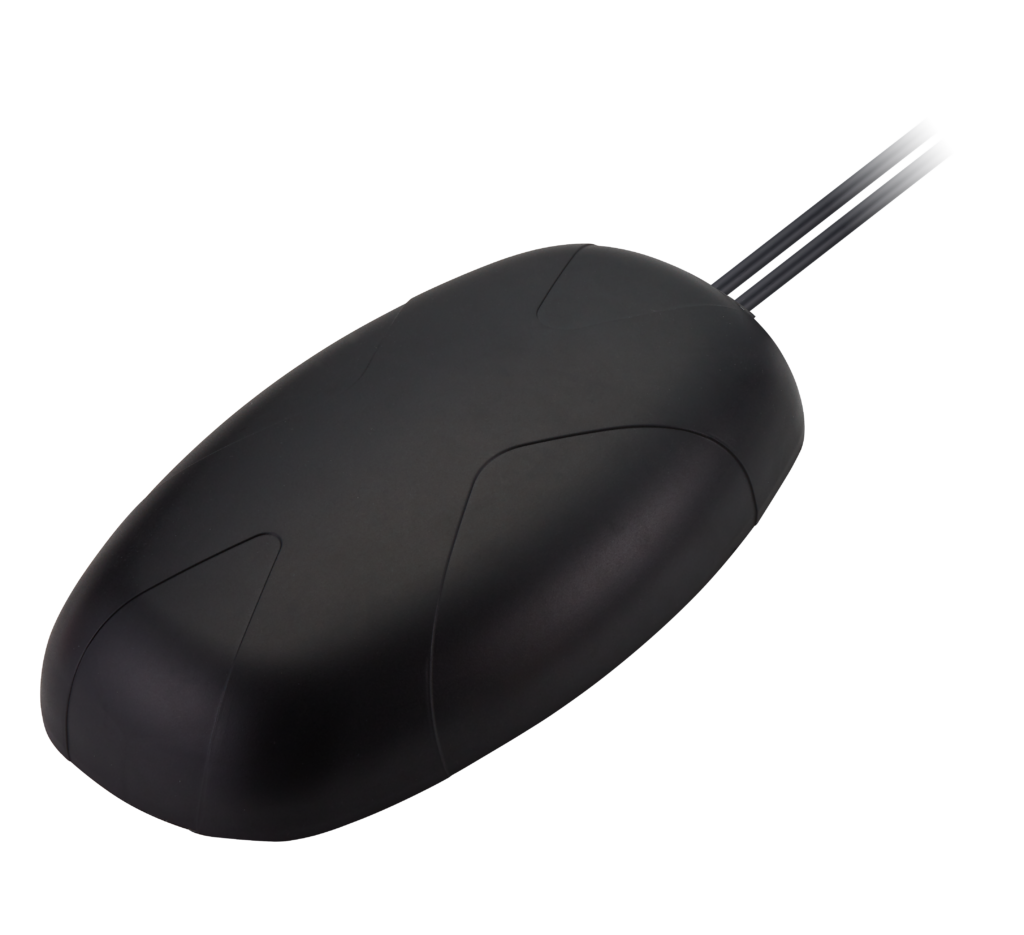

MA351.A.BI.001 Antenna Outdoor External Router High-Gain 2x MIMO 5G, 4G/LTE, GNSS magnetic mount Steedan for Next Generation OEM Automotive Connectivity, Multimedia, Navigation and Telematics Systems, V2V, V2X and Fleet Management Applications

Steedan is a low-profile 2-in-1 magnetic mount combination antenna designed for vehicle roofs, outdoor building installations, and heavy equipment applications where drilling is not feasible.

The ruggedized enclosure is IP65-rated and built for demanding environments. The magnetic base is designed for mounting to steel surfaces, and a soft foam cushion helps protect the mounting surface during installation and removal. The internal MIMO elements provide strong isolation to support reliable high-speed uplink and downlink performance for real-time streaming use cases.

Typical applications include:

• Next Generation OEM Automotive Connectivity
• Multimedia, Navigation and Telematics Systems
• V2V, V2X and Fleet Management Applications
• First Net Responder Routers

Connections

2x 5G/4G MIMO 600-6000MHz
1x GNSS

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP65
Impedance: 50 Ω
VSWR: <2:1
Dimensions: 247 * 144.3 * 52.8 mm RoHS & Reach Compliant
Weight: 550 g
Material: PC+ABS

5G/4G MIMO

Quantity: 2x
Frequency: 617-698 MHz, 698-824 MHz, 824-960 MHz, 1427-1518 MHz, 1710-2200 MHz, 2300-2690 MHz, 3300-5000 MHz, 5150-5925 MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA / NB-IoT / Cat M
Polarization: Linear
Radiation Pattern: Omni-Directional
Max Input Power: 10W
Gain (Max): 7.08 dBi
Connector Type: SMA(M) Straight
Cable Length: 300cm
Cable Type: TGC200

GNSS

Standards: GNSS
Polarization: RHCP
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
