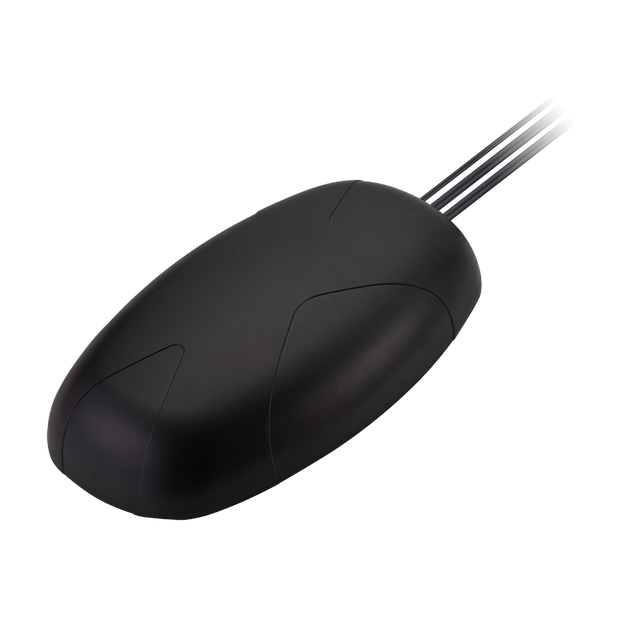

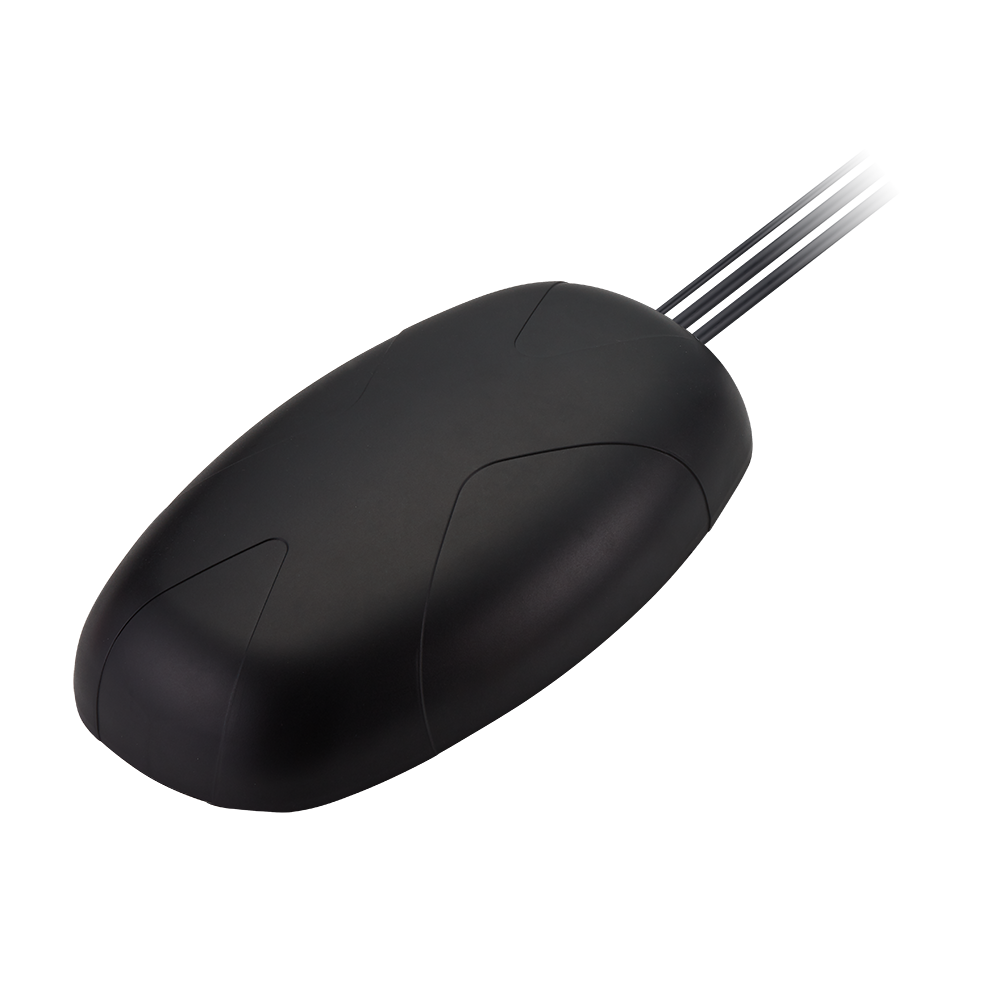

MA352.A.LBI.001 Antenna External Low Profile Outdoor MIMO 5G, GNSS magnetic mount Steedan 3-in-1 for Next Generation OEM Automotive Connectivity, Multimedia, Navigation and Telematics Systems, V2V, V2X and Fleet Management Applications

Steedan is a next-generation, low-profile 3-in-1 magnetic-mount combination antenna designed for vehicle, outdoor building, and heavy equipment roof installations where drilling through a metal panel is not feasible.

The rugged, waterproof enclosure supports high-performance MIMO for wideband cellular connectivity and an integrated active GNSS antenna for reliable positioning. Ultra-strong magnets enable fast placement on steel surfaces, while the soft foam base helps protect the mounting surface during installation and removal.

• Low-profile magnetic-mount housing for quick, non-invasive installation
• Wideband cellular MIMO for high-throughput uplink/downlink performance
• Integrated active GNSS for multi-constellation location services
• Rugged IP-rated enclosure suitable for demanding outdoor/vehicle environments

Connections

2x 5G/4G MIMO 600-6000MHz
1x Active GNSS (GPS/GLONASS/Galileo/BeiDou)

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO, Patch
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Type: Combination
IP Rating: IP65
Impedance: 50Ω
VSWR: 2:1
Gain (Max): 7.48
Dimensions: 247 * 144.3 * 52.8 mm RoHS & Reach Compliant
Weight: 550 g

5G/4G MIMO

Frequency: 600MHz - 6000MHz
Standards: 5G NR / 4G LTE / 3G / 2G / NB-IoT / Cat-M
Polarization: Linear
Radiation Pattern: Omni-Directional
Max Input Power: 10W
Connector Type: SMA(M)ST
Cable Length: 300cm
Cable Type: TGC-200

GNSS (Active)

Frequency: 1561-1602 MHz (1561 / 1575.42 / 1602 MHz)
Standards: GPS / GLONASS / Galileo / BeiDou
Polarization: RHCP
Impedance: 50Ω
Return Loss: <-10 dB
LNA Gain (Typ.): 30 dBic @ 3.0V
Connector Type: SMA(M)ST
Cable Length: 300cm
Cable Type: RG-174

Download Datasheet PDF
