MA353.A.LBC.001 Antenna Outdoor External MIMO 5G, GNSS, Wi-Fi 6E/7 magnetic mount Steedan 3-in-1 for Next Generation OEM Automotive Connectivity, Multimedia, Navigation and Telematics Systems, V2V, V2X and Fleet Management Applications

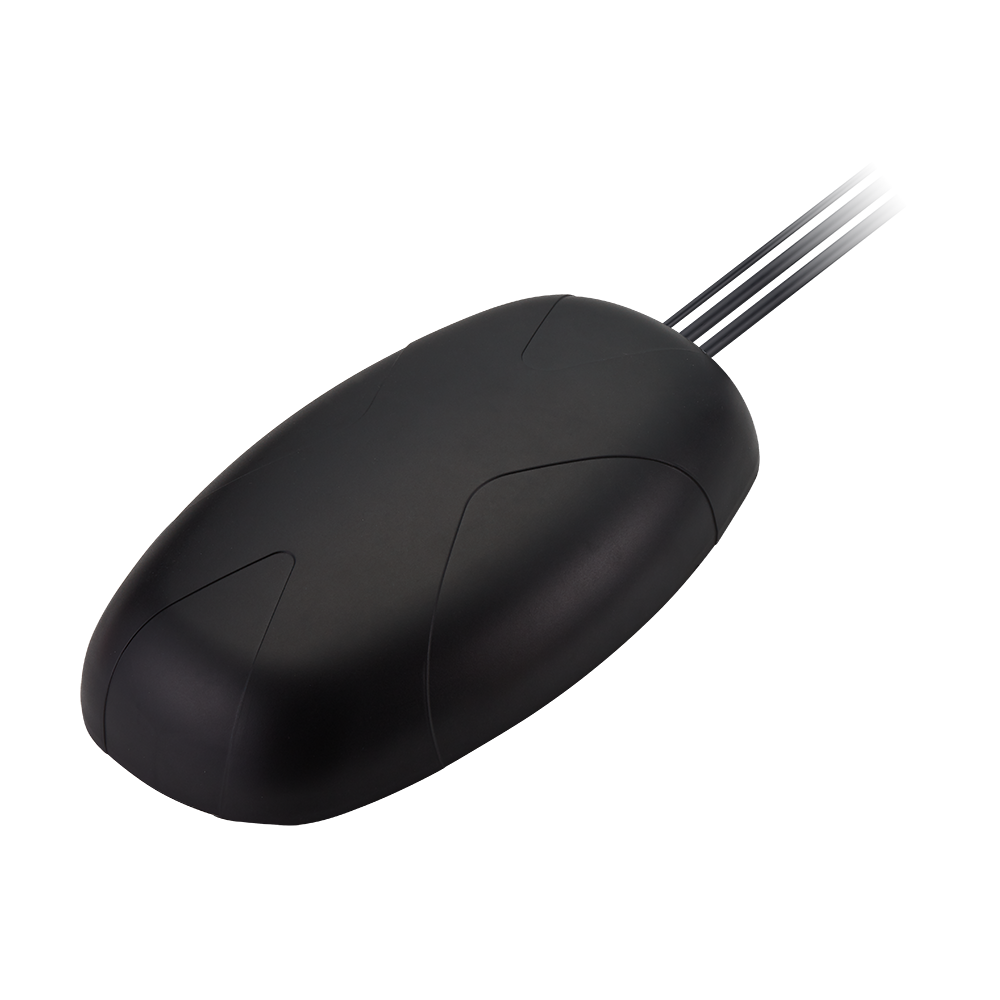

Steedan is a low-profile 3-in-1 magnetic mount combination antenna designed for vehicle, outdoor building, and heavy equipment roof applications where drilling through panels is not feasible. It mounts to steel surfaces using ultra-strong neodymium magnets, while a soft foam cushion on the base helps protect the mounting surface during installation and removal.

This antenna integrates 5G/4G cellular performance (with backward compatibility for 3G/2G), Wi-Fi (including Wi-Fi 6 band coverage), and a custom-tuned GNSS patch antenna to support reliable connectivity and positioning. The internal antennas are engineered for strong isolation to support simultaneous operation for data and location services.

• Low-profile, ruggedized enclosure for harsh environments
• Magnetic mounting for quick deployment on steel surfaces
• Designed for real-time streaming and high-throughput in-vehicle connectivity

Connections

1x 5G/4G MIMO 600-6000MHz
1x Wi-Fi (including Wi-Fi 6) MIMO 2.4/5.8/7.1GHz
1x GPS-GLONASS-Galileo-BeiDou Antenna

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO, Patch
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Magnetic Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP65
Impedance: 50Ω
Dimensions: 247 * 144.3 * 52.8 mm RoHS & Reach Compliant
Weight: 500g

5G/4G MIMO

Frequency: 600MHz - 6000MHz
Standards: 5GNR/4G/3G/2G, NB-IoT, Cat M
Polarization: Linear
Radiation Pattern: Omni-Directional
Max Input Power: 10W
VSWR: <3.5
Connector Type: SMA(M)ST
Cable Length: 300cm
Cable Type: TGC-200

Wi-Fi (including Wi-Fi 6) MIMO

Frequency: 2400~2500, 5150~5850, 5925~7125 MHz
Standards: Wi-Fi (including Wi-Fi 6)
Polarization: Linear
Radiation Pattern: Omni-Directional
Max Input Power: 10W
Connector Type: RP-SMA(M)ST
Cable Length: 300cm
Cable Type: TGC-200

GNSS

Frequency: 1561-1602 MHz
Standards: GPS/GLONASS/Galileo/BeiDou
Polarization: RHCP
Return Loss (dB): <-10
Passive Antenna Gain at Zenith (dBi): 1
LNA Gain@1.8V (Typ.): 25dBic
LNA Gain@3.0V (Typ.): 30dBic
LNA Gain@5.5V (Typ.): 32dBic
Noise@1.8V (Typ.): 2.7dB
Noise@3.0V (Typ.): 3dB
Noise@5.5V (Typ.): 3.7dB
Power consumption@1.8V (Typ.): 6mA
Power consumption@3.0V (Typ.): 12mA
Power consumption@5.5V (Typ.): 30mA
Impedance: 50Ω
Connector Type: SMA(M)ST
Cable Length: 300cm
Cable Type: RG-174

Download Datasheet PDF
