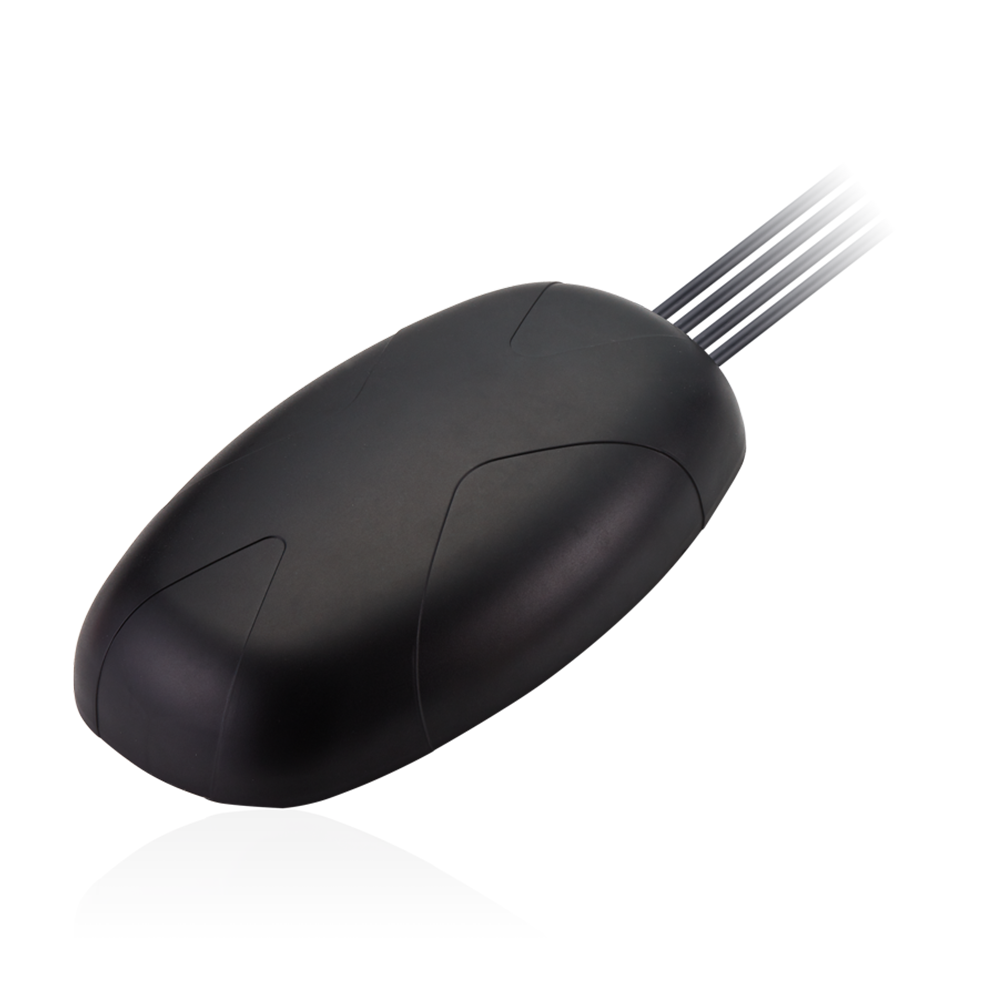

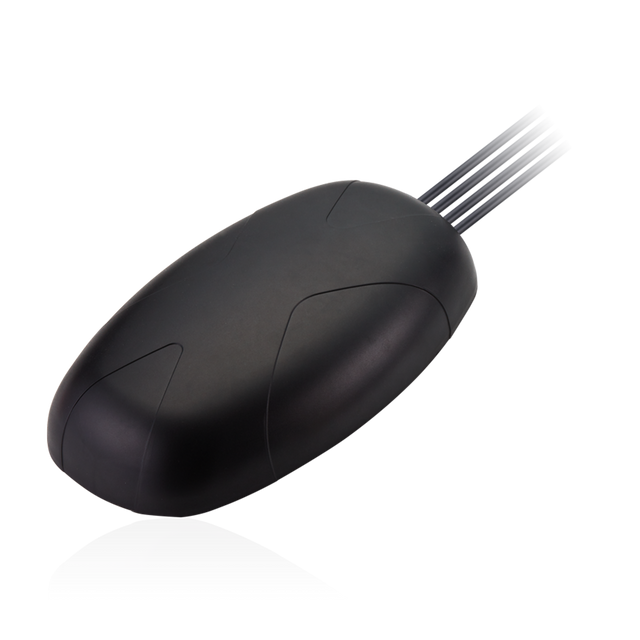

MA354.A.BICG.001 Antenna Low-Profile Outdoor 5G, Wi-Fi 6 magnetic mount 4-in-1 Steedan IP65 for Next Generation OEM Automotive Connectivity, Multimedia, Navigation and Telematics Systems, V2V, V2X and Fleet Management Applications

Steedan MA354 is a next-generation, low-profile 4-in-1 magnetic mount combination antenna designed for vehicle, outdoor building, and heavy equipment roof installations where drilling through the mounting surface is not feasible.

The rugged enclosure is IP65 rated and uses ultra-strong magnets for quick placement on steel surfaces. A soft foam cushion on the base helps protect the mounting surface during installation and removal.

The internal antenna system is engineered for strong MIMO performance and high isolation, supporting cellular connectivity alongside Wi-Fi for high-throughput, real-time streaming and in-vehicle data applications.

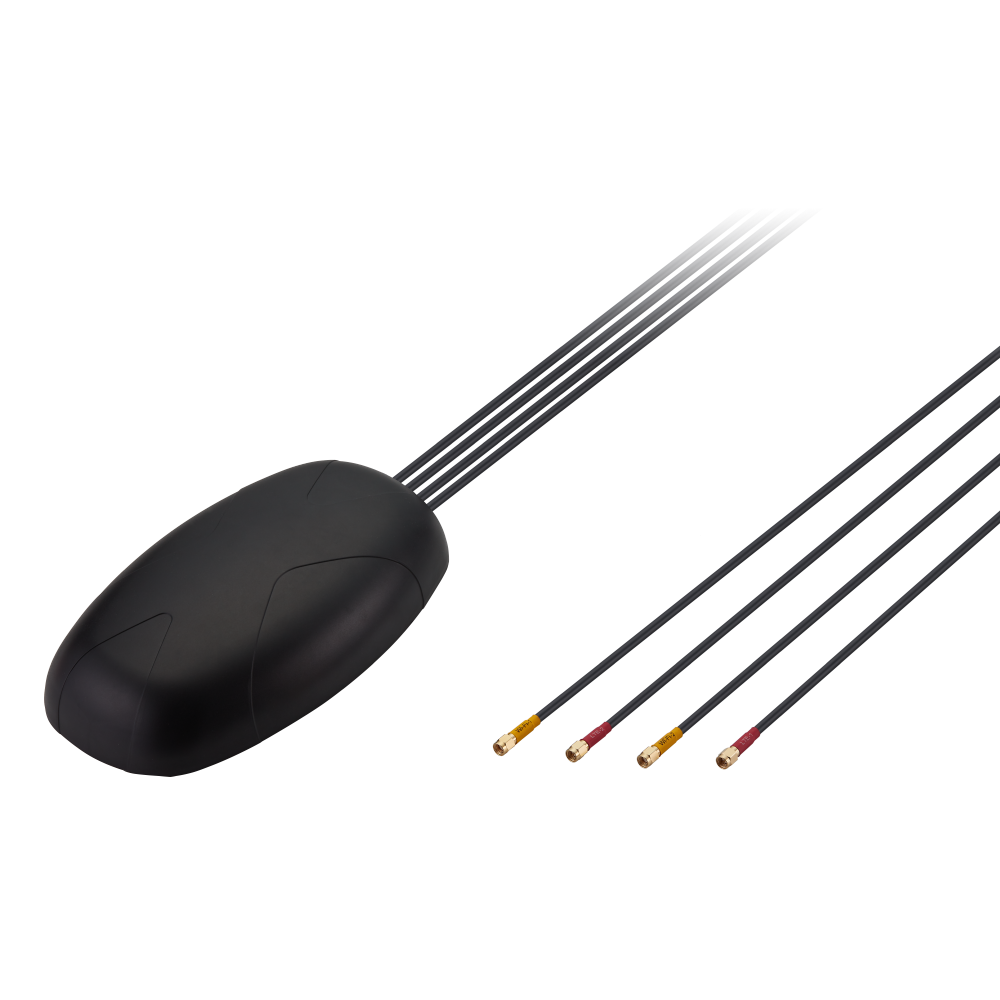

Connections

2x 5G/4G MIMO 600-6000MHz
2x Wi-Fi 6 MIMO 2.4GHz/5.8-7.125GHz

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: MIMO
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Magnetic Mount
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP65
Impedance: 50Ω
Polarization: Linear
VSWR: <3.5
Gain (Max): 5.07
Dimensions: 247 * 144.3 * 52.8 mm RoHS and Reach Compliant
Weight: 550 g

5G/4G MIMO (2x)

Frequency: 600MHz - 6000MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA / 3G / 2G, NB-IoT, Cat M
Max Input Power: 10W
Radiation Pattern: Omni-Directional
Connector Type: SMA(M)ST
Cable Length: 300cm
Cable Type: TGC200

Wi-Fi 6 MIMO (2x)

Frequency: 2400~2500, 5150~5850, 5925~7125 MHz
Standards: Wi-Fi (including Wi-Fi 6)
Max Input Power: 10W
Radiation Pattern: Omni-Directional
Connector Type: RP SMA(M)ST
Cable Length: 300cm
Cable Type: TGC200
