MA412.A.BI.001 Antenna External 2xMIMO 4G/LTE screw mount Storm IP67 for HD Video over LTE, First Responder and Emergency Services, Intelligent Transport Systems, Internet of Things (IoT market)

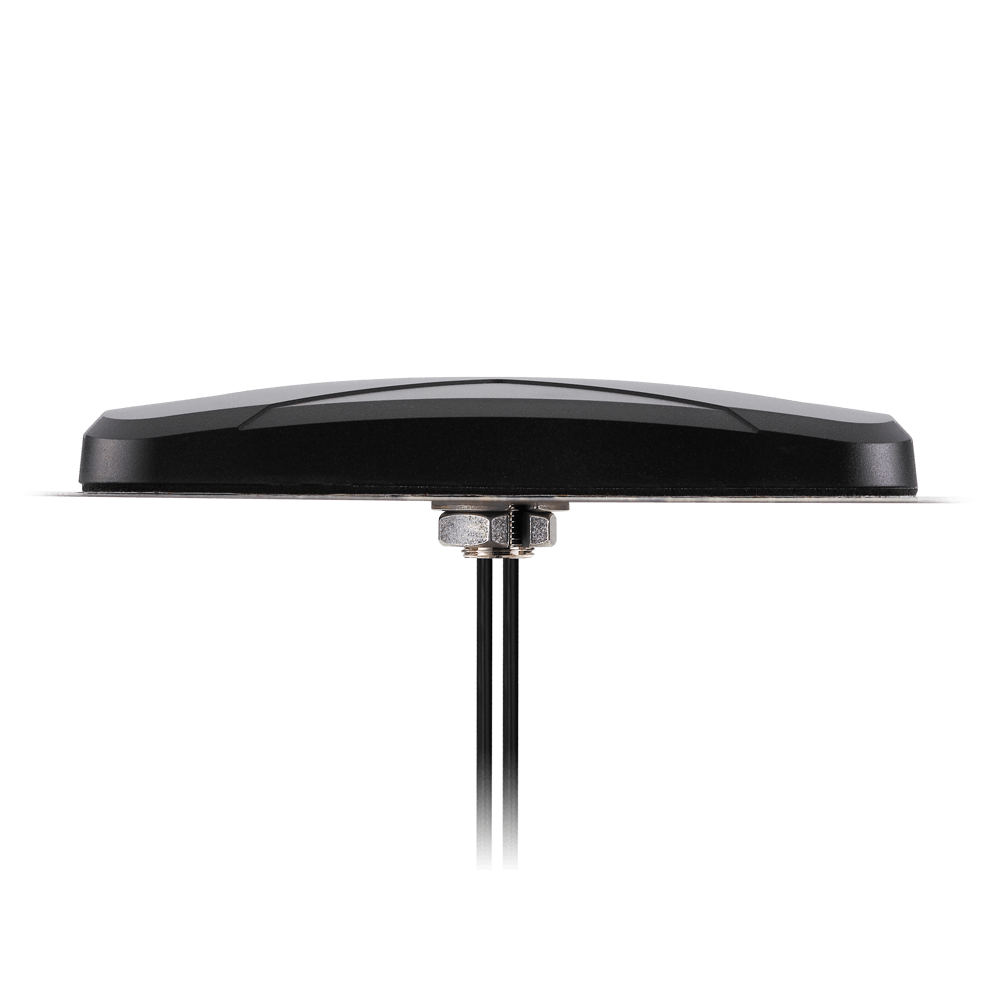

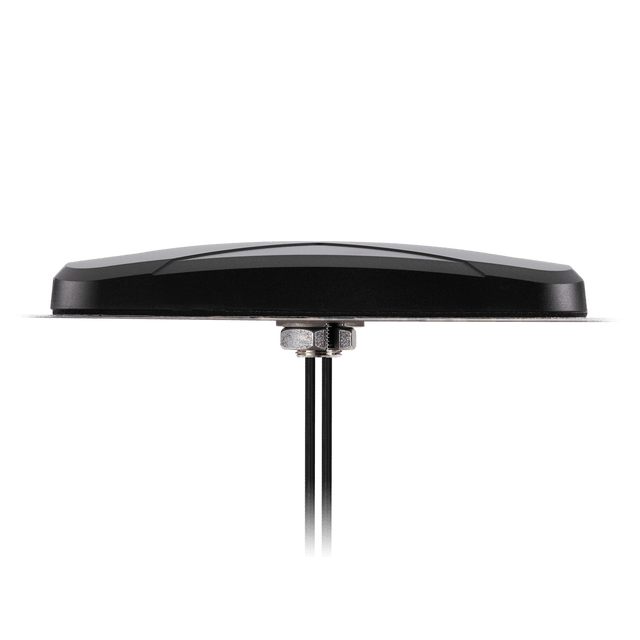

Storm MA412 is a low-profile, heavy-duty external LTE MIMO antenna designed for demanding telematics and M2M deployments where reliable cellular throughput is critical. Its rugged, aerodynamic housing is built for long-term outdoor exposure, while the MIMO design helps improve data performance by supporting uplink and downlink diversity.

• External, low-profile permanent screw-mount design for robust installations
• IP67-rated enclosure for harsh environments
• MIMO performance to help improve throughput and reliability in cellular data applications
• No ground plane required for installation flexibility

Typical applications include:

• HD Video over LTE
• First Responder and Emergency Services
• Intelligent Transport Systems
• Internet of Things (IoT market)
• High Definition Video Broadcast Systems
• Wireless LTE MIMO M2M Devices
• Digital Signage

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Screw Mount
Type: Combination
IP Rating: IP67
Dimensions: 216.24*93.25*30.95mm
Weight: 400g
Impedance: 50Ω
Polarization: Linear
VSWR: < 3.5
Gain (Max): 5

4G/3G/2G LTE MIMO (MIMO1)

Frequency: 698~803MHz, 824~894MHz, 880~960MHz, 1710~1880MHz, 1850~1990MHz, 1920~2170MHz, 2490~2690MHz, 3300~3600MHz
Standards: 4G/3G/2G LTE MIMO
Connector Type: Fakra (Jack)
Cable Length: 30cm
Cable Type: CFD-200

4G/3G/2G LTE MIMO (MIMO2)

Frequency: 698~803MHz, 824~894MHz, 880~960MHz, 1710~1880MHz, 1850~1990MHz, 1920~2170MHz, 2490~2690MHz, 3300~3600MHz
Standards: 4G/3G/2G LTE MIMO
Connector Type: Fakra (Jack)
Cable Length: 30cm
Cable Type: CFD-200
