Description

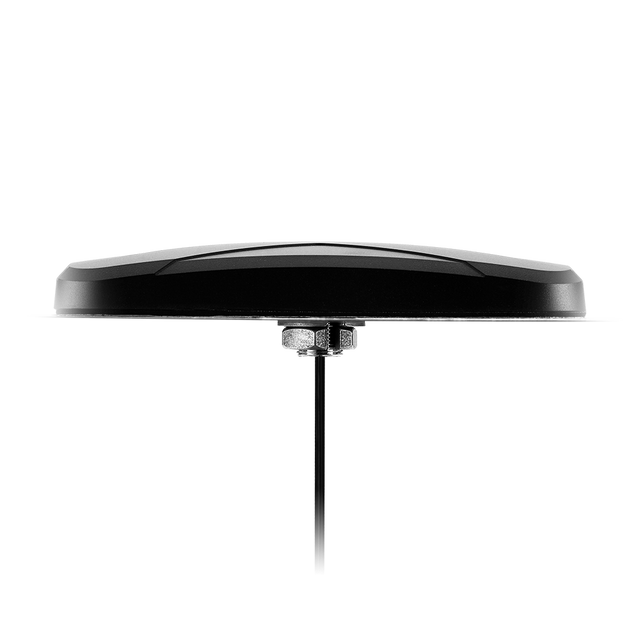

Storm MA413 is a super low-profile, heavy-duty external antenna designed for worldwide cellular connectivity in demanding telematics and M2M deployments. Its rugged, vandal-resistant, IP67-rated housing is built to keep devices connected in harsh environments while supporting a wide range of cellular bands.
- Wideband cellular coverage: Designed to support global 5G/4G operation while also covering legacy 3G/2G.
- Rugged low-profile design: Aerodynamic, heavy-duty construction for reliable performance in the field.
- Ideal for telematics and M2M: Built for high-speed data uplink and downlink use cases.
- Ground-plane independent: Does not require a ground plane.
Typical applications include: Transportation, Telematics, HD Video Streaming/HD Video over LTE, First Responder and Emergency Services, Internet of Things (IoT market), Wireless M2M Devices, and Digital Signage.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: CFD200
Technical Specifications
Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Screw Mount, Permanent Mount
Type: Single
IP Rating: IP67
Frequency: 600MHz - 6000MHz
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Dimensions: 216.24*93.25*30.95mm
Weight (including cable): 500g
Gain (Max): 4.45
Cable Length: 3000mm
Cable Type: TGC-200
Connector Type: SMA Male connector
