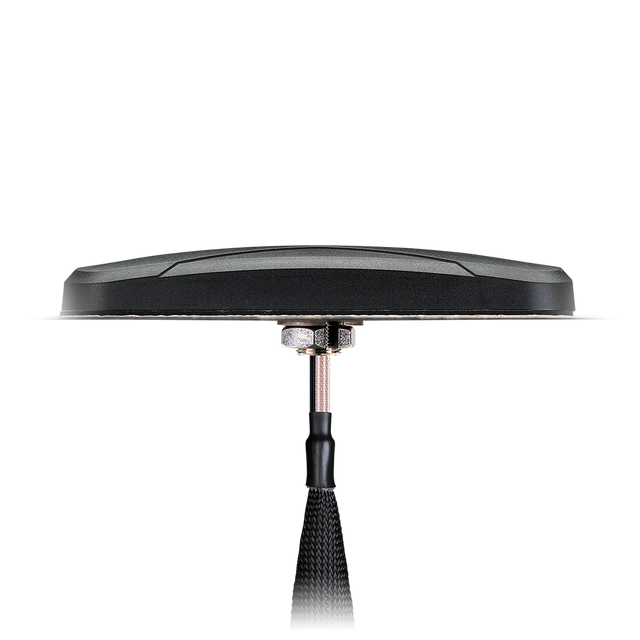

MA450.K.LBICG.003 Antenna External Low-Profile 4G/LTE, GNSS, Wi-Fi screw mount Storm 5-in-1 for Internet of Things (IoT) Gateways and Routers, Remote Asset and Pipeline Monitoring, HD Video over LTE, First Responder and Emergency Services

The Storm MA450 is a rugged, low-profile 5-in-1 external antenna designed to deliver strong performance for cellular, GNSS positioning, and Wi-Fi connectivity in demanding environments. Its heavy-duty aerodynamic housing is built for long-term deployments where reliability, throughput, and location accuracy matter.

• Multi-function 5-in-1 design: supports cellular MIMO, dual-band Wi-Fi MIMO, and multi-constellation GNSS.
• Low-profile, heavy-duty housing: designed for robust installations where vandal resistance and durability are important.
• High-throughput connectivity: MIMO capability improves data performance and stability for modern connected devices.
• Designed for tracking and positioning: GNSS coverage supports next-generation location accuracy for mobile and fixed assets.

Connections

2x 4G/3G/2G MIMO 698-960MHz/1710-2170MHz/2490-2690MHz/3300-3600MHz
2x Wi-Fi MIMO 2.4GHz/5.8GHz
1x GPS/GLONASS/GALILEO/BeiDou L1

Technical Specifications

Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Screw Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Dimensions: 216.24*93.25*30.95mm
Weight: 1470g

4G/3G/2G LTE (MIMO)

Frequency: 698~803, 824~894, 880~960, 1710~1880, 1850~1990, 1920~2170, 2490~2690, 3300~3600 MHz
Impedance: 50Ω
Polarization: Linear
VSWR: < 3
Envelope Correlation Coefficient: All bands < 0.3
Cable Length: 500cm
Cable Type: CFD-200
Connector Type: SMA(M)

Wi-Fi (MIMO)

Frequency: 2400~2500, 4900~5850 MHz
Impedance: 50Ω
Polarization: Linear
VSWR: < 2
Envelope Correlation Coefficient: 2400-2500MHz < 0.3, 4900-5850MHz < 0.3
Cable Length: 500cm
Cable Type: CFD-200
Connector Type: RP-SMA(M)

GNSS (GPS/GLONASS/GALILEO/BeiDou L1)

Frequency: 1561.098±2.046MHz, 1575.42±1.023MHz, 1602±5MHz
Impedance: 50Ω
Polarization: RHCP
VSWR: 2:1 Max
Cable Length: 500cm
Cable Type: RG-174
Connector Type: SMA(M)
