Description

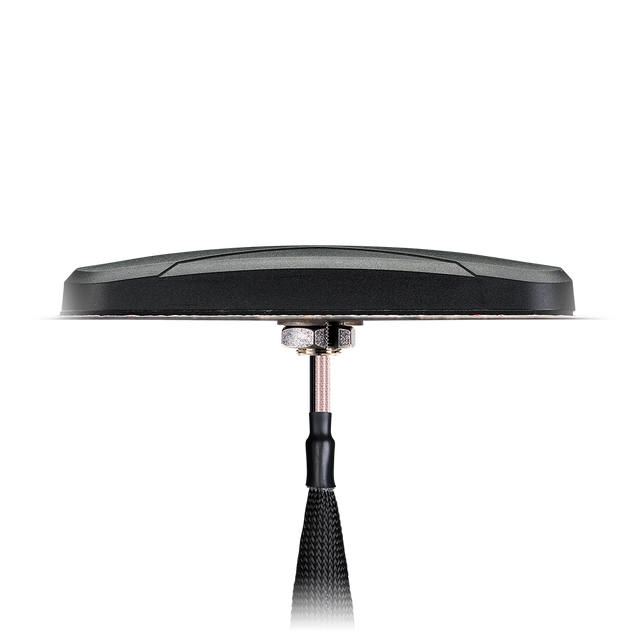

Storm MA450 is a rugged, super low-profile 5-in-1 external antenna designed to deliver reliable multi-network connectivity for telematics and IoT devices. Its heavy-duty, vandal-resistant housing and waterproof construction make it well suited to harsh environments where consistent cellular, GNSS positioning, and Wi-Fi throughput are required.
- 5-in-1 design: integrated cellular MIMO, Wi-Fi MIMO, and GNSS in one low-profile enclosure
- Built for demanding deployments: rugged, waterproof enclosure suited to outdoor/industrial use
- Performance-focused design: MIMO capability to support higher data rates and more robust links
Typical applications include:
- Internet of Things (IoT) Gateways and Routers
- Remote Asset and Pipeline Monitoring
- HD Video over LTE
- First Responder and Emergency Services
- Automotive Vehicle Tracking and Telematics
Connections
2x 4G/3G/2G MIMO 698-960MHz / 1710-2170MHz / 2490-2690MHz / 3300-3600MHz
2x Wi-Fi MIMO 2.4GHz/5.8GHz
1x GPS/GLONASS/GALILEO/BeiDou L1
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: MIMO
Cellular Technologies: 4G/LTE
Location: External
Mounting: Screw Mount, Permanent Mount
Satellite Navigation: GNSS
Short-Range Wireless Standards: Wi-Fi
Type: Combination
IP Rating: IP67
Impedance: 50Ω
Frequency Range: 600MHz - 6000MHz
Dimensions: 216*93*31mm
Weight: 1120g
LTE MIMO (2x)
Frequency: 698~803MHz, 824~894MHz, 880~960MHz, 1710~1880MHz, 1850~1990MHz, 1920~2170MHz, 2490~2690MHz, 3300~3600MHz
Polarization: Linear
Impedance: 50Ω
VSWR: <3
Envelope Correlation Coefficient: All bands <0.3
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: CFD-200
Wi-Fi MIMO (2x)
Frequency: 2400~2500MHz, 4900~5850MHz
Polarization: Linear
Impedance: 50Ω
VSWR: < 2
Envelope Correlation Coefficient: 2400-2500MHz <0.3; 4900-5850MHz <0.3
Connector Type: RP-SMA(M)
Cable Length: 300cm
Cable Type: CFD-200
GNSS L1
Standards: GPS/GLONASS/GALILEO/BeiDou
Frequency: GPS/GALILEO: 1575.42±1.023MHz; GLONASS: 1602±5MHz; BeiDou: 1561.098±2.046MHz
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1 Max
Gain @3V: 1561MHz: 29±3dBi; 1575.42MHz: 29±3dBi; 1602MHz: 32±3dBi
Connector Type: SMA(M)
Cable Length: 300cm
Cable Type: RG-174
